Fuente de alimentación Flex-ATX Akyga AK-I1-200 200 W, PFC pasivo, ventilador de 40 mm, gris

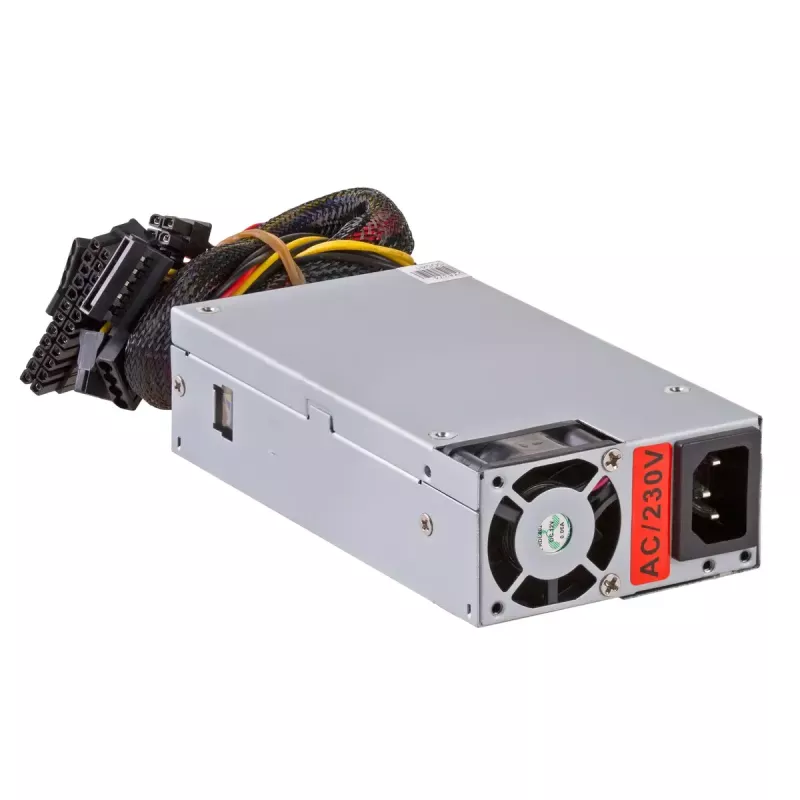

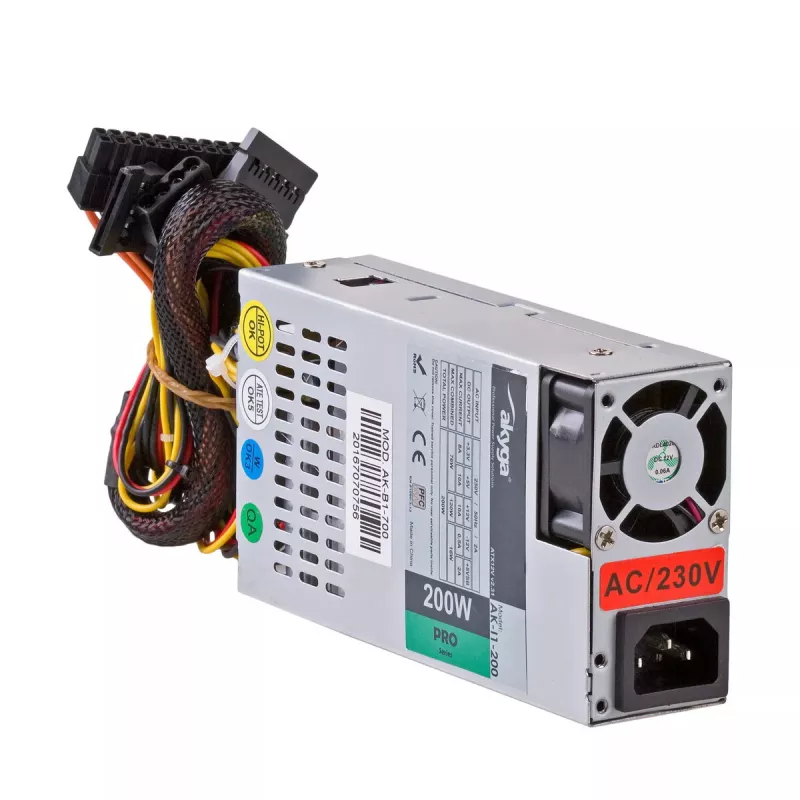

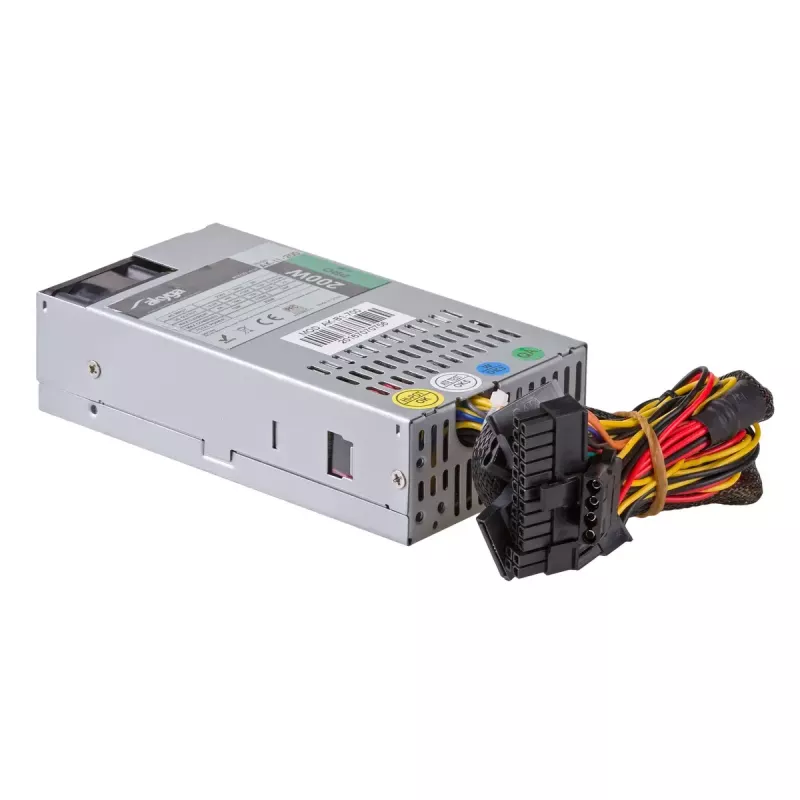

The Akyga AK-I1-200 is a 200 W Flex ATX power supply designed for mini-ITX cases such as 1U case types, and is commonly used in both ITX cases and racks. It features a 40 mm fan with automatic speed control and a passive PFC filter.

Key features

• 200 W total power
• Flex ATX form factor
• Passive PFC
• 40 mm fan with automatic speed control
• Non-modular cabling
• Protection features: short circuit, overheating, over voltage, over power, over current
• Grey colour

Specifications

• Purpose: PC
• Efficiency: 70 %
• AC input voltage: 230 V
• AC input frequency: 50 - 60 Hz

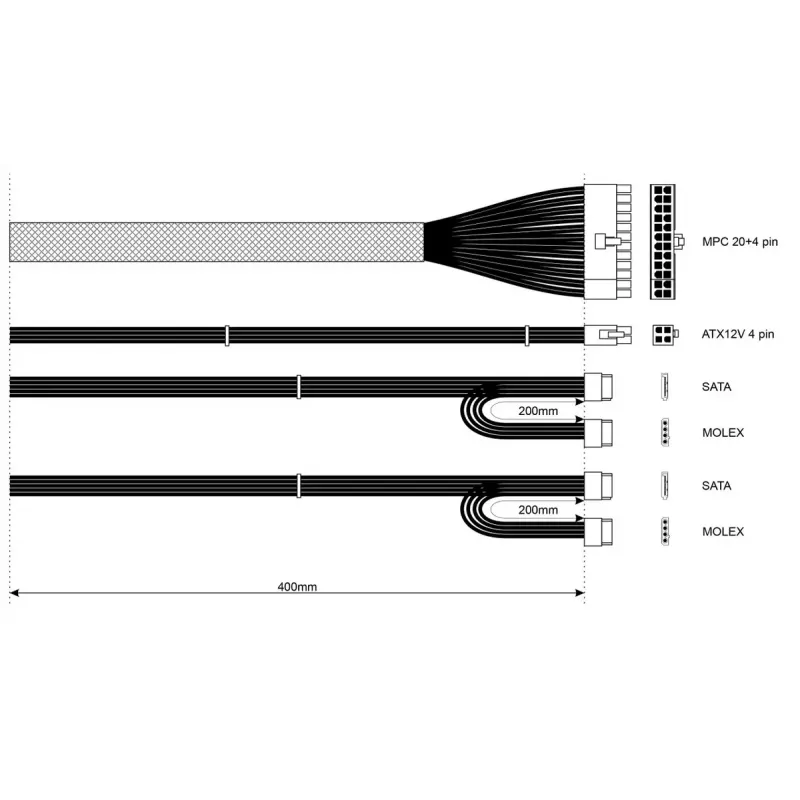

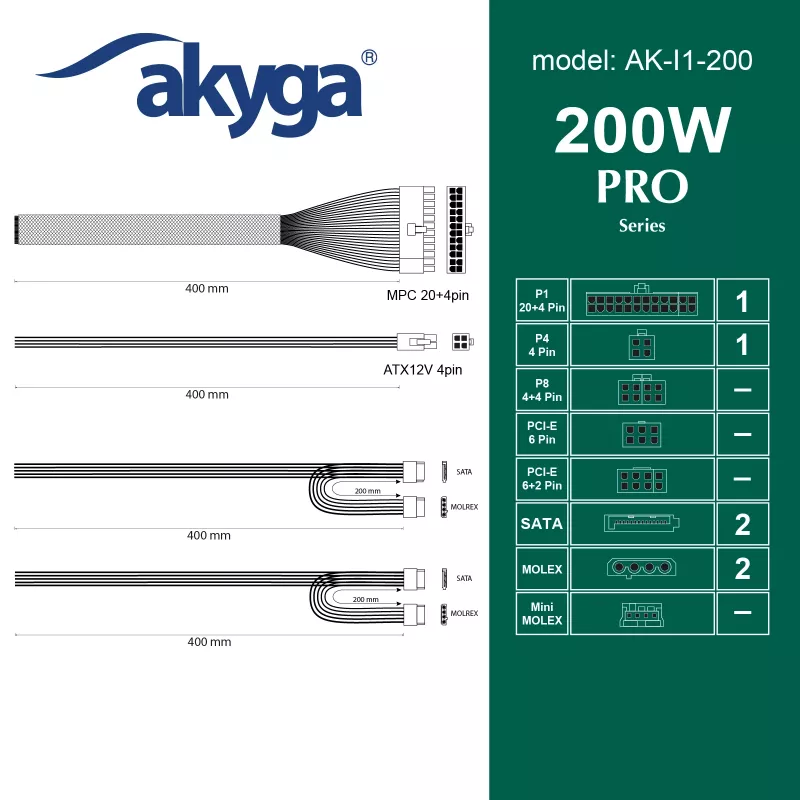

• Motherboard power connector: 24-pin ATX
• CPU P4 connector (4-pin): 1
• Number of SATA power connectors: 2
• Peripheral (Molex) power connectors (4-pin): 2
• Max output current (+3.3V): 8 A
• Max output current (+5V): 10 A
• Max output current (+12V): 10 A
• Combined power (+3.3V): 76 W
• Combined power (+5V): 76 W
• Combined power (+12V): 120 W
• Mean time between failures (MTBF): 100000 h
• Operating temperature (T-T): 5 - 50 °C
• Width: 81.5 mm
• Depth: 150 mm
• Height: 40 mm
• Weight: 0.58 kg
• Certification: CE, RoHS, REACH
• Manual: Yes
