Fuente de alimentación HISMART LRS-600-12 12V 50A 600W

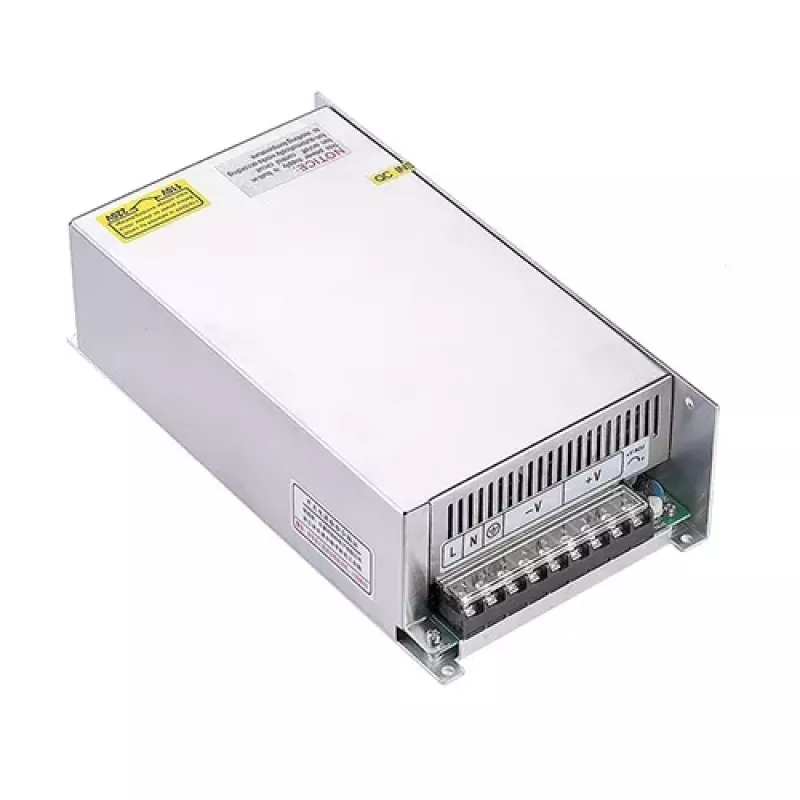

The HISMART LRS-600-12 is a high-performance single output power supply delivering 12V DC at 50A with a total output power of 600W. Designed for industrial and commercial applications, this unit features a compact perforated metal case, built-in cooling fan, and comprehensive protection circuits. It accepts a wide input voltage range of 100-240V AC, making it suitable for global use.

Advantages

Reliable and efficient power conversion with >85% efficiency, ensuring minimal energy loss. The screw terminal connections provide secure and easy wiring. Overload, over voltage, short circuit, and over temperature protections safeguard connected equipment.

Suitable for

• Industrial automation systems
• LED lighting installations
• Security and CCTV systems
• Communication equipment
• General purpose 12V DC power needs

Key specifications

• Output Voltage: 12V DC
• Output Current: 50A
• Output Power: 600W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Cooling: Built-in fan
• Protection: Overload, Over Voltage, Short Circuit, Over Temperature
• Connection: Screw terminals
• Ripple & Noise: <150mVp-p
• Voltage Adjustment Range: ±10%
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriately rated wiring and fuses. This unit is not suitable for outdoor use without additional protection.
