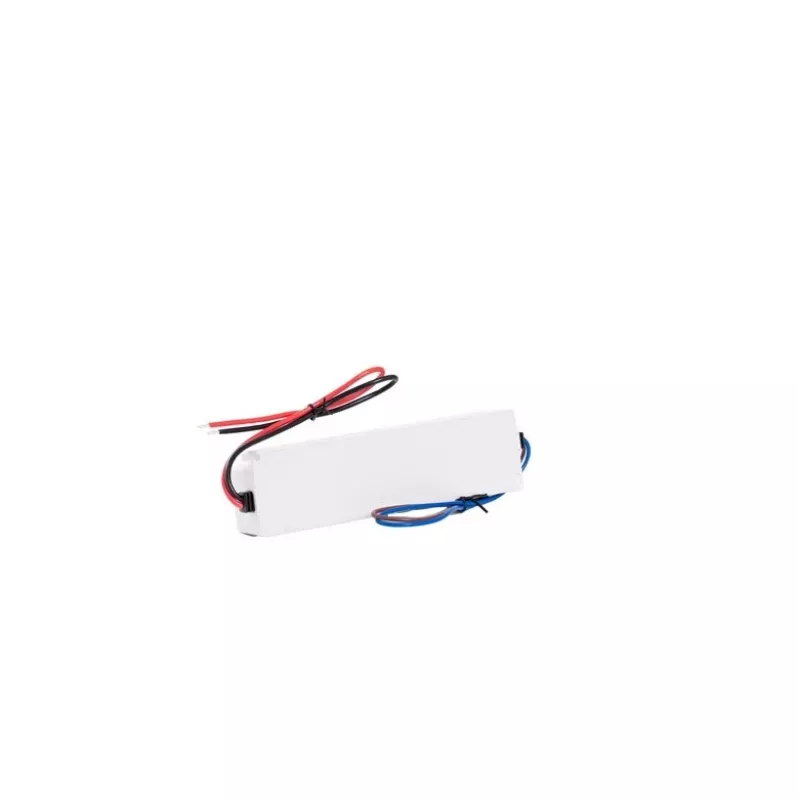

Fuente de alimentación LED MEAN WELL LPV-100-24 de salida única 24V 4,2A 100,8W

LED lighting projects often fail due to unstable power delivery, causing flickering, reduced lifespan, or complete failure of LED modules. The MEAN WELL LPV-100-24 solves this by providing a constant 24V DC output at up to 4.2A, ensuring your LED strips, modules, or fixtures receive clean, reliable power. This single-output LED driver is built for indoor applications where consistent illumination is critical.

Who is it for

This power supply is ideal for electricians, lighting installers, and DIY enthusiasts working on LED lighting installations in residential, commercial, or retail environments. It suits projects requiring a non-dimmable, fixed-voltage driver with moderate power needs, such as under-cabinet lighting, cove lighting, signage, or display cases.

Main features

• Constant voltage output: 24V DC, 4.2A, up to 100.8W
• Wide input range: 100-240V AC, 50/60Hz, suitable for global use
• High efficiency >85% and power factor >0.9 for energy savings
• Built-in protections: overload, short circuit, and over voltage
• Durable aluminum alloy enclosure with free air convection cooling
• IP20 rated for indoor use, operating temperature -20°C to +50°C
• Compact and lightweight design for easy installation
• Certified CE and RoHS compliant

Specifications

• Product type: LED Power Supply / LED Driver
• Output voltage: 24V DC
• Output current: 4.2A
• Output power: 100.8W
• Input voltage: 100-240V AC
• Input frequency: 50/60 Hz
• Efficiency: >85%
• Power factor: >0.9
• Ripple & noise: <150mVp-p
• Start-up time: <1.5s
• Dimming: Non-dimmable
• Protection: Overload, short circuit, over voltage
• IP rating: IP20
• Operating temperature: -20°C to +50°C
• Enclosure material: Aluminum alloy
• Cooling: Free air convection
• Certifications: CE, RoHS

Tips

Ensure the total wattage of your LED load does not exceed 100.8W to avoid overloading the driver. Mount the unit in a well-ventilated area to maintain optimal operating temperature. For outdoor or damp locations, use an additional enclosure to protect the IP20-rated driver from moisture.
