Fuente de alimentación LIAN LI EDGE GOLD 1000 — 1000W, 80 PLUS Gold, PFC activo

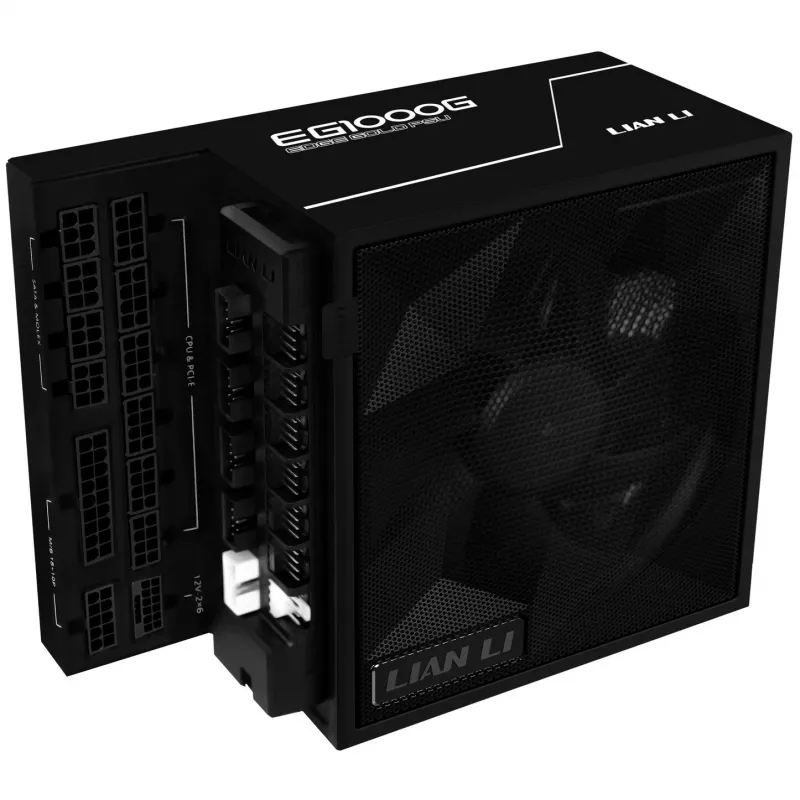

LIAN LI EDGE GOLD 1000 is a 1000 W ATX 3.1 power supply with an L-shape layout designed for dual-chamber and tower cases. It delivers 80 PLUS Gold efficiency and active PFC, and includes a detachable USB hub and PWM fan hub, removable magnetic dust filter, braided fully modular cables with pre-installed cable combs, and industrial-grade EPCOS capacitors for stable operation.

Advantages

The L-shape design allows cleaner cable routing in dual-chamber builds while maintaining compatibility with standard ATX 3.1 mounting. 80 PLUS Gold efficiency reduces wasted energy and heat. The detachable USB hub (four internal USB 2.0 headers) and six PWM fan headers simplify internal connectivity and fan control. Fully modular braided cables with pre-installed combs improve cable management and aesthetics. Key components include German industrial-grade EPCOS capacitors and PCIe 5.1–ready alloy copper soldered terminals for reliable electrical performance.

Suitable for

• High-performance gaming PCs with dual-chamber or tower chassis
• Workstations requiring stable 1000 W power delivery
• Custom builds where neat cable management and internal USB/PWM headers are needed

Key specifications

• Model: EG1000G (EDGE GOLD 1000)
• Power: 1000 Watts
• Form factor / Standard: ATX 3.1
• Efficiency: 80 PLUS Gold
• PFC: Active
• Design: L-shape for dual-chamber/tower cases

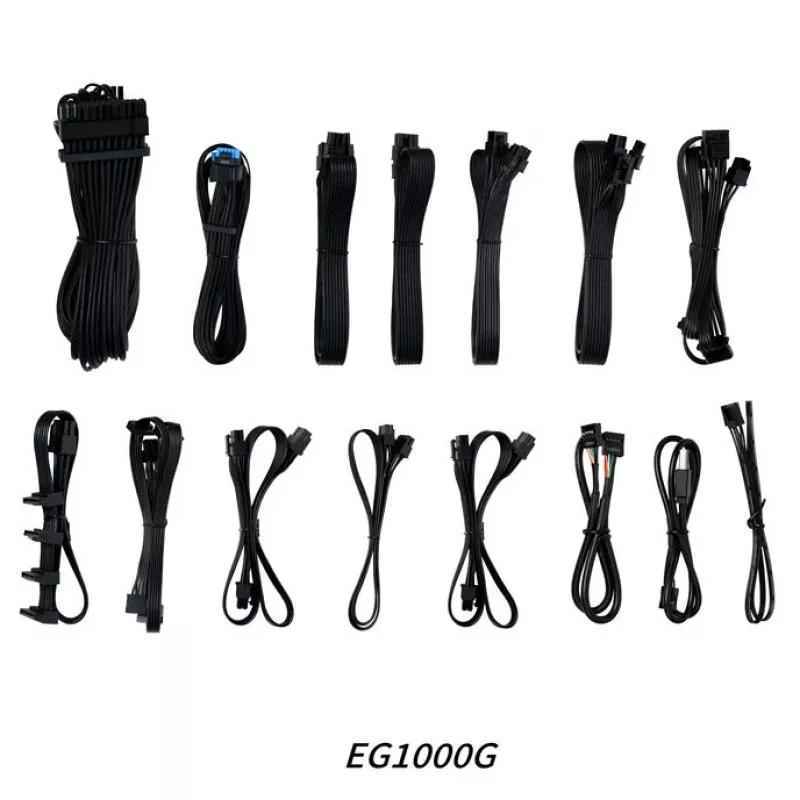

• Cables: Fully modular, braided texture, pre-installed cable combs on MB/CPU/GPU connectors

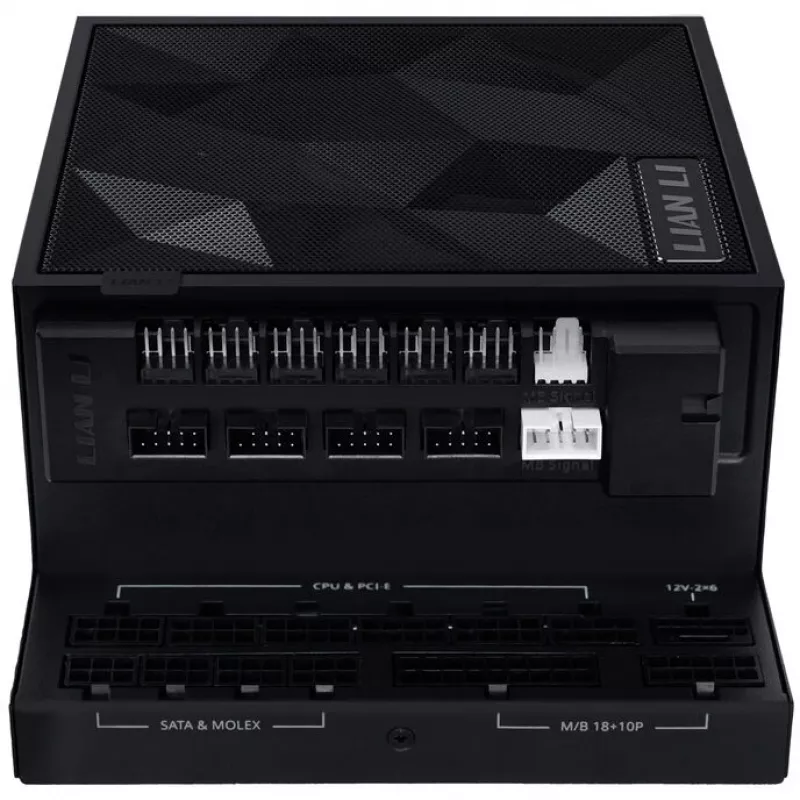

• Connectors: Detachable USB hub with 4 internal USB 2.0 headers; 6 PWM fan headers
• Cooling: 12 cm fan
• Capacitors: Industrial-grade EPCOS (Germany)
• PCIe readiness: PCIe 5.1 ready with 12V-2×6 alloy copper soldered terminals
• Dust filter: Removable magnetic fan dust filter
• Colour: Black
• Dimensions: (D)182 mm × (W)86 mm × (H)150 mm
• Net weight: 2 kg

How to use

Install the EDGE GOLD 1000 into a compatible dual-chamber or tower chassis following standard ATX 3.1 mounting procedures. Connect the required modular cables to the motherboard, CPU and GPU connectors using the braided cables and cable combs for organised routing. Attach the detachable USB hub to available internal headers if additional USB 2.0 connections are needed, and connect case fans to the PWM headers for centralized control. Ensure the dust filter is in place over the fan intake and clean it periodically by removing the magnetic filter.

Recommendations

For reliable operation, use EDGE GOLD 1000 in systems that require up to 1000 W peak power and ensure adequate case airflow. Periodically inspect and clean the removable magnetic dust filter and verify cable connections. When building with high-power GPUs, confirm that your cables and connectors match the GPU manufacturer's power requirements despite the PSU being PCIe 5.1 ready.
