Fuente de alimentación LIAN LI EDGE GOLD 850 – 850 W, 80 PLUS Gold, PFC activo

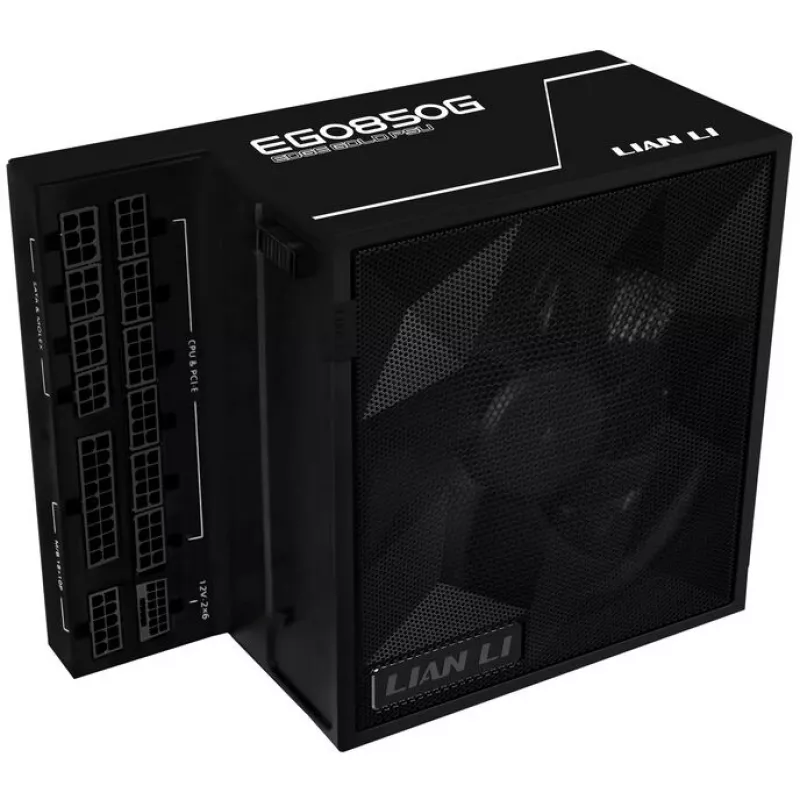

EDGE GOLD 850 power supply with an L-shape design optimized for dual-chamber and tower cases. The unit delivers 850 Watts of continuous power with 80 PLUS Gold efficiency and active PFC. It uses ATX 3.1 standards, a 12 cm cooling fan, braided modular cables, and an L-shape housing to simplify cable routing and improve compatibility in modern chassis.

Advantages

The EDGE GOLD series offers high energy efficiency (80 PLUS Gold), PCIe 5.1 readiness via alloy copper soldered 12V-2×6 terminals, and industrial-grade German EPCOS capacitors for stable operation. Fully modular, braided-texture cables with pre-installed cable combs on motherboard, CPU, and GPU connectors reduce clutter. A detachable USB and fan PWM hub plus a removable magnetic dust filter improve maintenance and system integration.

Suitable for

• Gaming PCs and high-performance desktops requiring up to 850 W
• Systems with dual-chamber or tower-style cases where L-shape layout improves cable management
• Builds using PCIe 5.1 GPUs and modern ATX 3.1 motherboards

Key specifications

• Model: EG0850G (EDGE GOLD 850)
• Output power: 850 Watts
• Efficiency: 80 PLUS Gold
• Form factor / Standard: ATX 3.1

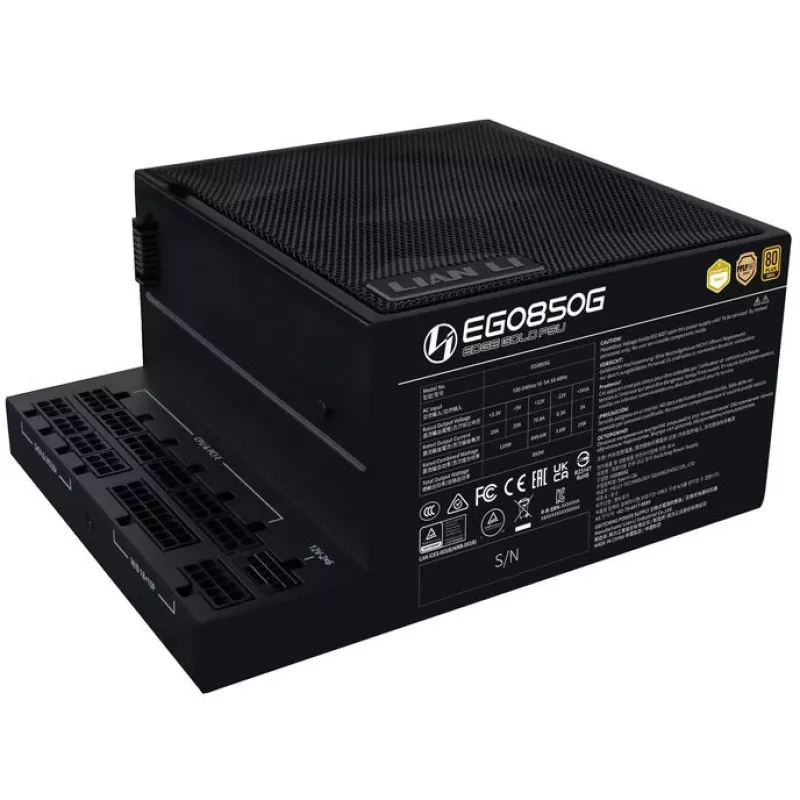

• Design: L-shape

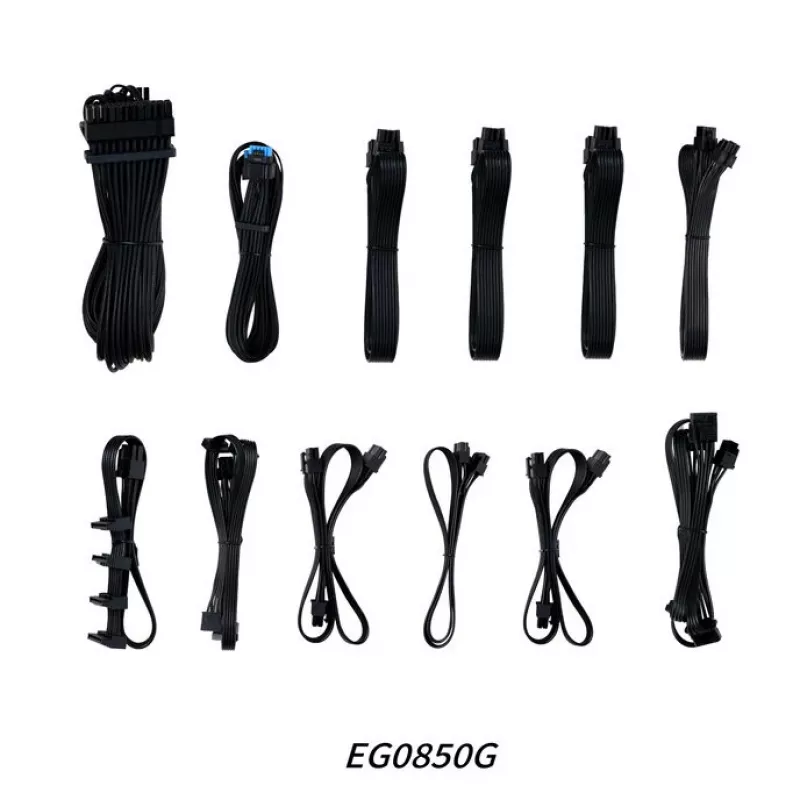

• Cables: Fully modular, braided texture with pre-installed cable combs
• Connectors: PCIe 5.1 ready with in-house 12V-2×6 alloy copper soldered terminals
• Cooling: 12 cm fan
• Capacitors: German EPCOS industrial-grade capacitors
• PFC: Active
• Color: Black
• Dimensions: 182 mm (D) × 86 mm (W) × 150 mm (H)
• Net weight: 2 kg

How to use

Install the EDGE GOLD 850 into a compatible ATX 3.1 or dual-chamber chassis following your case and motherboard manuals. Use the fully modular braided cables to connect the PSU to the motherboard, CPU, GPU and peripherals; attach pre-installed cable combs for cleaner routing. If required, connect the detachable USB hub to the appropriate internal USB 2.0 headers and use the PWM headers for fan control. Ensure adequate airflow and secure the unit with the supplied mounting screws.

Recommendations

For reliable long-term operation, keep the magnetic dust filter clean and allow clearance around the 12 cm fan for airflow. Verify compatibility with system power draw, especially when using PCIe 5.1 GPUs, and follow manufacturer guidelines for cable and connector use.
