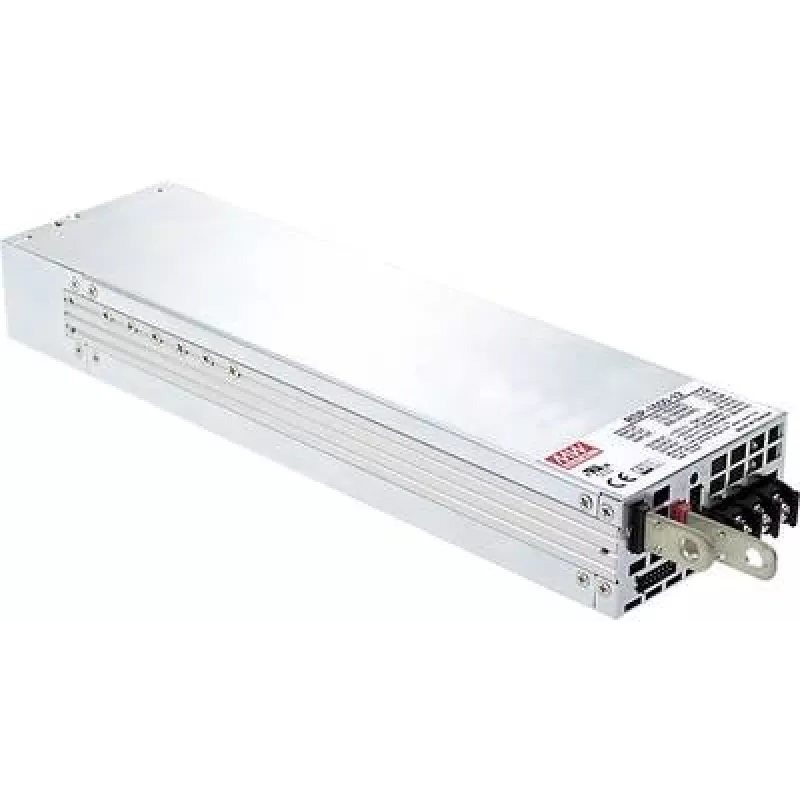

Fuente de alimentación MEAN WELL RSP-1600-24, 1600 W, salida 24 V, entrada 90–264 V

MEAN WELL RSP-1600-24 is an industrial AC-DC single-output power supply that delivers 1600 W continuous power with a 24 V DC output at up to 67 A. Designed in a low-profile 1U form factor, the unit supports a wide AC input range of 90–264 V and integrates power factor correction (PFC) and forced-air cooling for stable operation in confined control cabinets and DIN-rail or open-frame installations. Its compact dimensions (85 × 300 × 41 mm) make it suitable for equipment racks and systems that require a high-density 24 V power source.

Advantages

The RSP-1600-24 provides a high continuous output power density in a compact 1U chassis while maintaining efficient AC-DC conversion through integrated PFC. Forced-air cooling ensures consistent thermal performance under heavy loads, and the enclosed design fits industrial environments where space is limited. RoHS compliance and robust build quality make it appropriate for long-term use in automation and control applications.

Key specifications

• Output voltage: 24 V DC
• Maximum output current: 67 A
• Rated output power: 1600 W continuous
• AC input range: 90–264 V
• Efficiency features: Active power factor correction (PFC)
• Cooling method: Forced-air cooling
• Form factor: Low-profile 1U / enclosed industrial housing
• Dimensions: 85 × 300 × 41 mm
• Compliance: RoHS

How to use

Install the power supply in a suitable enclosure or rack with adequate airflow for the forced-air cooling to operate effectively. Connect the AC input within the 90–264 V range following local electrical codes and ensure proper grounding. Connect the 24 V DC output to the load using appropriately rated cables and secure terminals to handle up to 67 A. Allow space around the unit for ventilation and follow manufacturer guidelines for fuse protection and inrush current handling when integrating into systems.
