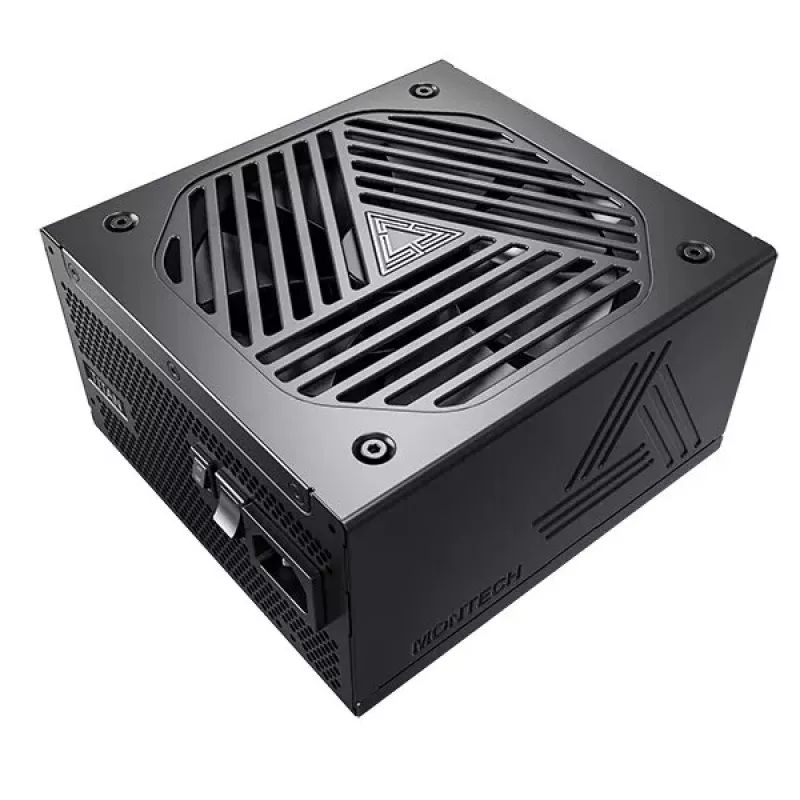

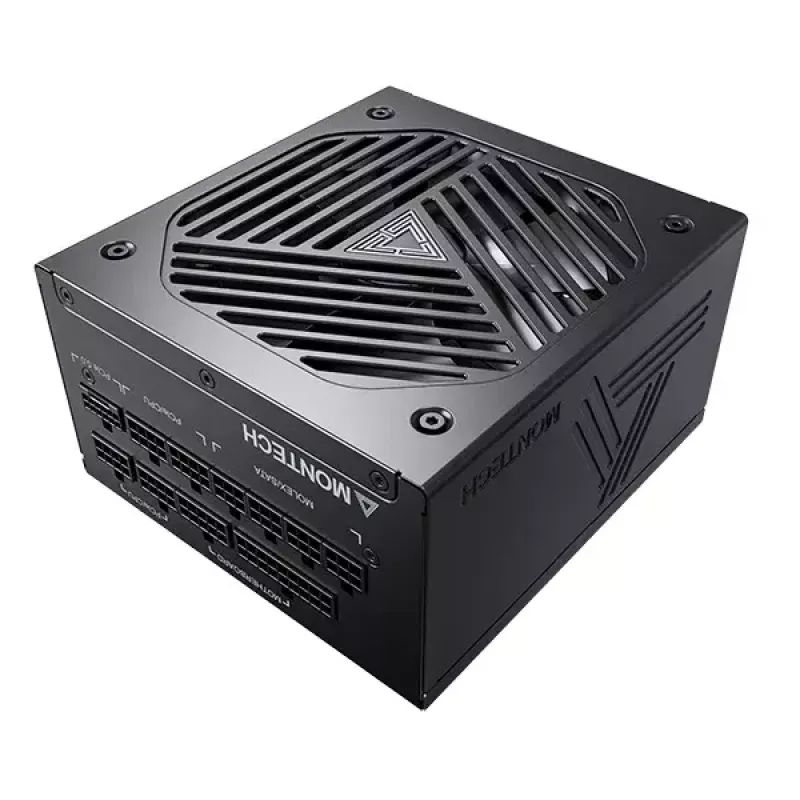

Fuente de alimentación Montech TITAN GOLD 1000W

The Montech TITAN GOLD 1000W power supply unit provides reliable, high-efficiency power for gaming and high-performance PCs. This fully modular PSU supports ATX 3.0 and PCIe Gen 5.0 standards and includes a native 12+4 pin 12VHPWR connector for up to 600W GPU power delivery. With 80 PLUS Gold and Cybenetics Gold certifications, premium Japanese capacitors rated at 105°C, and modern power-topology features, the TITAN GOLD 1000W is designed for stable operation and long-term durability.

Advantages

The TITAN GOLD 1000W combines high energy efficiency (80 PLUS Gold) and Cybenetics Gold noise/efficiency verification with robust build quality such as Japanese 105°C capacitors and dual bulk capacitors. It is ATX 3.0 / PCIe Gen 5.0 ready with a native 12+4 pin connector, supports large power excursions as required by modern GPUs, and uses advanced half-bridge, LLC and Synchronous Rectifier topologies with DC-to-DC conversion for tight voltage regulation and low ripple. A 135 mm fluid dynamic bearing fan with Smart Zero RPM keeps acoustics low, with a maximum reported noise level of 27 dBA at full speed.

Suitable for

• Gaming PCs with NVIDIA GeForce RTX 40-series or other modern GPUs
• High-performance desktops requiring up to 1000 W total power
• Systems needing ATX 3.0 and PCIe Gen 5.0 compatibility
• Builds that prefer fully modular cable management

Key specifications

• Total power: 1000 W
• 80 PLUS certification: 80 PLUS Gold
• Efficiency (typical): ≈90% (maximum above 92% as stated)
• Motherboard connector: 20+4 pin ATX
• GPU connector: native 12+4 pin 12VHPWR (PCIe 5.0 compatible, up to 600 W)

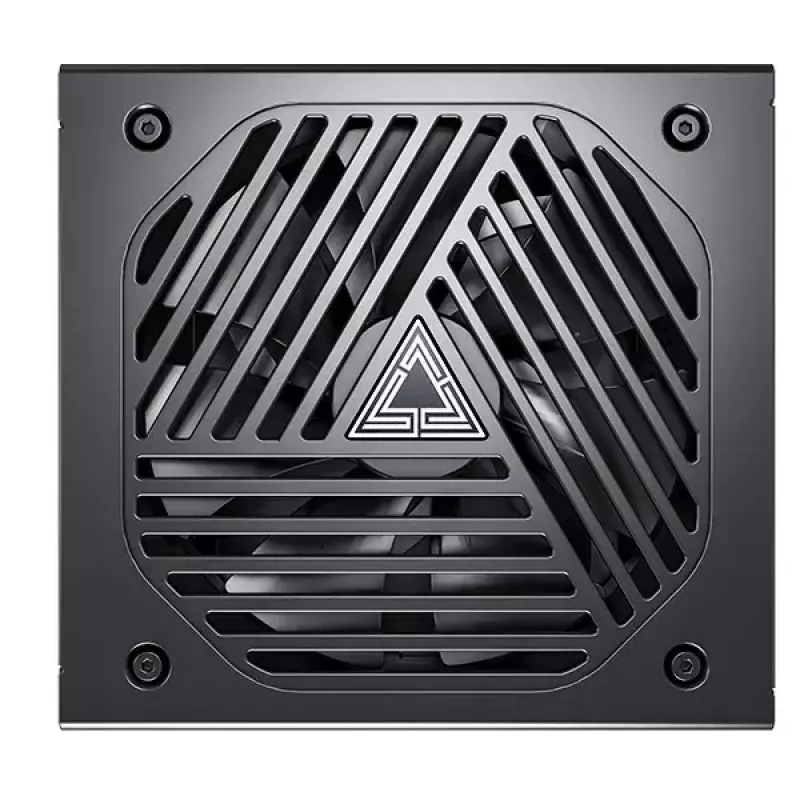

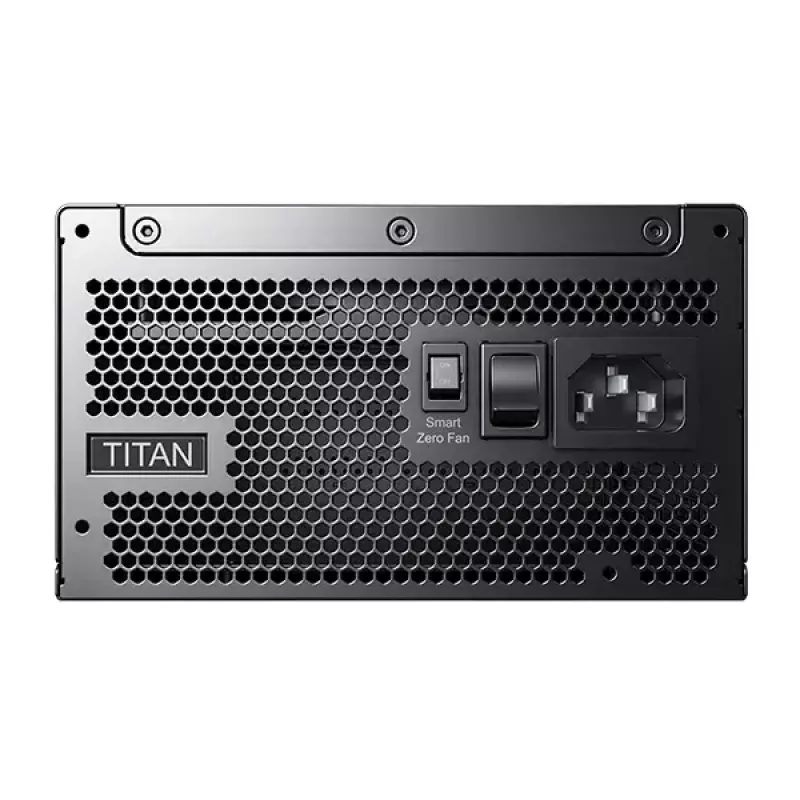

• Fan diameter: 135 mm, fluid dynamic bearing (Smart Zero RPM until ~40% load)
• Certifications: Cybenetics Gold, Cybenetics LAMBDA A (ultra quiet)
• Colour: Black

How to use

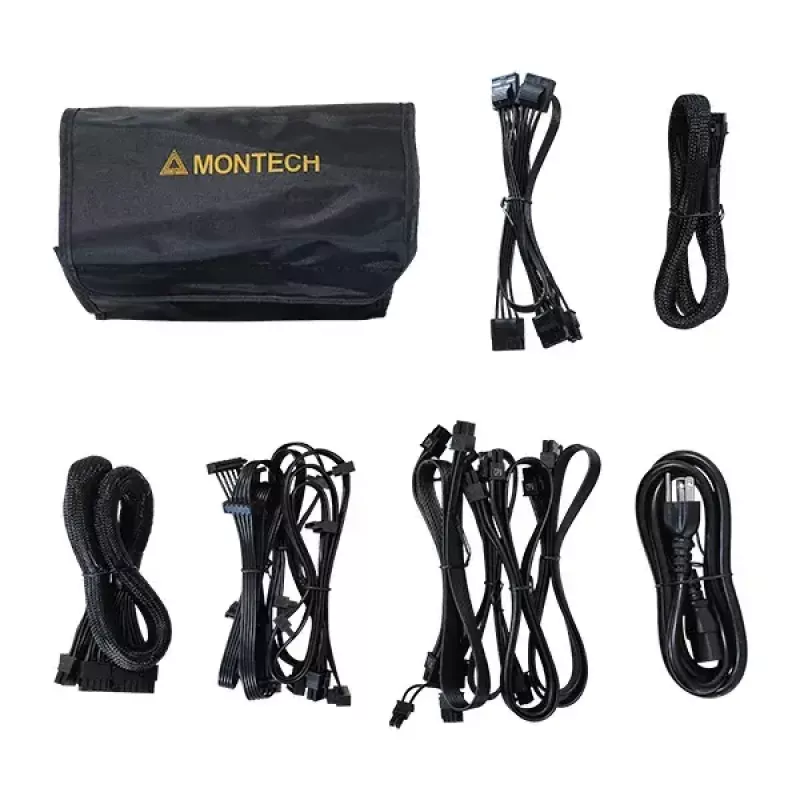

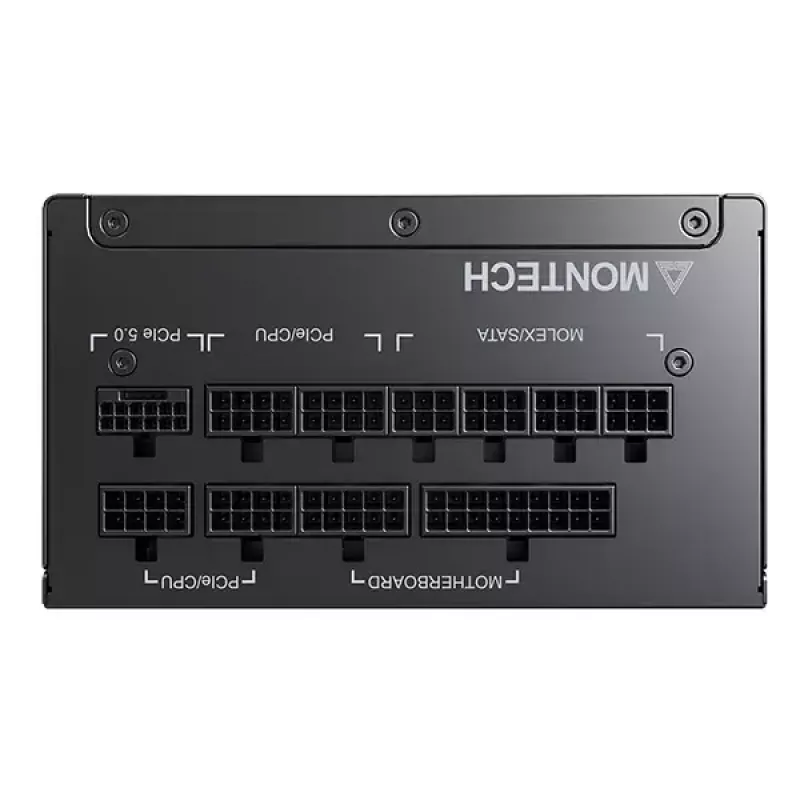

Install the Montech TITAN GOLD 1000W into a compatible ATX chassis following standard PSU mounting orientation. Connect the 20+4 pin ATX cable to the motherboard and use the modular cables provided to link CPU, GPU, SATA drives and other peripherals as required. For GPUs supporting the 12VHPWR connector, use the native 12+4 pin cable to ensure correct power delivery up to the specified wattage. Ensure AC input is within 100–240 V and power on the system only after verifying all connections are secure.

Recommendations

Place the PSU so airflow from the 135 mm fan is unobstructed, use the modular cables for tidy routing, and verify your GPU power requirements before connecting the 12+4 pin 12VHPWR cable. Observe the 10-year warranty and rely on the PSU's protection mechanisms for safe operation.
