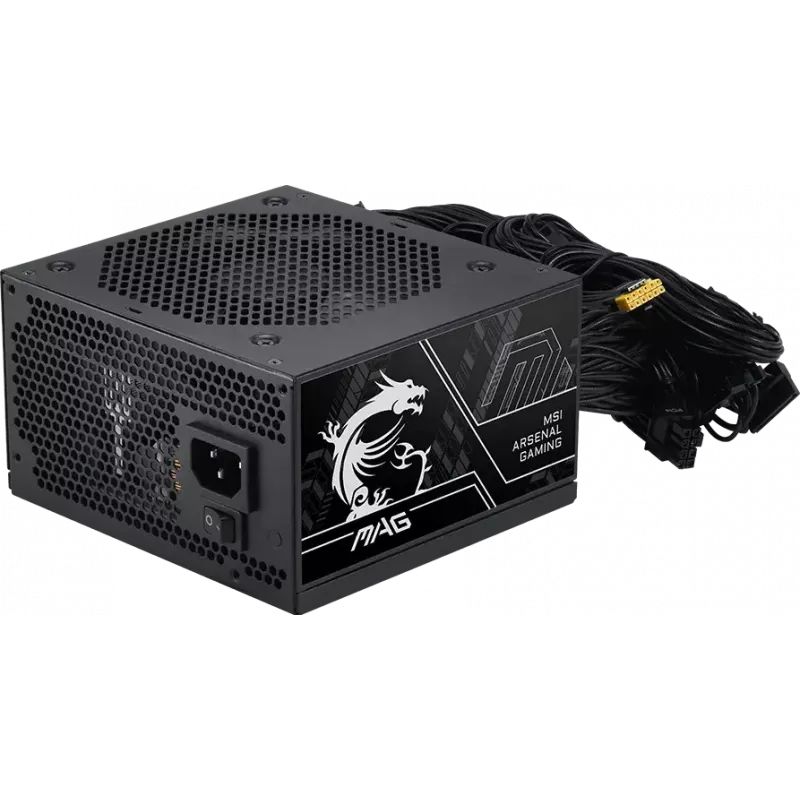

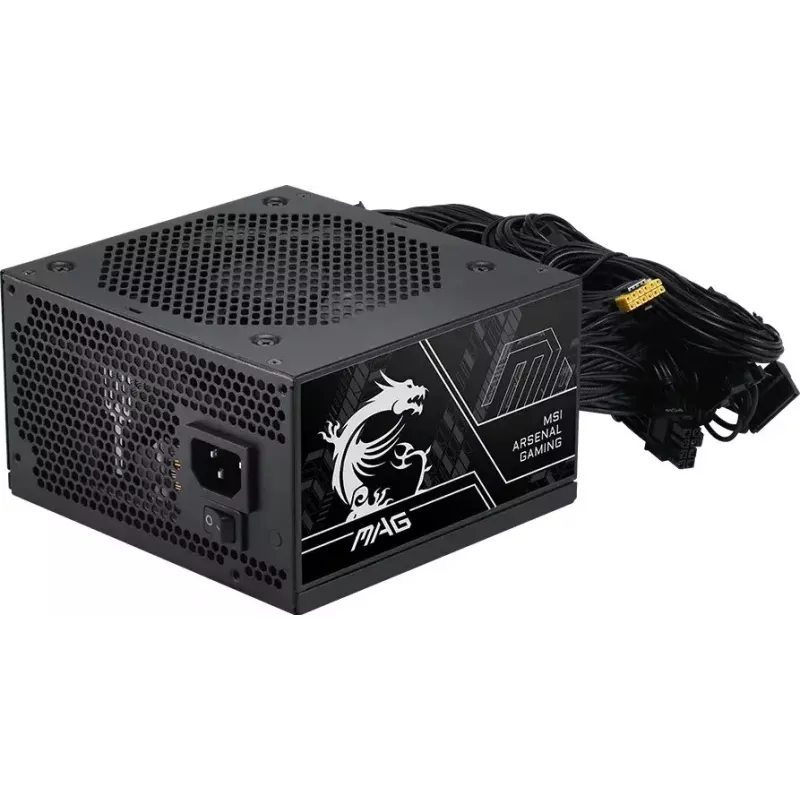

Fuente de alimentación MSI MAG A650BN PCIE5 II 650W ATX 80 PLUS Bronze PCIe 5.1 Ready

The MSI MAG A650BN PCIE5 II is a reliable and efficient 650W ATX power supply, designed for modern gaming and workstation builds. With 80 PLUS Bronze certification and PCIe 5.1 ready connectivity, it delivers stable power and compatibility with the latest graphics cards.

Advantages

High efficiency with 80 PLUS Bronze certification reduces energy waste and heat output. Active PFC ensures stable power delivery. Japanese main capacitor guarantees long-term reliability. Comprehensive protection features (OCP, OVP, OPP, OTP, SCP, UVP) safeguard your components.

Suitable for

• Gaming PCs with mid-range to high-end GPUs
• Workstations requiring stable 650W power
• Systems with PCIe 5.1 graphics cards

Key specifications

• Power Output: 650W
• Efficiency Rating: 80 PLUS Bronze
• Form Factor: ATX
• Modularity: Non-Modular
• PFC Type: Active PFC
• Fan Size: 120mm Sleeve Bearing Fan
• Input Voltage: 100-240V AC
• Input Frequency: 50-60Hz
• Main Power Connector: 1x 20+4-pin ATX
• CPU Power Connectors: 1x 4+4-pin EPS, 1x 8-pin EPS
• PCIe Power Connectors: 1x 12VHPWR (12+4-pin), 2x 6+2-pin PCIe
• SATA Power Connectors: 6x
• Peripheral (Molex) Power Connectors: 2x 4-pin
• Floppy Power Connector: 1x 4-pin
• Protection Features: OCP, OVP, OPP, OTP, SCP, UVP
• MTBF: 100,000 hours
• Operating Temperature: 0-40°C

Recommendations

For optimal performance, pair this power supply with a modern motherboard and PCIe 5.1 compatible GPU. Ensure proper airflow in your case to maintain low operating temperatures.
