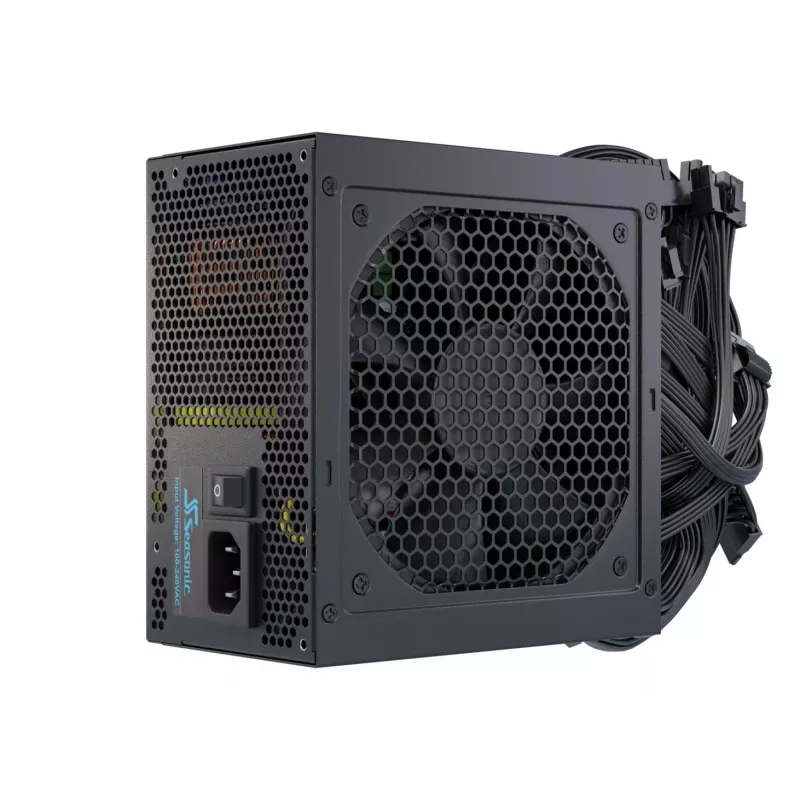

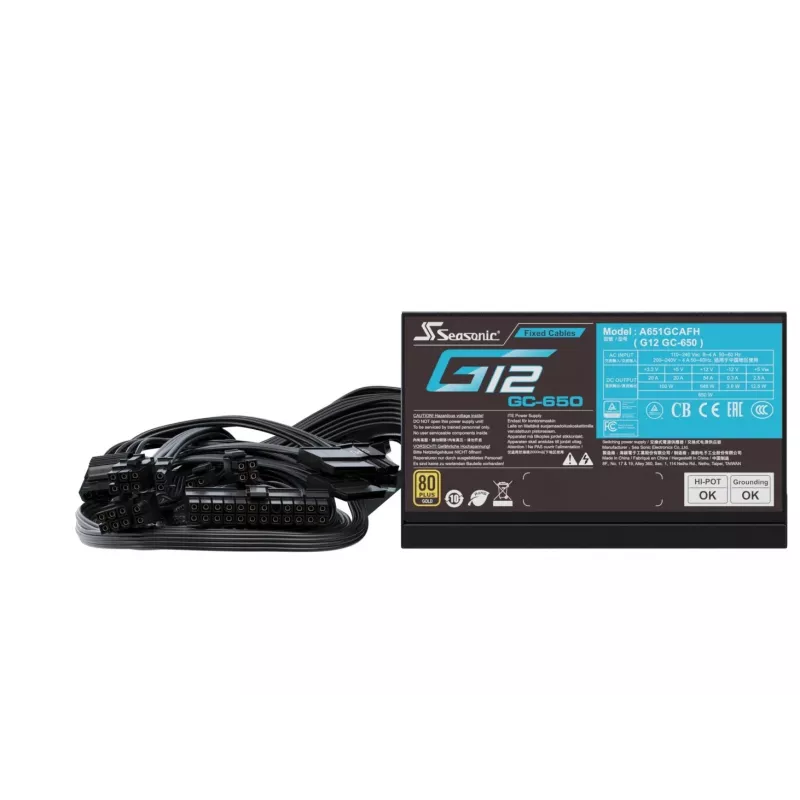

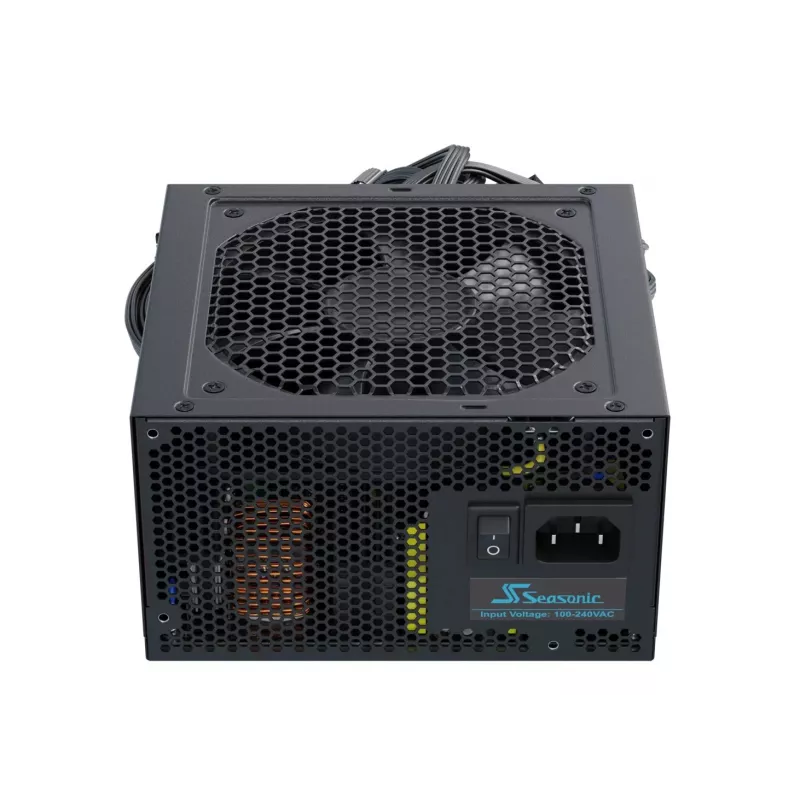

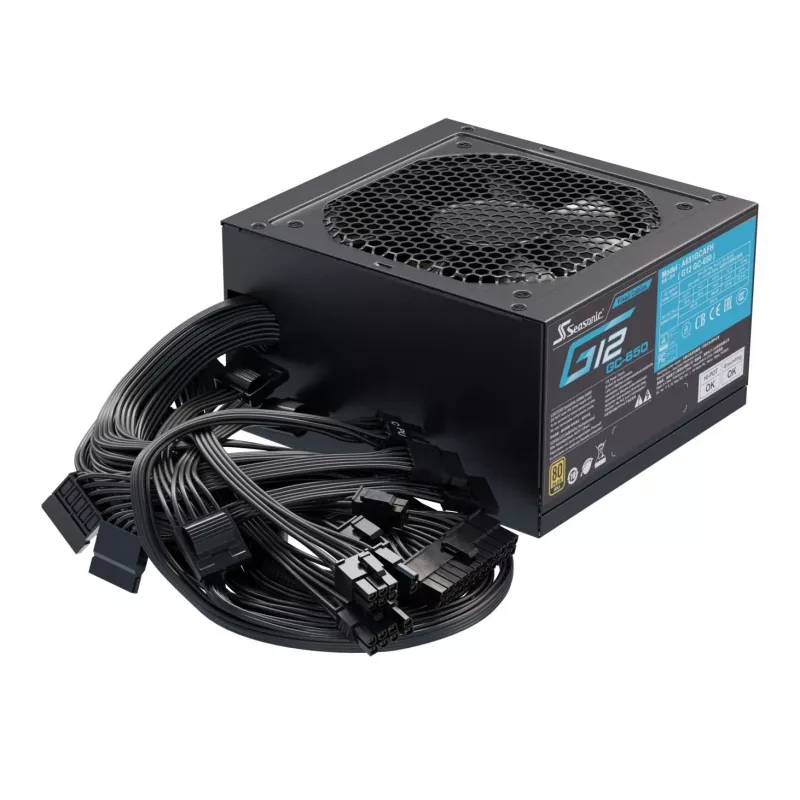

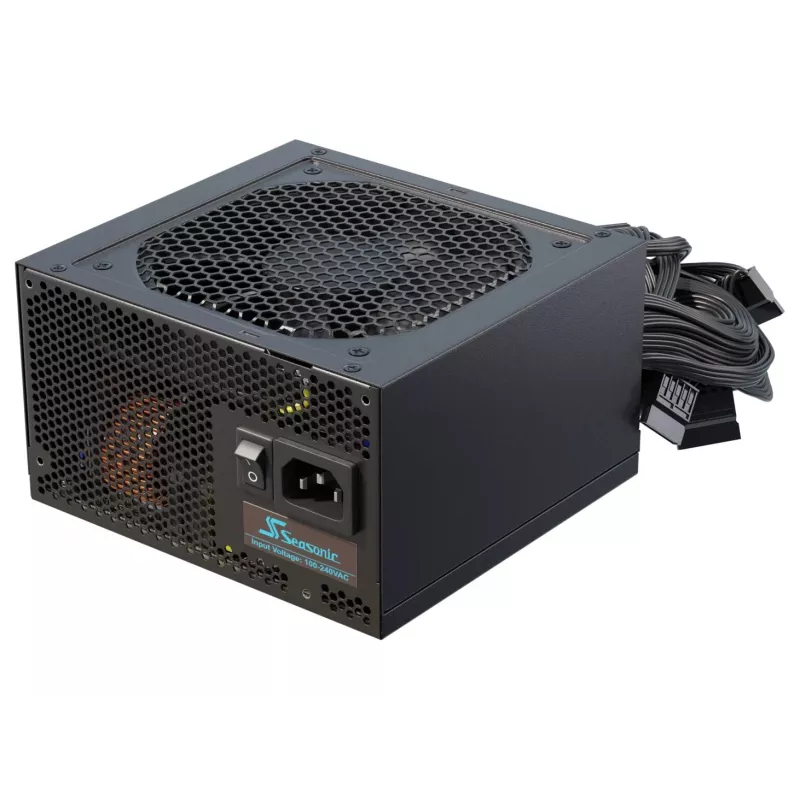

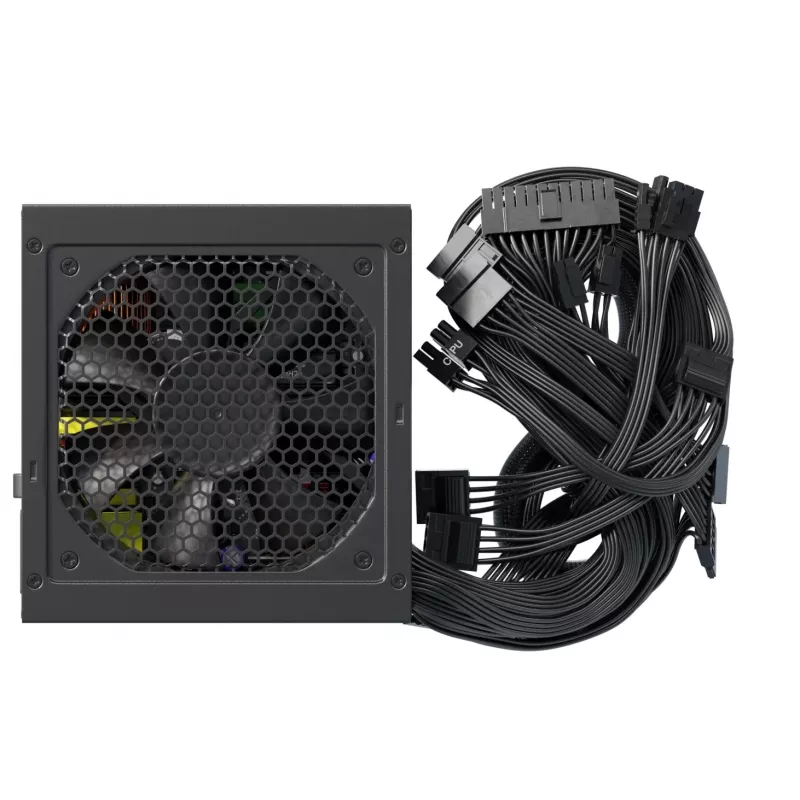

Fuente de alimentación Seasonic G12 GC-650 650W

The Seasonic G12 GC Series is an ATX power supply designed for common PC systems, available in popular wattages such as 650 W. It meets the 80 PLUS Gold efficiency standard, delivering at least 87% efficiency at 20% load, 90% at 50% load and 87% at 100% load. The unit incorporates Active Power Factor Correction and an LLC resonant converter design, together with Seasonic's Smart and Silent Fan Control (S2FC) to reduce energy waste and improve operational reliability.

Advantages

The G12 GC Series offers high energy efficiency that reduces electricity consumption and operating costs. Built-in Active Power Factor Correction improves power delivery quality, while the LLC resonant converter and S2FC fan control provide quieter operation and stable voltage regulation under varying loads.

Key specifications

• Wattage: 650 W
• Input voltage: 100 - 240 V, 50/60 Hz
• Form factor: ATX
• Efficiency certification: 80 PLUS Gold (≥87% @20%, ≥90% @50%, ≥87% @100%)
• Cooling: 12 cm active fan with Smart and Silent Fan Control (S2FC)
• Topology: LLC resonant converter
• Color: Black

How to use

Install the G12 GC Series power supply into a standard ATX chassis following the motherboard and case manufacturer instructions. Connect the appropriate main and peripheral power connectors to the motherboard, CPU, drives and GPU as required. Ensure input voltage selector (if present) matches local mains and secure the unit with the supplied screws. Allow adequate airflow around the fan for proper cooling and refer to the included manual for connector pinouts and safety guidelines.

Recommendations

Choose a G12 GC wattage that matches your system’s peak power draw plus headroom for future upgrades. For optimal efficiency, operate the power supply near 50% load where 80 PLUS Gold efficiency is highest. Verify compatibility with your case and required connectors before purchase.
