Fuente de alimentación Xilence XP500R6 350W 20+4-Pin ATX negra

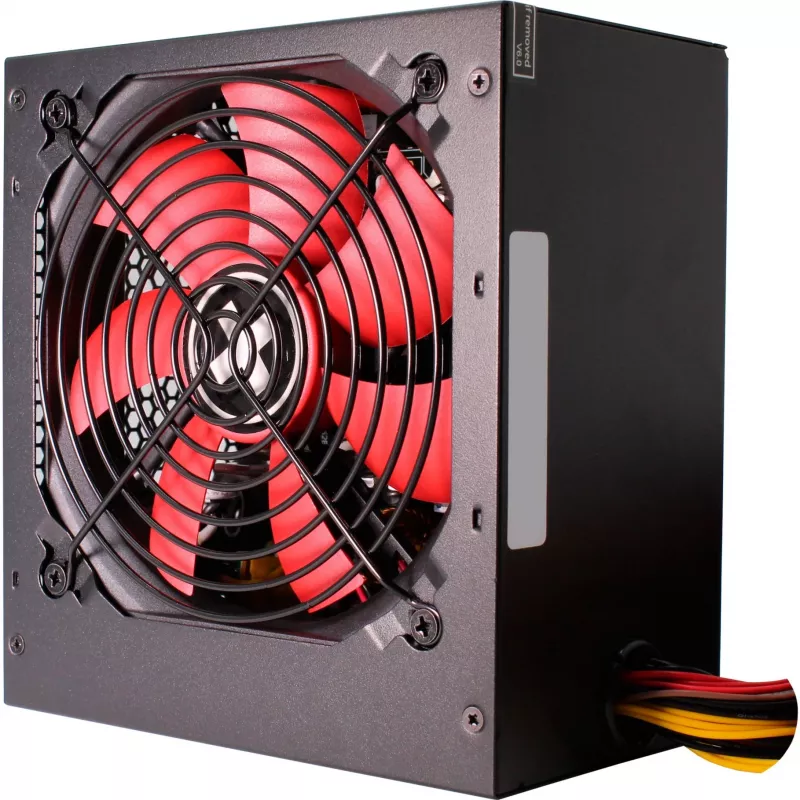

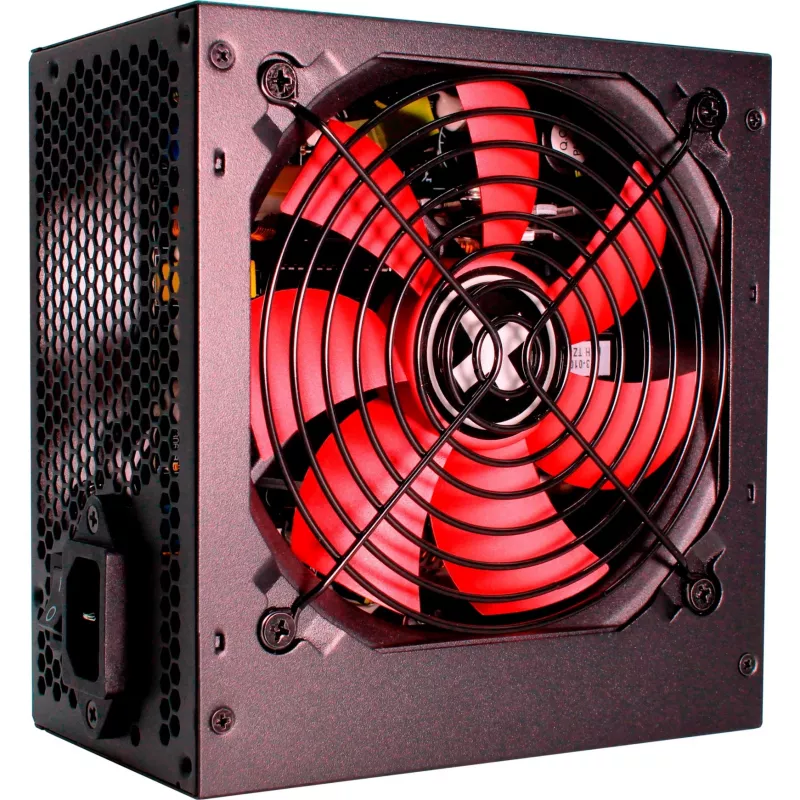

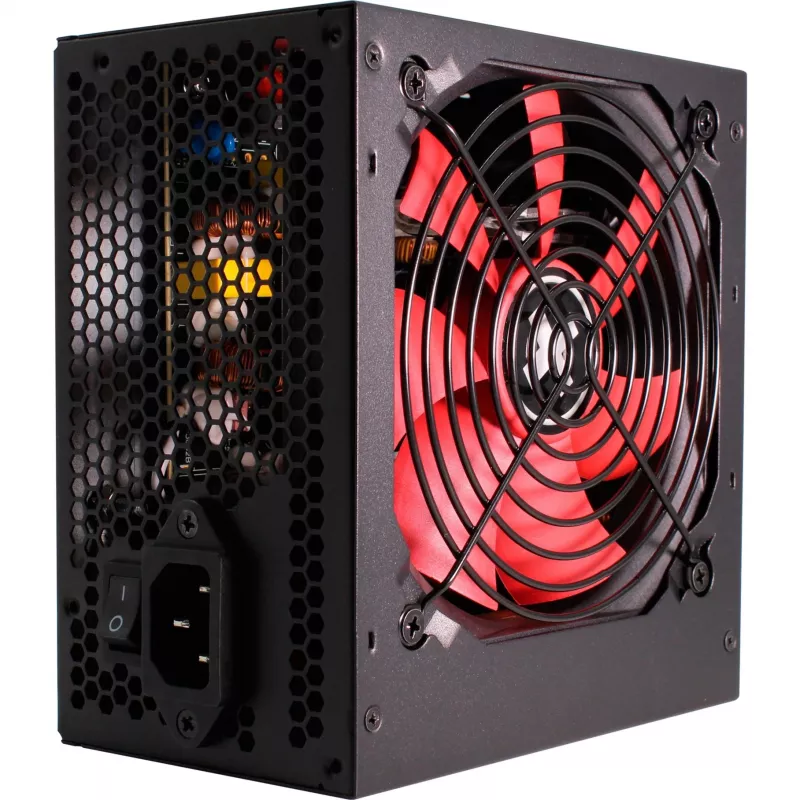

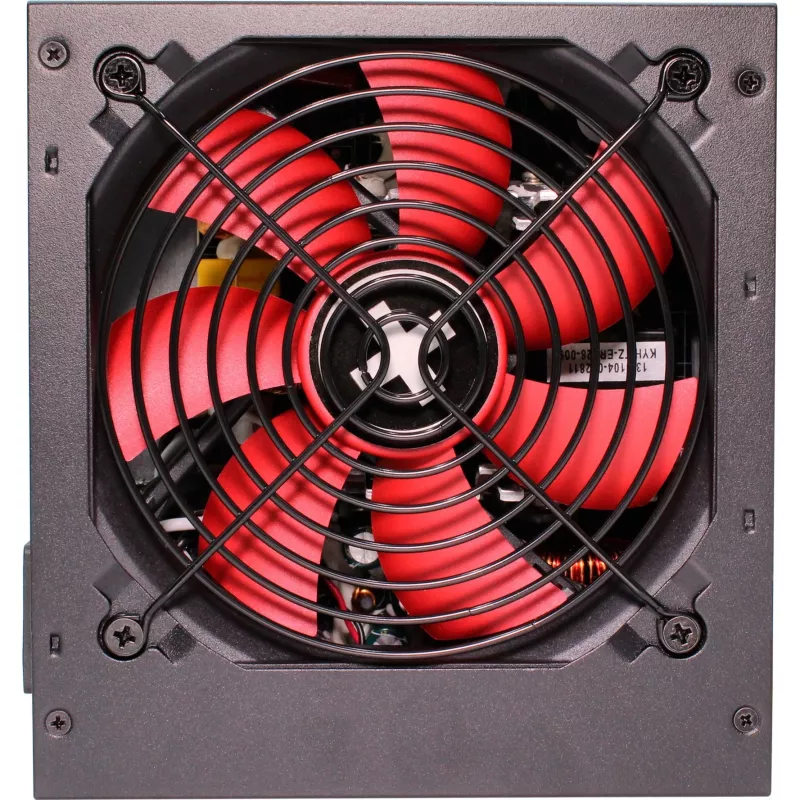

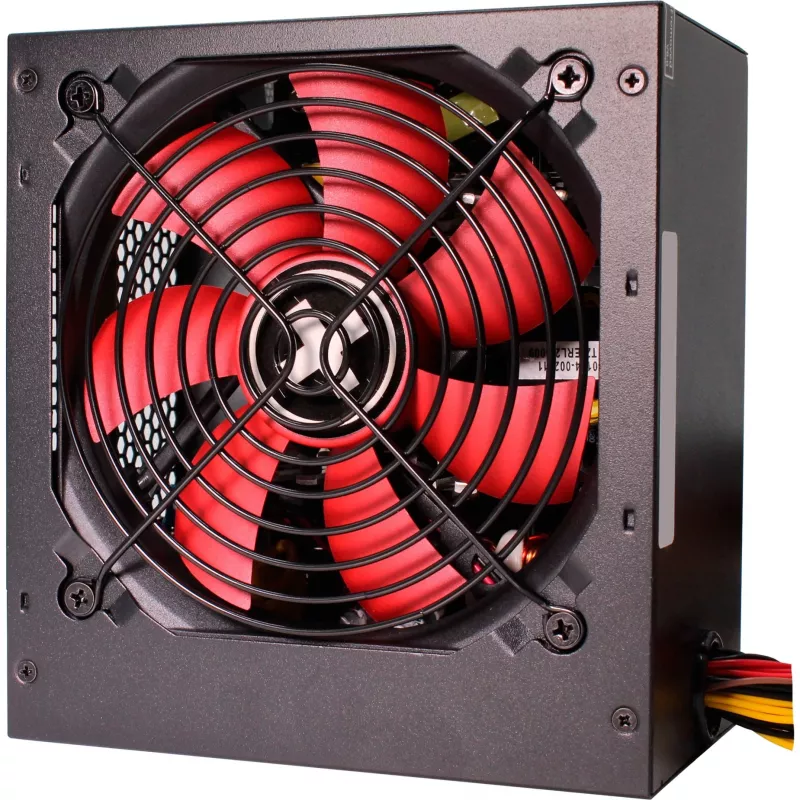

The Xilence XP500R6 is a 350W power supply unit intended for office and home PCs. It provides stable voltages with efficient operation across an AC input range of 110–240 V and includes a 20+4 pin ATX connector for standard motherboard compatibility. The unit has non-modular cabling, a single 120 mm fan for cooling and a black housing designed to fit typical ATX cases.

Advantages

The power supply offers 350 W of continuous power suited to entry-level and office systems, stable 12 V rail delivery and compliance with energy-efficiency requirements (ErP2014). A 120 mm fan and compact design reduce operational noise and maintain adequate cooling. Built-in safety circuits protect against common electrical faults to ensure reliable operation.

Suitable for

• Office computers and home desktops
• Budget or entry-level PC builds
• System upgrades requiring a standard 20+4 pin ATX connector

Key specifications

• Total power: 350 W
• Motherboard connector: 20+4 pin ATX
• AC input voltage: 110–240 V
• Fan diameter: 120 mm
• Cabling type: Non-modular
• Colour: Black

How to use

Install the XP500R6 into a compatible ATX case following standard PSU mounting procedures. Connect the 20+4 pin ATX plug to the motherboard main power socket and attach required peripheral and drive connectors. Ensure the AC mains cable is rated for your local voltage and switch on the PSU via the case or rear switch if present. Verify system power and monitor fan activity during initial operation.

Recommendations

Place the PSU in a well-ventilated case area clear of dust buildup and maintain a minimum clearance around the 120 mm fan. Use the unit within its rated 350 W limit and ensure connected components do not exceed combined power requirements. Regularly check internal cabling and clean dust from the fan to preserve cooling efficiency.
