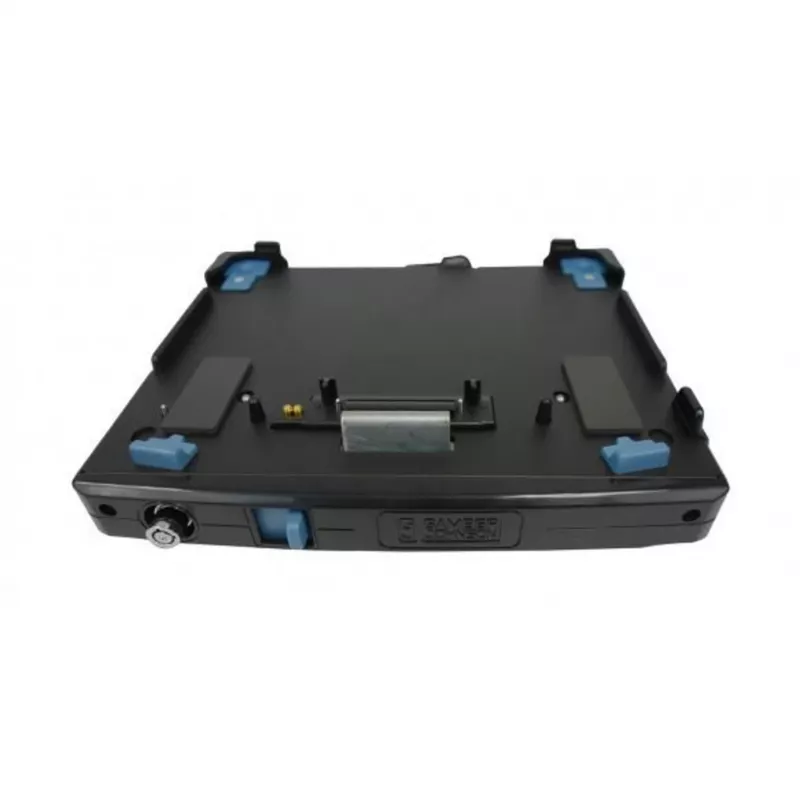

Gamber Johnson base de acoplamiento para vehículo para Panasonic Toughbook G2 (PCPE-GJ20V07)

The Gamber Johnson Vehicle Dock for Panasonic Toughbook G2 (PCPE-GJ20V07) is a rugged, heavy-duty docking station designed for in-vehicle use. It provides full port replication, secure mounting, and reliable charging for your Toughbook G2 tablet. Built with heavy-gauge steel and aluminum, this dock meets MIL-STD-810G and SAE J1455 standards for shock and vibration resistance, ensuring dependable performance in demanding environments.

Advantages

This vehicle dock offers a spring-loaded, front-loading mechanism for easy one-handed docking and undocking. It features integrated electronics with a keyed lock for security, and supports external keyboard connectivity. The dock provides 3x USB 3.0 ports, 1x Gigabit Ethernet, 1x RS232 serial port, and 1x HDMI output, allowing you to connect peripherals and displays. With a wide input voltage range of 12-30V DC, it is compatible with various vehicle electrical systems.

Suitable for

• Panasonic Toughbook G2 tablet
• In-vehicle mobile computing in police, fire, EMS, and field service vehicles
• Industrial and commercial fleet applications
• Any environment requiring a ruggedized docking solution

Key specifications

• Device Compatibility: Panasonic Toughbook G2
• Product Type: Vehicle Docking Station
• Integrated Electronics: Yes
• Antenna Pass-Through: No Dual Pass-Through Antenna
• External Keyboard Support: Required
• Mounting Standard: VESA 75mm
• Power Input: 12-30V DC
• Power Output: 15.6V DC (for Toughbook G2 charging)
• USB Ports: 3x USB 3.0
• Ethernet Port: 1x Gigabit Ethernet (RJ45)
• Serial Ports: 1x RS232 (DB9)
• Video Output: 1x HDMI
• Security Features: Keyed Lock
• Material: Heavy-gauge steel and aluminum
• Ruggedization: MIL-STD-810G Certified
• Shock & Vibration Resistance: Meets SAE J1455 Standards
• Operating Temperature: -20°C to +60°C
• Docking Mechanism: Spring-loaded, front-loading
• Port Replication: Full Port Replication
• Status Indicators: LED indicators for power and docking status

Recommendations

For optimal performance, use with a compatible Panasonic Toughbook G2 and a vehicle power system. Ensure the dock is securely mounted using the VESA 75mm pattern. An external keyboard is required for full functionality.
