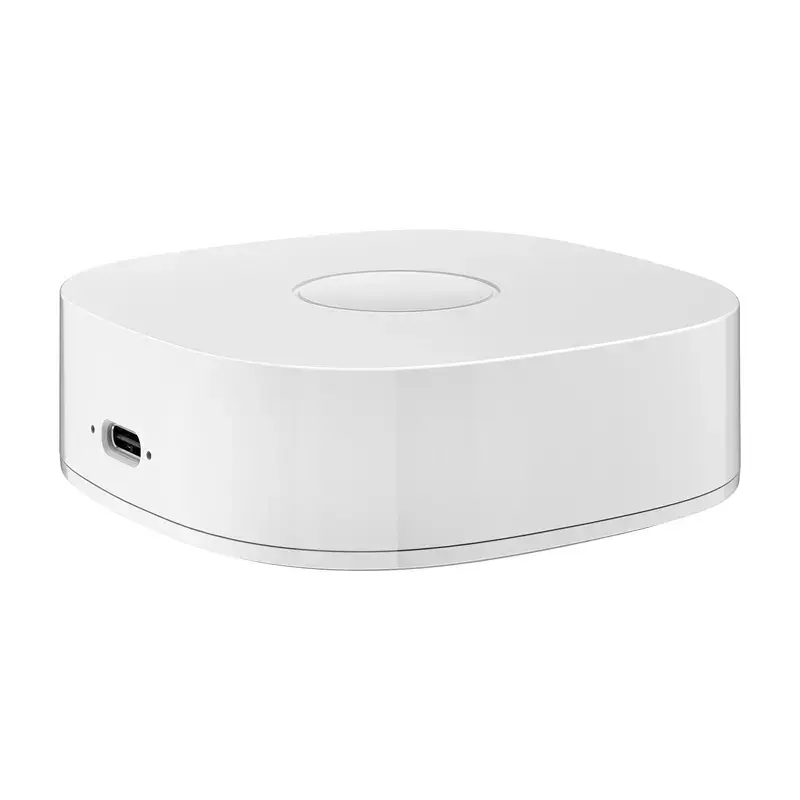

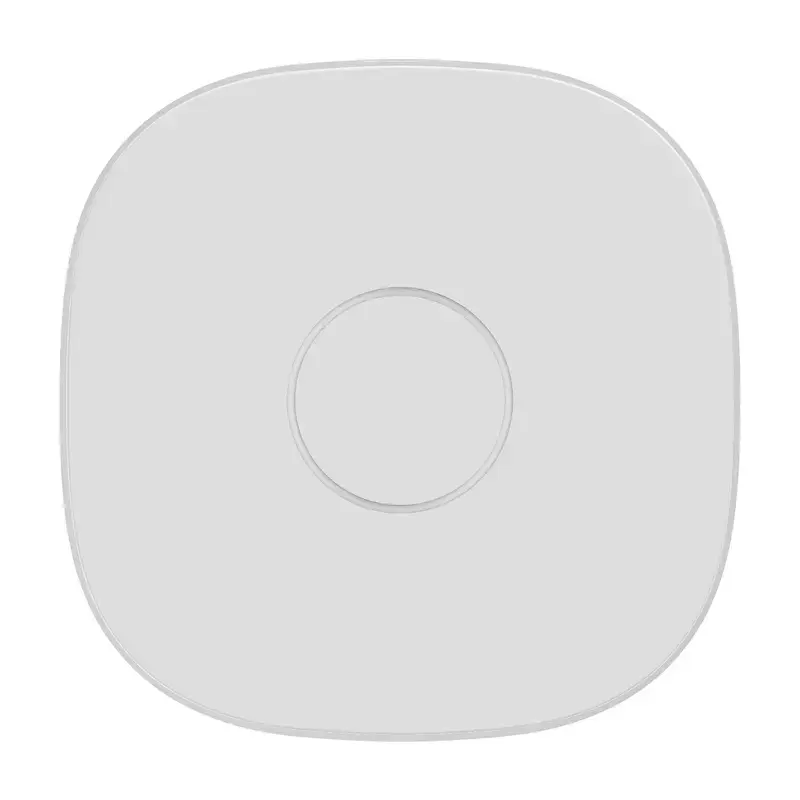

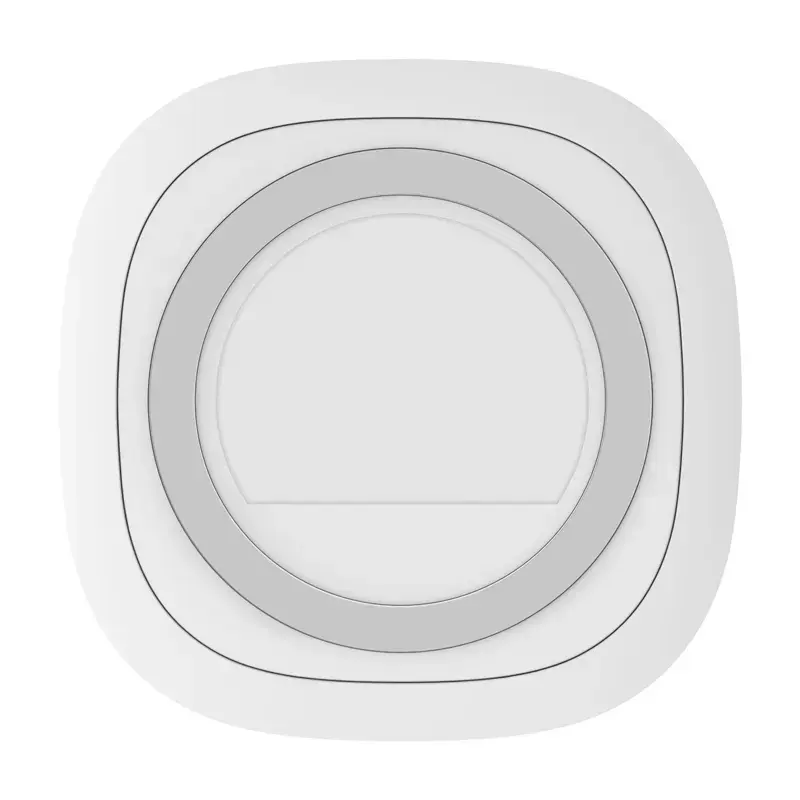

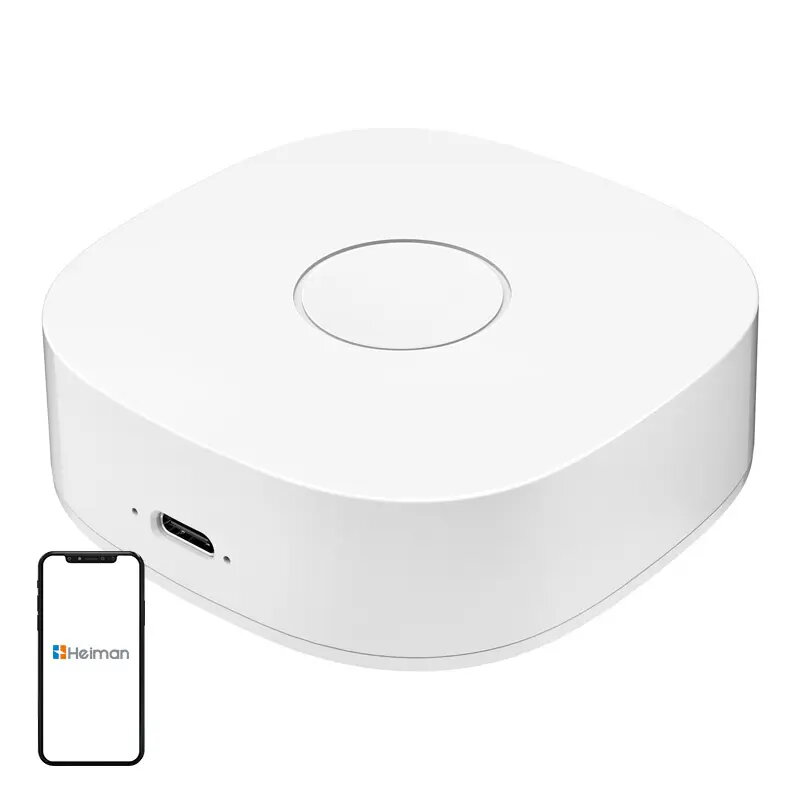

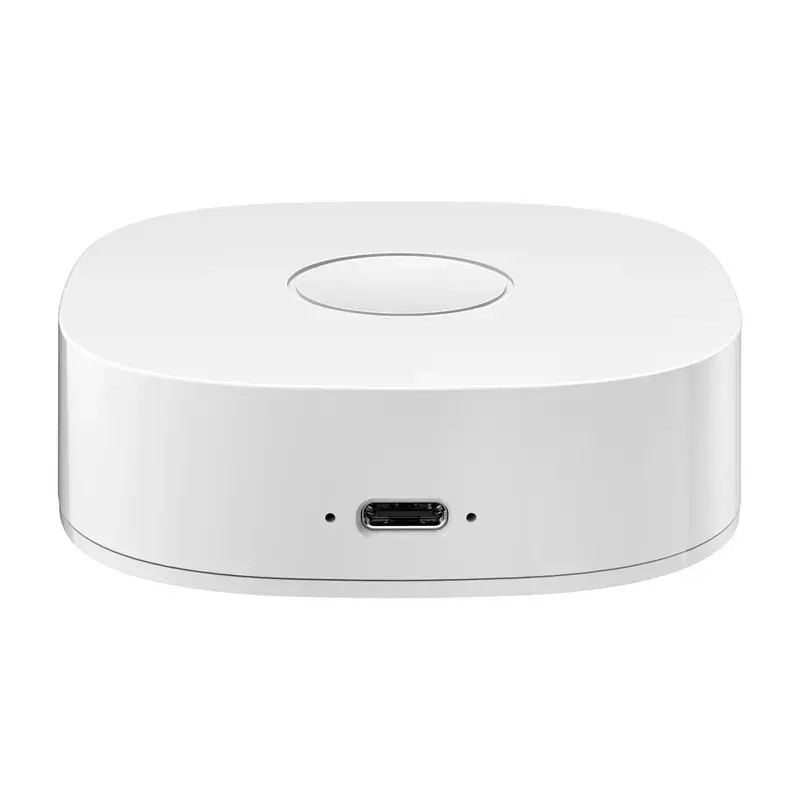

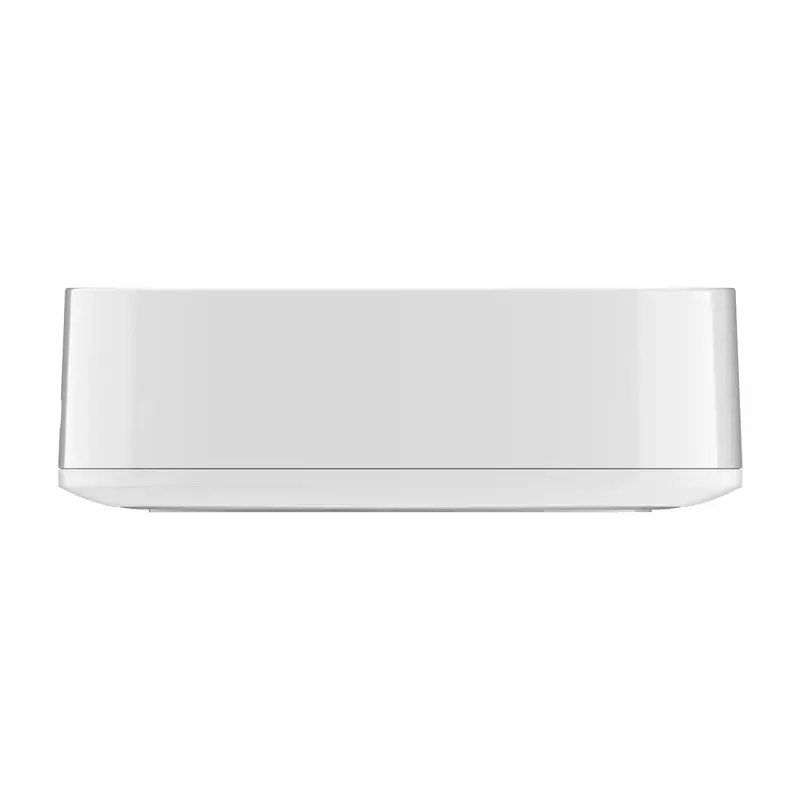

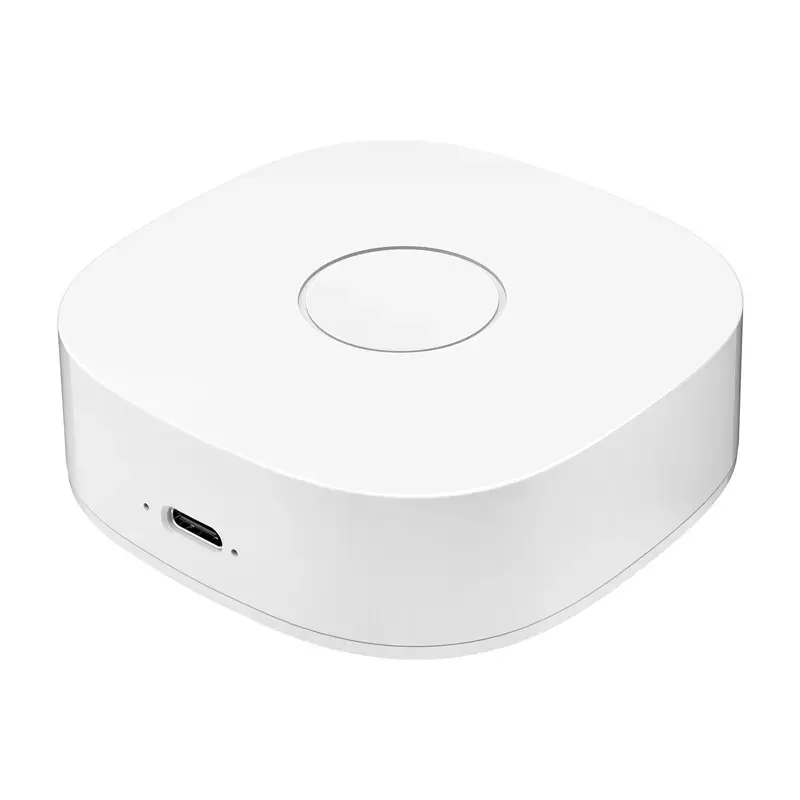

Gateway Smart Home HEIMAN WS2GW-R WiFi conectividad inalámbrica, modelo WS2GW-R

Heiman WS2GW-R WiFi smart gateway is a compact central hub for smart home management. It connects to a 2.4 GHz WiFi network and supports wireless communication with sensors and alarms at 433 MHz or 868 MHz. With dimensions of 80 × 80 × 26.5 mm and a minimalist design, the gateway fits into most interiors and provides centralized control for up to 40 connected devices.

Advantages

The Heiman WS2GW-R offers remote control via the TUYA Smart app, real-time notifications for detected events and LED status indicators for network, power and device connections. It supports integration with smoke, gas and temperature sensors and provides stable operation across a wide temperature and humidity range.

Key specifications

• Manufacturer: Heiman
• Model: WS2GW-R
• Operating voltage: DC 5V
• Network connectivity: WiFi 2.4 GHz + wireless connection
• Connection frequency: 433 MHz or 868 MHz
• WiFi standard: IEEE 802.11 b/g/n 2.4 GHz
• Operating temperature: -10°C to +55°C
• Operating humidity: ≤95% RH (non-condensing)
• Maximum connected units: up to 40
• Dimensions: 80 × 80 × 26.5 mm

How to use

Connect the Heiman WS2GW-R to a DC 5V power source and join it to your 2.4 GHz WiFi network. Install the TUYA Smart app on your smartphone, create or log in to your account, then follow the in-app pairing instructions to add the gateway. After successful pairing, add sensors and alarms operating on 433 MHz or 868 MHz and configure notification and automation settings via the app.

Recommendations

Place the gateway in a central, elevated location with good WiFi coverage and minimal metal or concrete obstructions. Keep the device within the specified operating temperature and humidity ranges. Use the original power adapter and follow the user manual for safe installation and reliable operation.
