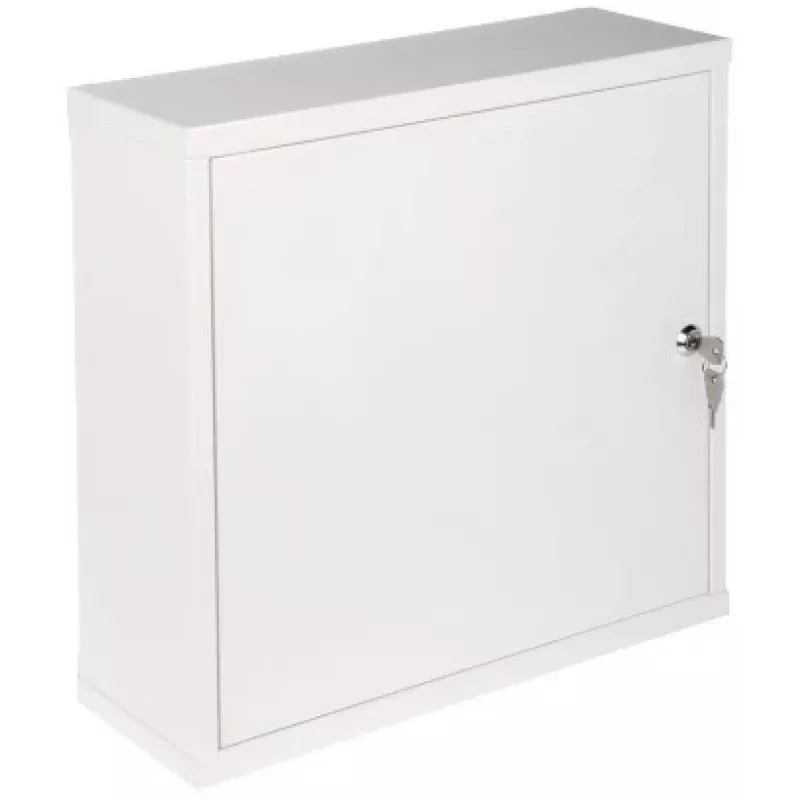

Carcasa metálica MB-TPR4-MP-W 400 x 400 x 140 mm blanca

This metal enclosure provides a secure and spacious housing for alarm systems, access control equipment, and low-voltage installations. Its robust powder-coated steel construction and tamper protection keep sensitive electronics safe from unauthorized access and environmental factors.

Advantages

The enclosure offers a generous internal volume, accommodating SATEL mainboards, power supplies, and modules, along with space for transformers and backup batteries. The key lock and tamper switch ensure physical security, while knockouts and ventilation simplify cable management and thermal control.

Suitable for

• Alarm system control panels and expanders
• Access control controllers and readers
• Low-voltage power distribution and battery backup
• Integration with SATEL TR40VA, TR60VA transformers and 7Ah/17Ah batteries

Key specifications

• External dimensions: 400 x 400 x 140 mm (H x W x D)
• Internal dimensions: approx. 395 x 395 x 135 mm
• Material: powder-coated steel, white
• Protection class: IP20
• Tamper protection against opening and removal
• Key lock with 2 keys included
• Knockout cable entries and ventilation
• Operating temperature: -10°C to +55°C
• Relative humidity: up to 93% non-condensing

Recommendations

Ideal for professional security installers seeking a reliable, tamper-resistant enclosure for SATEL-based systems. Verify internal clearance for specific battery and transformer combinations before installation.
