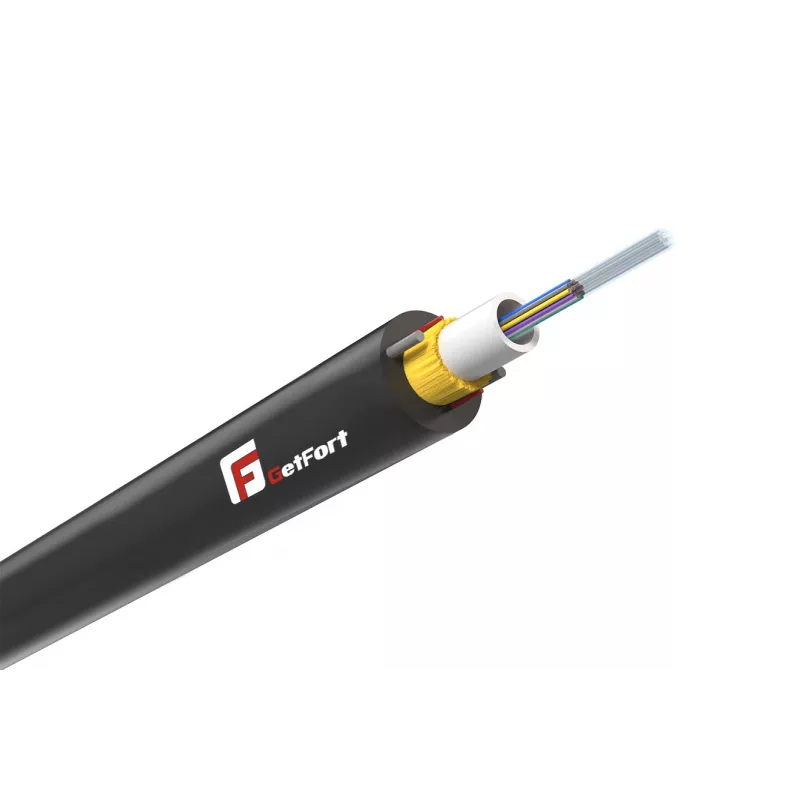

GETFORT ARAMID 4J Cable de fibra óptica, 4 fibras, monomodo OS2, LSZH, 1m

Fiber optic installations often fail due to fragile cables that cannot withstand the mechanical stresses of routing through conduits or the environmental challenges of outdoor exposure. The GETFORT ARAMID 4J fiber optic cable addresses these issues with a robust aramid yarn strength member and an LSZH jacket, ensuring reliable performance in demanding indoor and outdoor environments. This 1-meter cable contains 4 singlemode OS2 fibers, making it ideal for high-speed data transmission over short distances within patch panels, equipment rooms, or between buildings.

Who is it for

Network engineers, data center technicians, and telecommunication installers who require a durable, low-smoke, zero-halogen cable for connecting fiber optic equipment. It is particularly suited for environments where fire safety is critical, such as offices, schools, and public buildings, as well as for outdoor runs where UV resistance and crush protection are necessary.

Main features

• 4 singlemode OS2 fibers for high bandwidth and long-distance capability
• Aramid yarn strength member provides excellent tensile strength (600 N during installation)
• LSZH (Low Smoke Zero Halogen) jacket in yellow for safety in fire-prone areas
• Tight buffer construction for easy termination and durability
• Suitable for indoor/outdoor use with UV resistance
• Complies with IEC 60794 and TIA/EIA-568.3-D standards

Specifications

• Cable length: 1 meter
• Fiber type: Singlemode OS2
• Fiber count: 4
• Outer diameter: 4.0 mm
• Jacket material: LSZH
• Jacket color: Yellow
• Strength member: Aramid yarn
• Attenuation: ≤0.35 dB/km @ 1310nm, ≤0.25 dB/km @ 1550nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +80°C
• Minimum bend radius: 80 mm (dynamic), 40 mm (static)
• Crush resistance: 1000 N/100mm
• Tensile strength: 600 N (installation)
• UV resistant: Yes
• Standards: IEC 60794, TIA/EIA-568.3-D

Tips

When installing, avoid exceeding the minimum bend radius to prevent signal loss. For outdoor applications, ensure proper sealing of connectors to maintain performance. This cable is ideal for patching between fiber optic patch panels and equipment in racks, or for short outdoor links between buildings.
