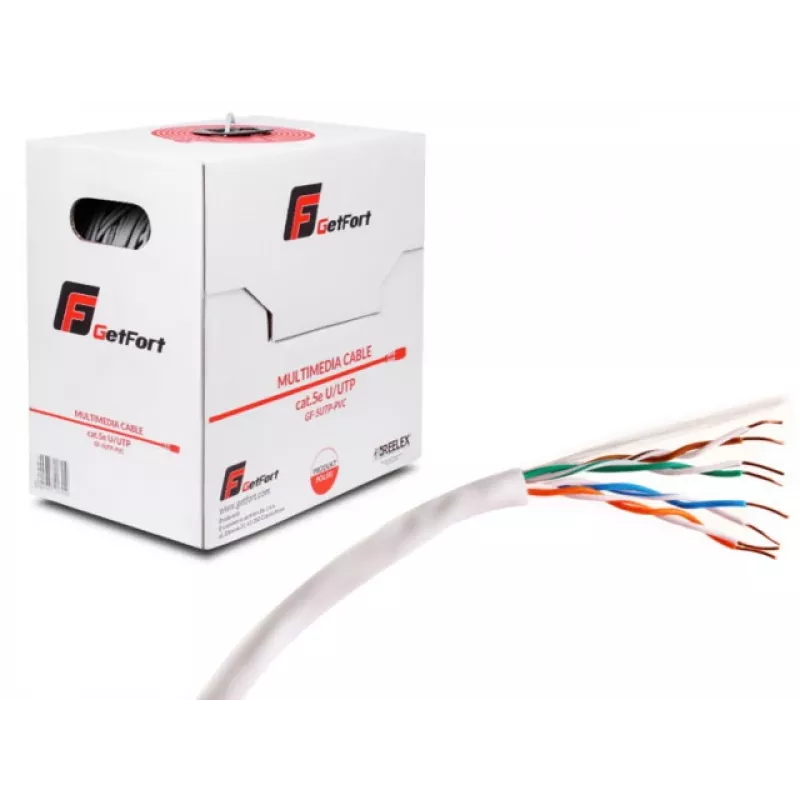

GETFORT Cable de red Premium Cat.5e U/UTP PVC 500m gris

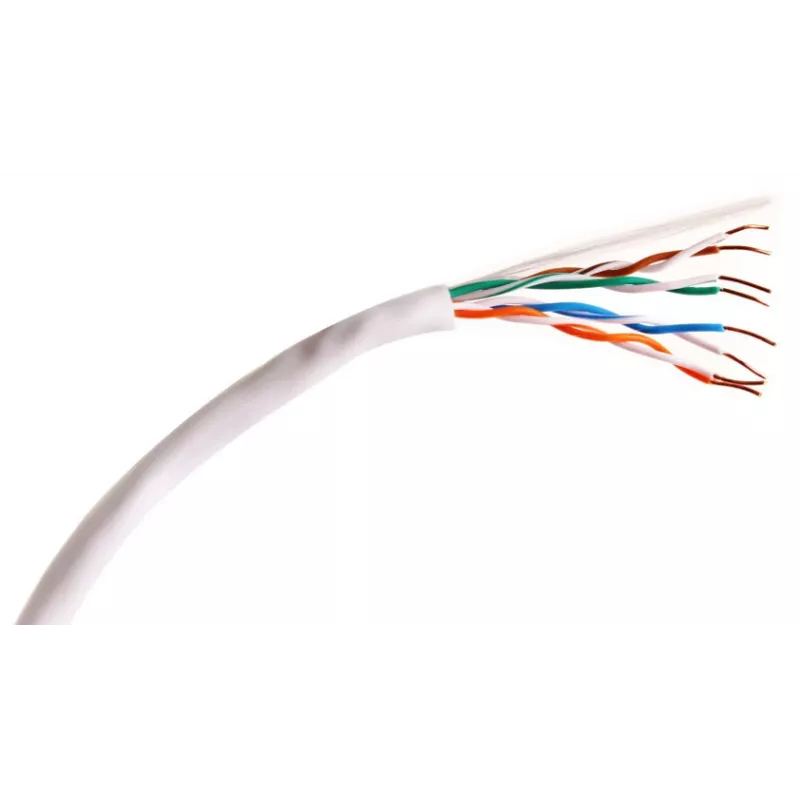

The GETFORT Premium Cat.5e U/UTP PVC Network Cable is a high-performance twisted pair cable designed for reliable data transmission in indoor networking environments. With a length of 500 meters, it is ideal for structured cabling installations in offices, data centers, and residential buildings. The cable features pure copper conductors (24 AWG) and 4 pairs, supporting data transfer rates up to 1 Gbps and bandwidth up to 100 MHz. Its U/UTP (unshielded) design ensures flexibility and ease of installation, while the PVC jacket provides durability and flame retardancy (CM rated). Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, this cable delivers consistent performance and signal integrity.

Advantages

High-quality pure copper conductors ensure excellent conductivity and signal transmission. The 500-meter length allows for long runs without the need for couplers. PVC jacket offers protection against physical damage and meets CM flame retardancy standards for indoor use. The cable is easy to terminate and install, saving time and labor costs.

Suitable for

• Structured cabling in offices and commercial buildings
• Data center network infrastructure
• Home network installations requiring long cable runs
• Connecting switches, routers, and patch panels

Key specifications

• Cable Type: Twisted Pair Network Cable
• Category: Cat.5e
• Shielding: U/UTP
• Jacket Material: PVC
• Length: 500 meters
• Conductor Material: Pure Copper
• Conductor Gauge: 24 AWG
• Number of Pairs: 4
• Data Transfer Rate: Up to 1 Gbps
• Bandwidth: Up to 100 MHz
• Impedance: 100 Ohm
• Outer Diameter: 5.0 - 5.2 mm
• Operating Temperature: -20°C to 60°C
• Packaging: Wooden/Plastic Reel
• Colour: Grey

Recommendations

For optimal performance, use with Cat.5e compatible connectors and patch panels. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for indoor use only; for outdoor installations, consider a UV-resistant jacket.
