GETFORT GF-DAC-2J Cable de fibra óptica para enterramiento directo en exterior 1m, 2 fibras, monomodo OS2, cubierta de PE resistente a los rayos UV, protección contra roedores

Fiber optic cable engineered for direct burial in outdoor environments, delivering reliable high-speed data transmission over 1 meter with two single-mode OS2 fibers. Its rugged construction withstands harsh underground conditions, ensuring long-term performance.

Advantages

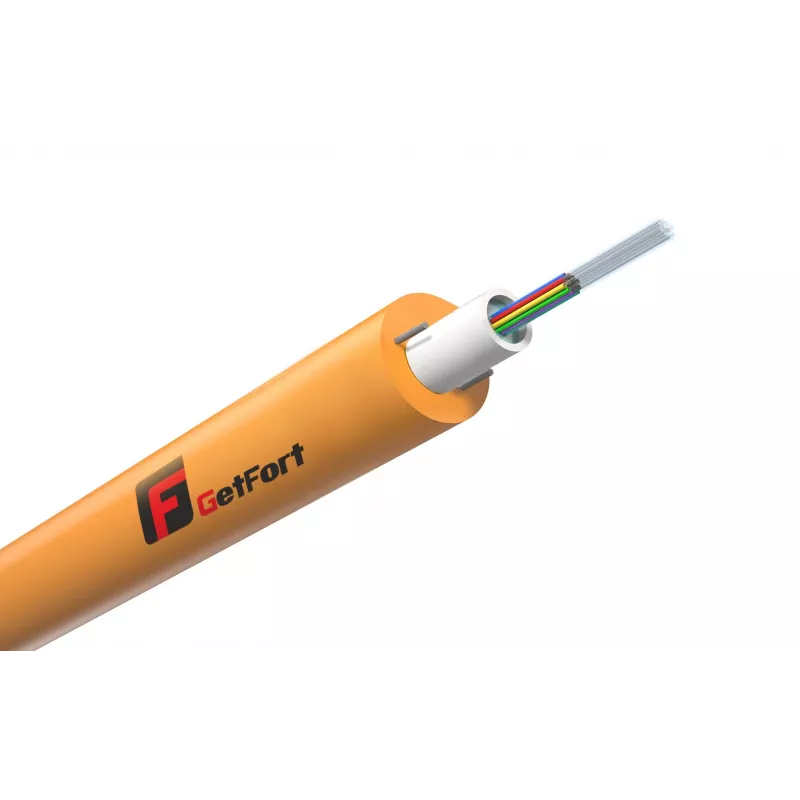

This cable features a UV-resistant polyethylene jacket that protects against sunlight and weathering, while the loose tube design and water-blocking elements prevent moisture ingress. Aramid yarn and fiberglass rods provide tensile strength, and rodent protection (steel tape or glass yarns) guards against damage. High crush resistance (1000 N/10cm) and impact resistance (10 J) ensure durability during installation and operation.

Suitable for

• Outdoor direct burial installations
• Underground conduit or trench laying
• FTTx and long-haul network backbones
• Industrial and campus environments

Key specifications

• Cable length: 1 meter
• Fiber count: 2 fibers
• Fiber type: Single-mode OS2
• Jacket material: UV-resistant polyethylene (PE)
• Outer diameter: approx. 6.0 mm
• Attenuation: ≤0.35 dB/km @ 1310nm, ≤0.22 dB/km @ 1550nm
• Operating temperature: -40°C to +70°C
• Installation temperature: -20°C to +60°C
• Minimum bend radius: 20x OD (installation), 10x OD (operation)
• Standards: IEC 60794, TIA/EIA-568

Recommendations

For reliable outdoor fiber connectivity, pair with compatible single-mode connectors and splice closures. Ensure proper depth and protection during burial to maximize lifespan.
