GETFORT GF-FO04-SX Panel de conexión de fibra óptica fijo 1U 19" 24xSC Simplex

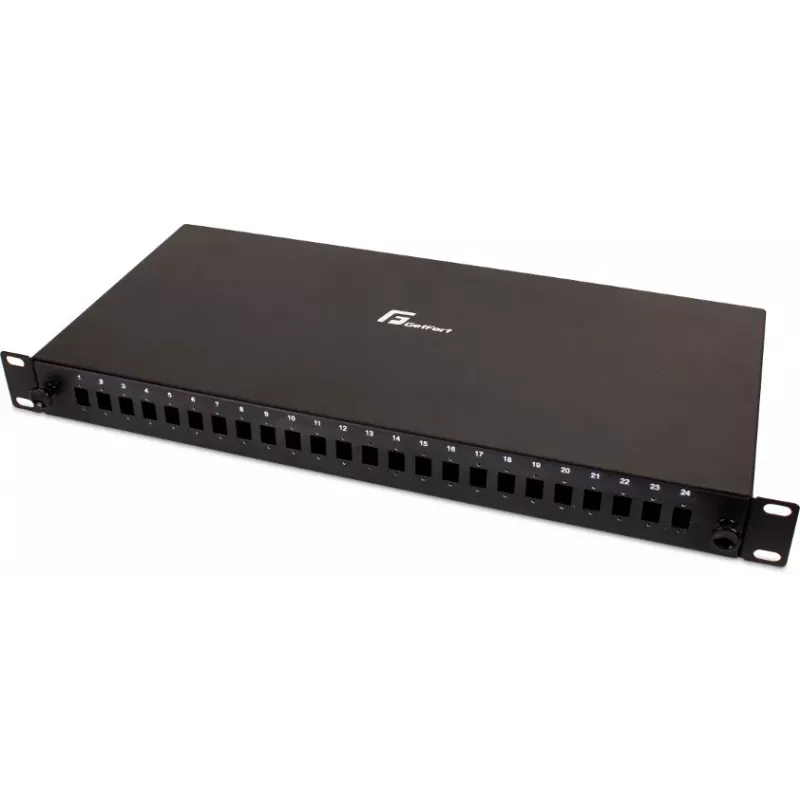

When network racks start to fill with loose fibre cables, termination points quickly become messy and unreliable. The GETFORT GF-FO04-SX patch panel turns that tangle into a structured, protected hub. Built for standard 19-inch racks, this 1U unit offers 24 SC simplex ports on a fixed steel front panel, making it a straightforward choice for distribution frames in data centres, server rooms, and telecom cabinets.

Key specifications

• Rack form: 19-inch, 1U height
• Ports: 24 x SC simplex adapters
• Panel design: Fixed, non-sliding
• Construction: Powder-coated steel, black (RAL 9005)
• Maximum capacity: up to 24 fibres / 24 splices
• Accessories included: cable glands, mounting screws, splice trays
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity range: 5% to 95% non-condensing
• Certifications: RoHS, CE

Why choose it

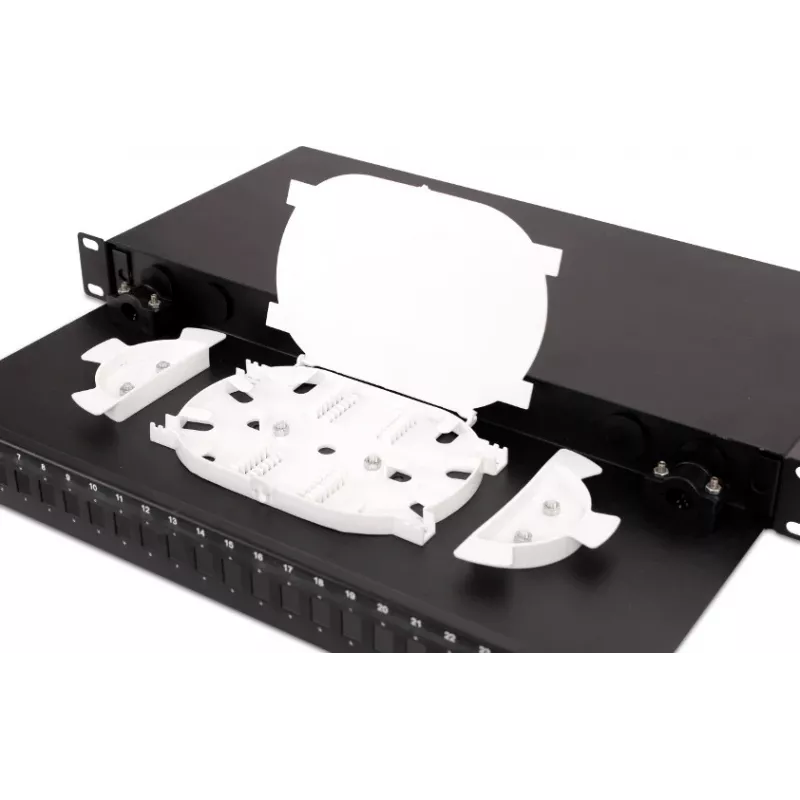

The GF-FO04-SX gives you a professional, permanent fibre termination point without unnecessary complexity. The fixed panel keeps each port securely in place, while the integrated splice trays protect up to 24 splices from stress and dust. Because it ships ready to mount, you can have it fitted in minutes and start terminations straight away.

Ideal use cases

• Data centre patching between switches and distribution frames
• ISP and telecom POPs where multiple subscriber fibres converge
• LAN backbone termination in office and industrial buildings
• Structured cabling projects requiring standardized SC simplex connections

Good to know

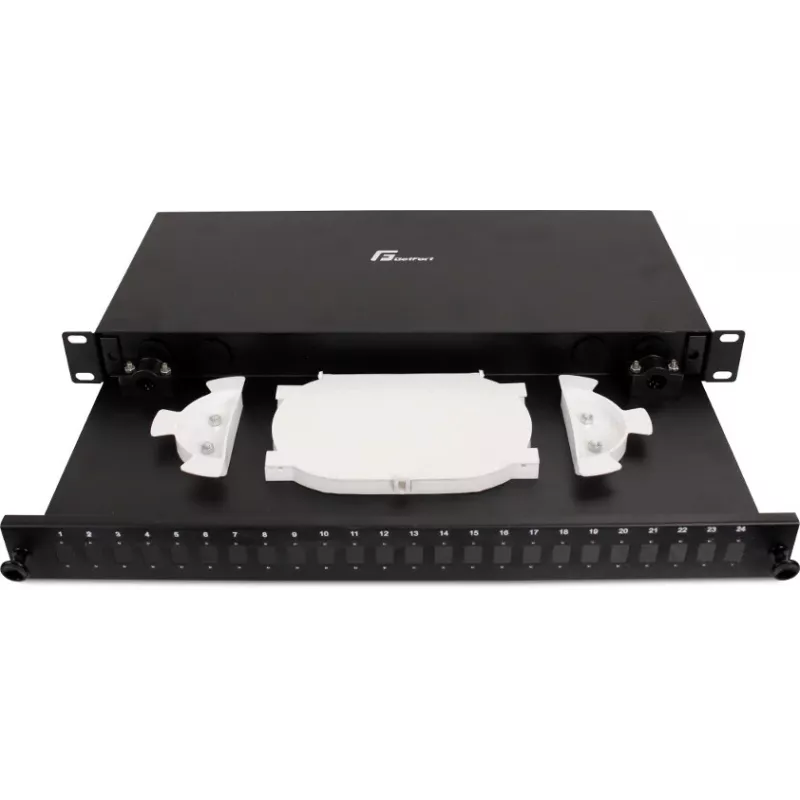

The panel has a removable front for easier access when installing adapters or re-routing fibres. Cable entries are positioned at the rear, helping to keep the front clean and user-friendly. For reliable operation, keep the unit within the specified temperature and humidity range and ensure the fibre bend radius is respected during installation.
