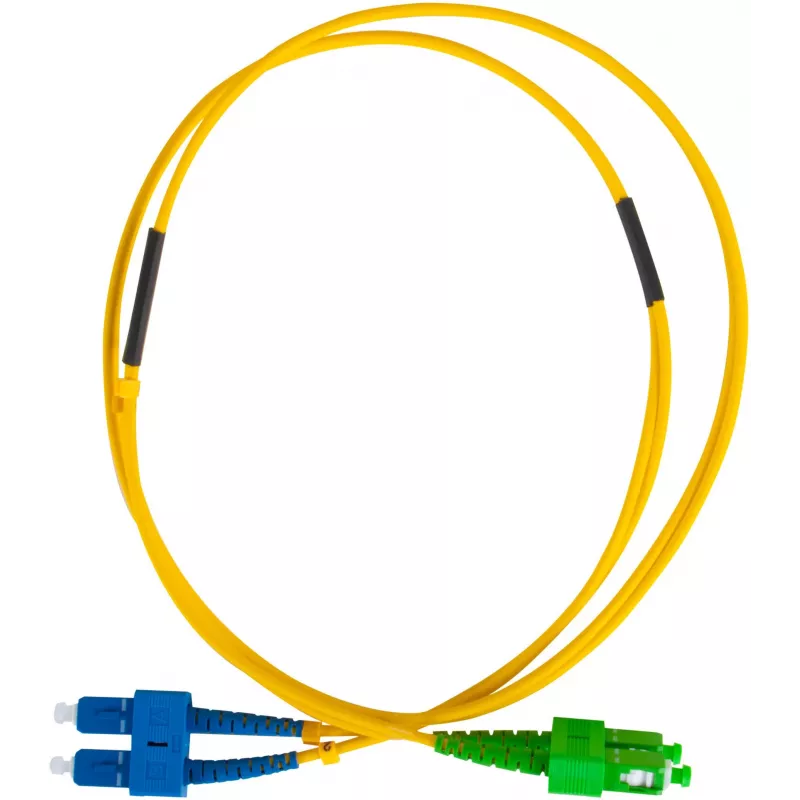

GETFORT latiguillo de fibra óptica monomodo SC/UPC a SC/APC dúplex 5m LSZH

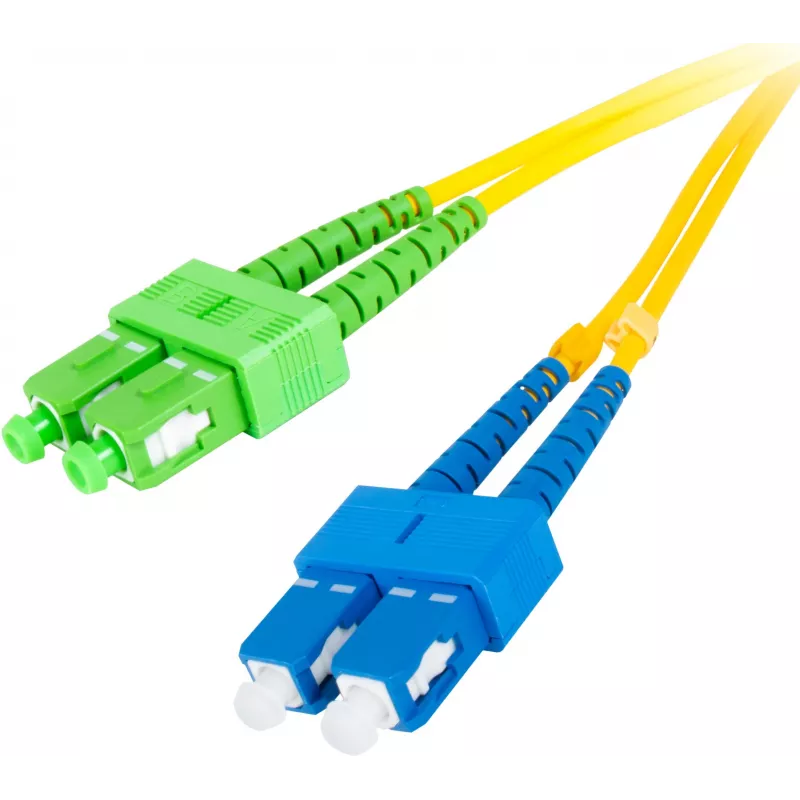

The GETFORT GF-SUSAD5 is a high-quality fiber optic patch cord designed for reliable single-mode transmission. Featuring SC/UPC to SC/APC connectors and a duplex configuration, this 5-meter cable ensures low insertion loss and high return loss, making it ideal for critical network applications. The LSZH jacket provides safety in enclosed spaces.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB UPC, ≥60 dB APC) ensure excellent signal integrity. Durable zirconia ceramic ferrules guarantee over 1000 mating cycles. The LSZH jacket reduces toxic fumes in case of fire.

Suitable for

• Data centers
• Telecommunications networks
• FTTH (Fiber to the Home)
• LAN and CATV systems

Key specifications

• Fiber mode: Single-Mode (SM)
• Fiber count: Duplex (2 fibers)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable length: 5 meters
• Jacket material: LSZH
• Cable diameter: 3.0 mm per strand
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥50 dB (UPC), ≥60 dB (APC)
• Wavelength: 1310/1550 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Minimum bend radius: 30 mm
• Durability: >1000 mating cycles
• Polarity: A-B cross-over
• Standards: IEC 61754, TIA/EIA-604, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius.
