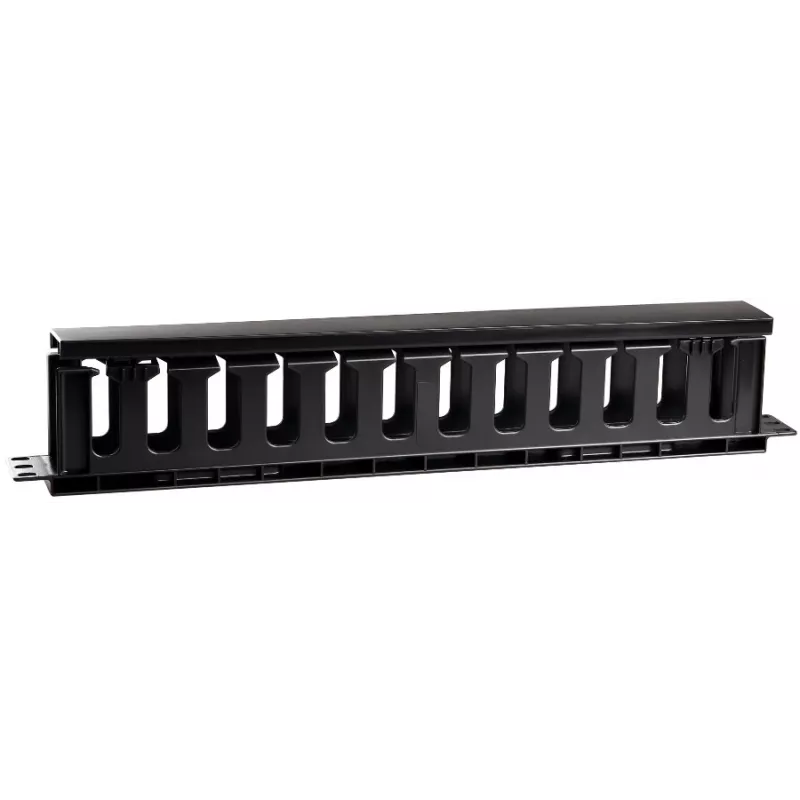

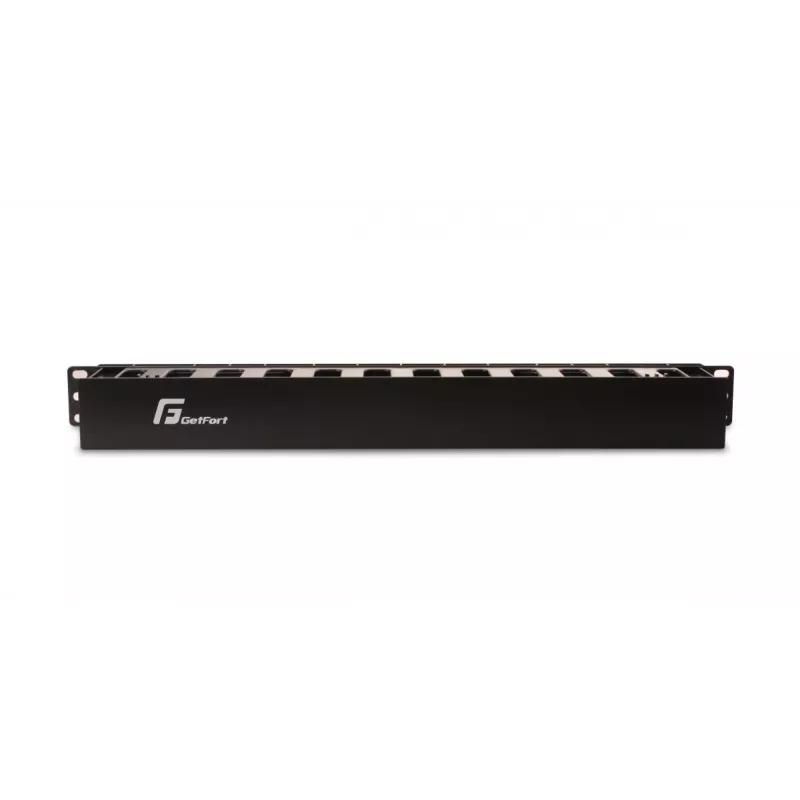

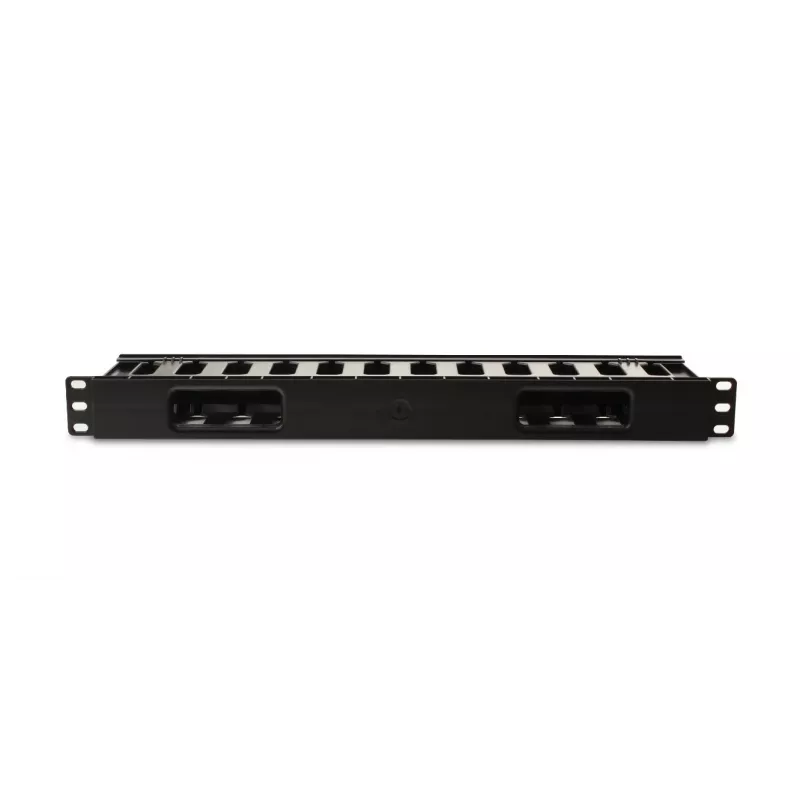

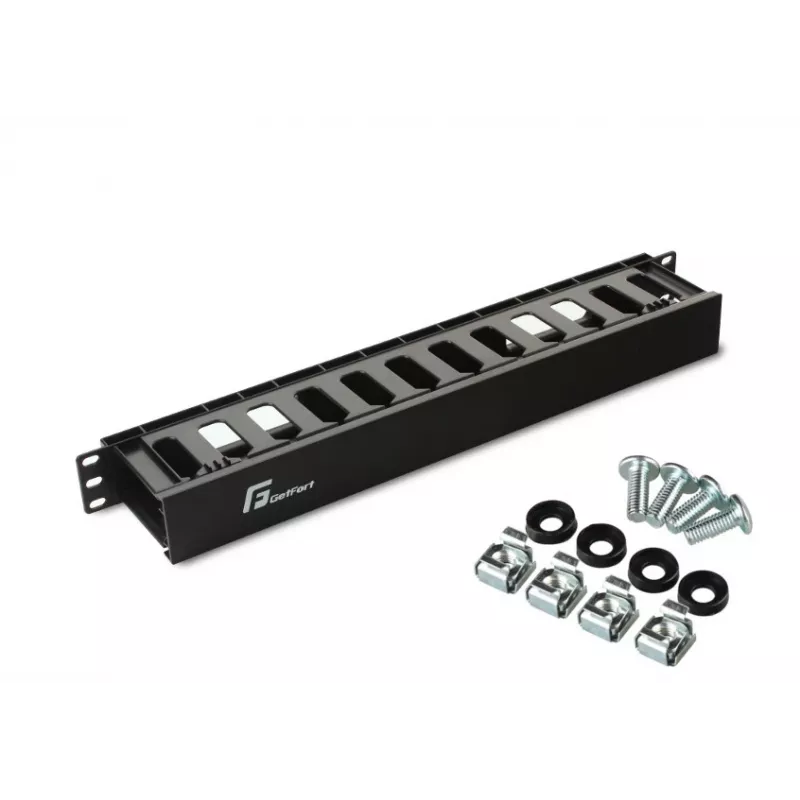

GETFORT OGF-PM Panel de gestión de cables horizontal cerrado 1U - Negro

The GETFORT OGF-PM is a professional 1U horizontal enclosed cable management panel designed for 19-inch standard racks. It provides a clean, organized solution for routing, protecting, and managing cables in network cabinets, server racks, and data centers. The hinged front cover allows easy access while keeping cables secure and out of sight.

Advantages

This cable organizer helps maintain airflow, reduces cable strain, and improves the overall appearance of your rack installation. The enclosed design protects cables from dust and accidental disconnection. The powder-coated SPCC cold rolled steel construction ensures durability and long service life.

Suitable for

• Network cabinets and server racks
• Data centers and telecom rooms
• IT infrastructure installations requiring tidy cable management

Key specifications

• Rack Unit Height: 1U
• Rack Compatibility: 19-inch Standard Racks
• Mounting Orientation: Horizontal
• Cable Management Type: Enclosed / Covered
• Cover Mechanism: Hinged Front Cover
• Material: SPCC Cold Rolled Steel
• Finish: Powder Coated
• Color: Black (RAL 9005)
• Cable Entry/Exit: Rear/Bottom Slot
• Dimensions (Width): 482 mm
• Dimensions (Height): 44 mm
• Dimensions (Depth): 70 mm
• Application: Network cabinets, server racks, data centers
• Function: Cable routing, protection, and organization
• Installation: Front panel mounting
• Compliance: RoHS
• Operating Temperature: -10°C to 60°C
• Humidity: 10% to 90% non-condensing

Recommendations

For optimal cable management, pair this panel with appropriate cable ties and labeling. Ensure proper ventilation around the rack to maintain operating temperature within specified range.
