GETFORT SFP WDM 1.25Gbps 3km SC/UPC monomodo, TX1550/RX1310

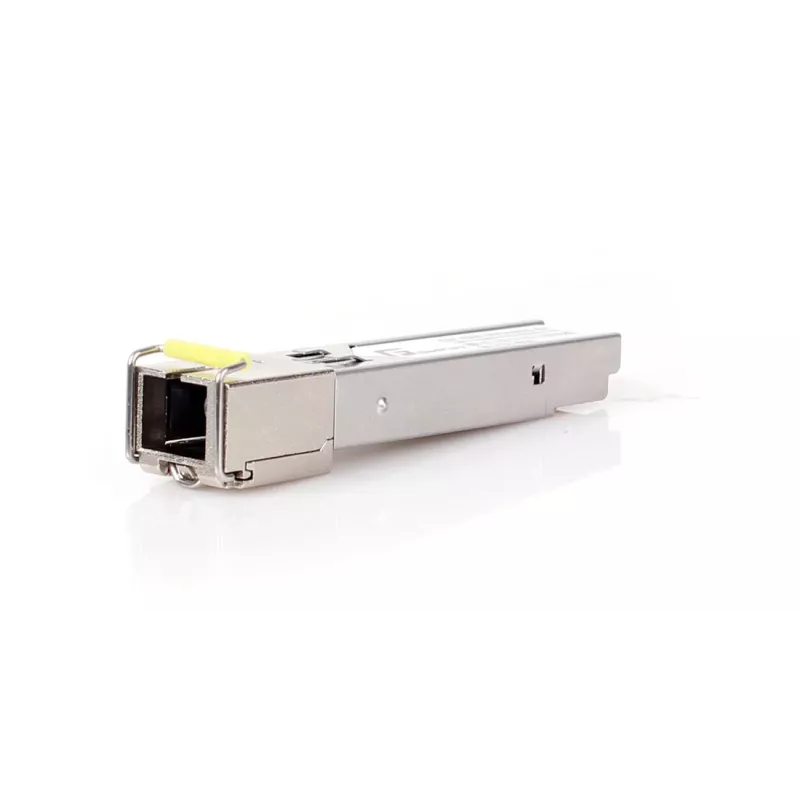

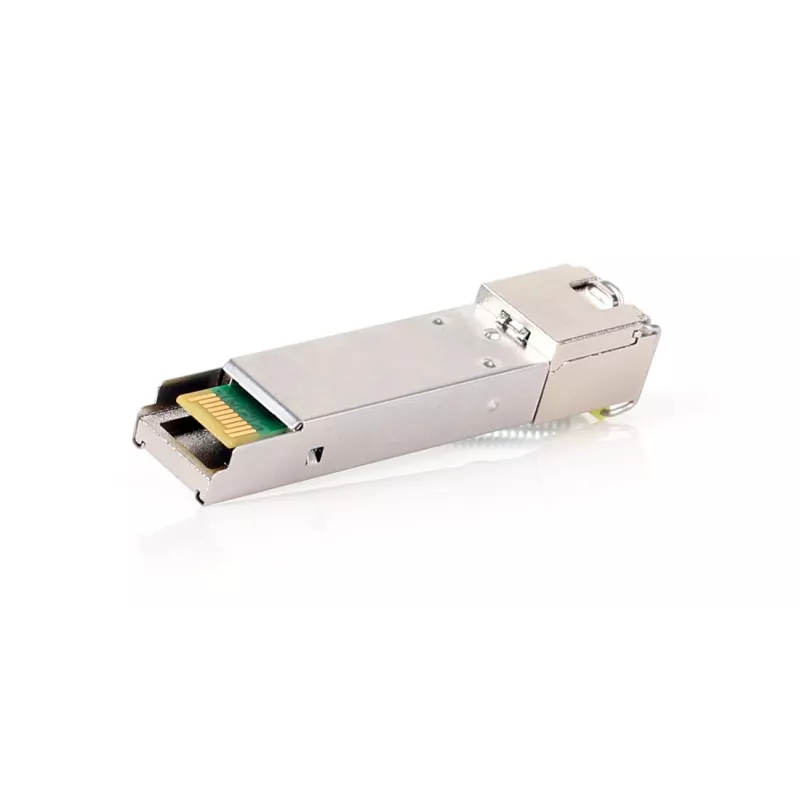

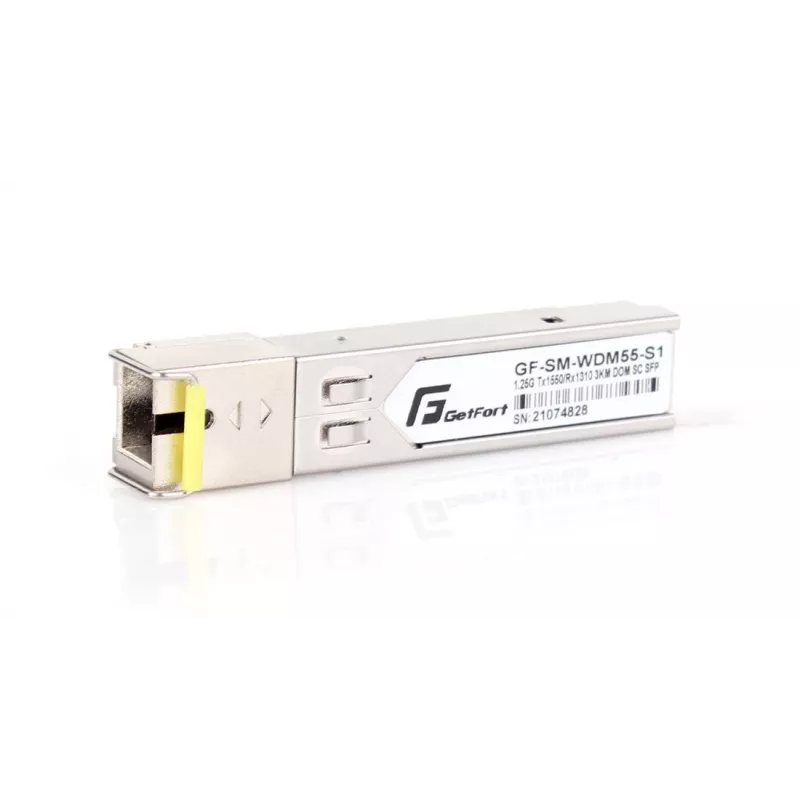

The GETFORT GF-SM-WDM55-S1 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for bi-directional data transmission over a single strand of single-mode fiber. It operates at a data rate of 1.25 Gbps and supports a maximum transmission distance of 3 km. This module utilizes WDM (Wavelength Division Multiplexing) technology with a transmit wavelength of 1550 nm and a receive wavelength of 1310 nm, making it ideal for point-to-point Gigabit Ethernet and Fiber Channel applications.

Advantages

This SFP module offers reliable and cost-effective connectivity for enterprise and service provider networks. Its hot-pluggable design allows for easy installation and maintenance without disrupting network operations. The built-in Digital Diagnostic Monitoring (DDM) provides real-time monitoring of key parameters such as temperature, voltage, and optical power, enabling proactive network management. Compliant with MSA and RoHS standards, it ensures interoperability and environmental safety.

Suitable for

• Gigabit Ethernet networks (1000BASE-BX)
• Fiber Channel storage area networks
• Metro and access network deployments
• Point-to-point fiber optic links

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Max Distance: 3 km
• Fiber Type: Single-Mode (OS2)
• Connector: SC/UPC
• Wavelength: TX 1550 nm / RX 1310 nm
• Duplex: Simplex (single fiber)
• DDM: Supported
• Hot-Pluggable: Yes
• Power Supply: 3.3 V
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with single-mode fiber optic cables terminated with SC/UPC connectors. Ensure that the transceiver is inserted correctly and securely into the SFP port. Avoid exceeding the maximum transmission distance to maintain signal integrity.
