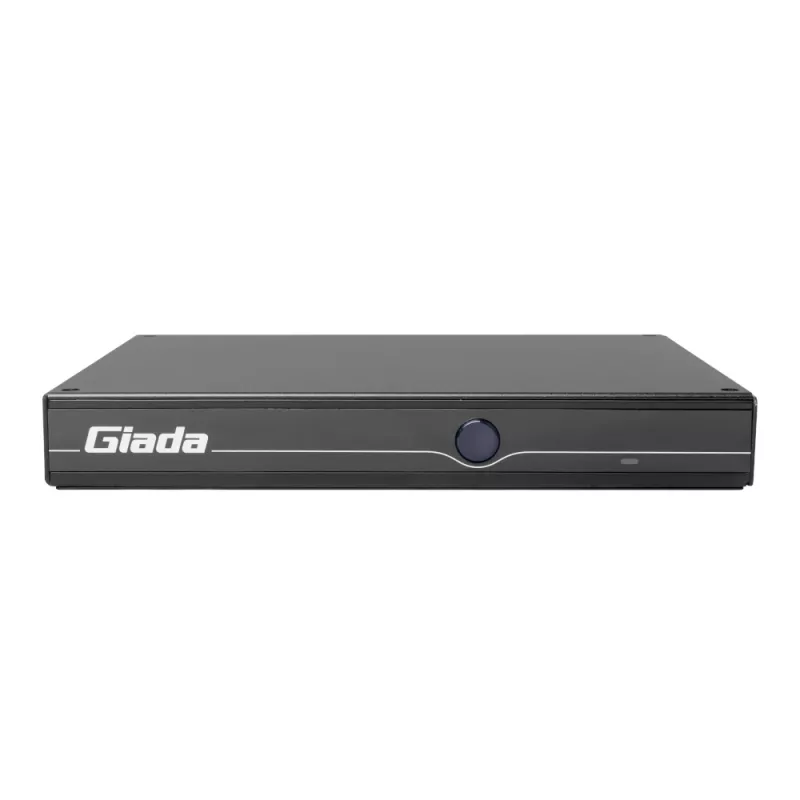

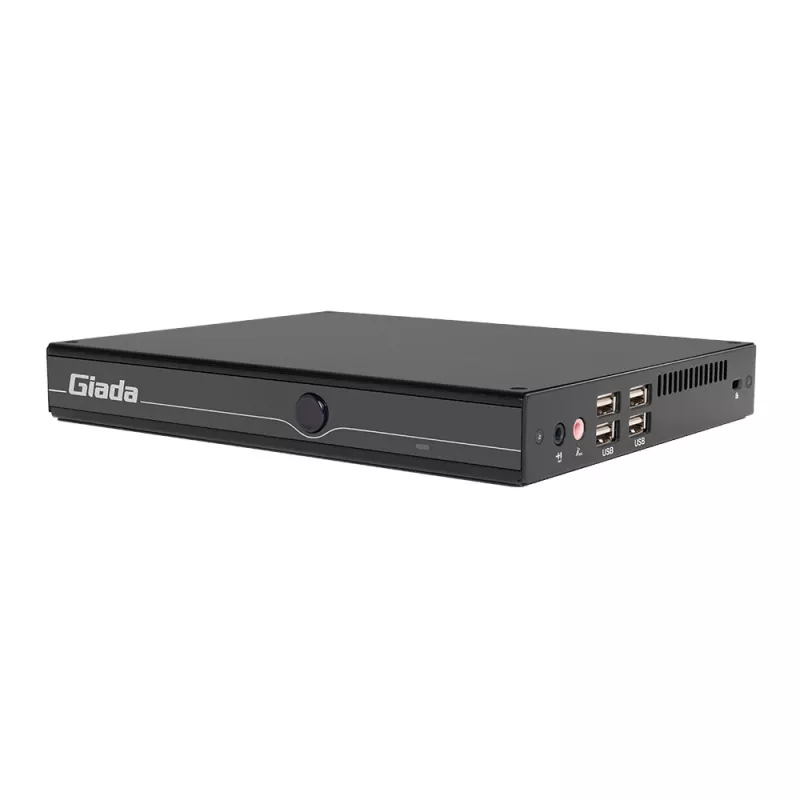

Giada F108D Mini PC, Intel N100, 1x DDR4 3200MHz, 2x HDMI

The Giada F108D is a book-size mini PC and signage player powered by an Intel Processor N100 with Intel UHD onboard graphics. It supports up to 4K resolution and offers dual HDMI plus one DP output, making it suitable for digital signage and kiosk applications.

Key features

• Intel Processor N100 (fanless)
• Intel UHD onboard graphics
• Up to 4K resolution support
• 1x DP and 2x HDMI output
• DDR4 3200MHz memory support
• Small form factor design
• Support for Wi-Fi/Bluetooth module

Specifications

• Brand: Giada
• MPN: F108D-FV-N10040N0G-GIA
• CPU: Intel Processor N100 (Fanless)
• Turbo Frequency: 3.40GHz
• Chipset: SoC
• Processing Units: 4 Cores
• TDP: 6W
• System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
• Memory type: DDR4
• Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Remo on: No
• Power Requirement: DC-IN, 19 V/2.37 A
• Construction: Metal
• Operating System: Windows 11 (64bit) / Linux Ubuntu (64bit)
• Operating System installed: Windows 11
• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
• Certifications: CE, FCC Class B, UKCA
• Humidity: 95% @ 45°C (non-condensing)
• Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 2 x RJ45
• Ethernet LAN: Yes
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
• Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
• GPU: Intel UHD Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0

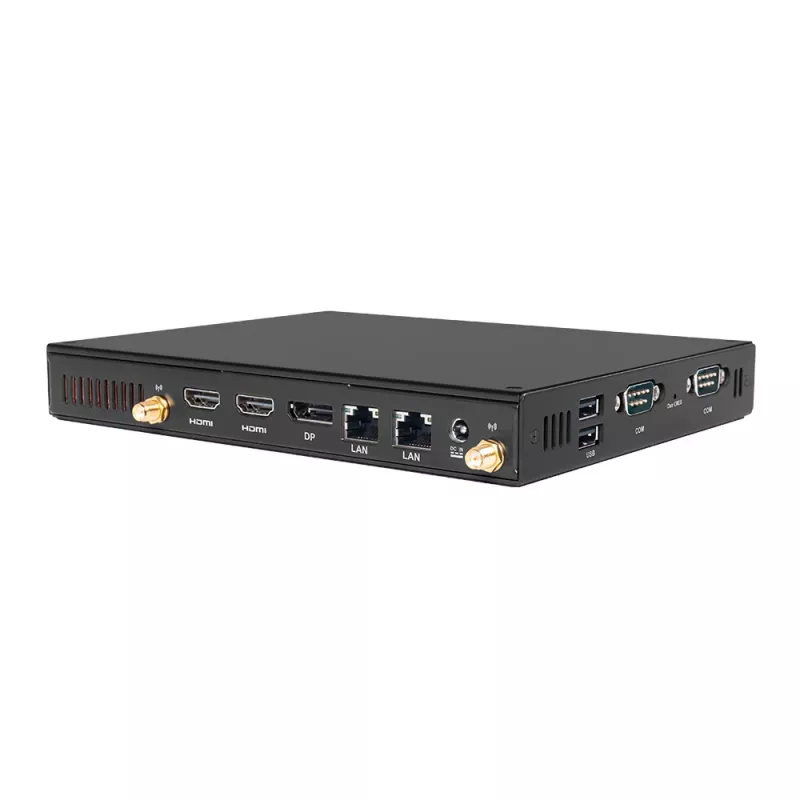

• Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)

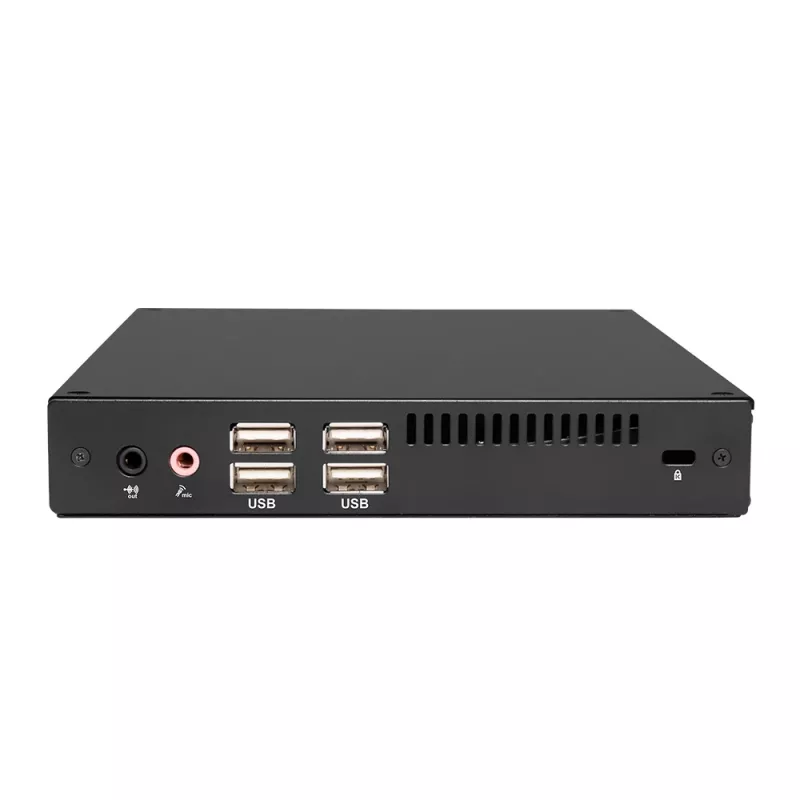

• USB: 2 x USB3.2 Gen2, 4 x USB2.0

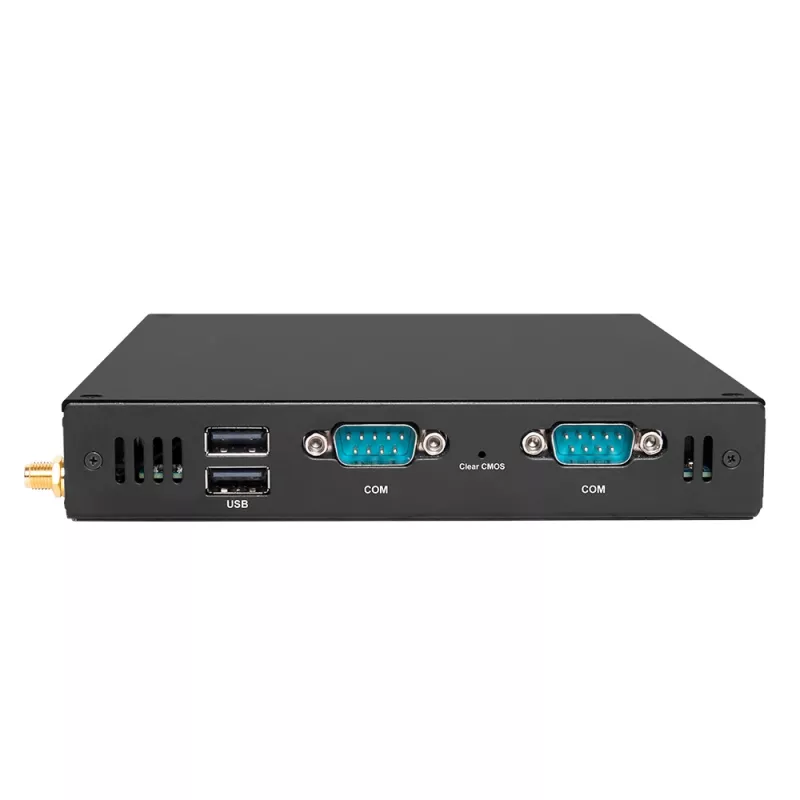

• Serial Port: 2 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-Fi/BT
• Product Dimensions: 18.9 x 14.8 x 2.6 cm
