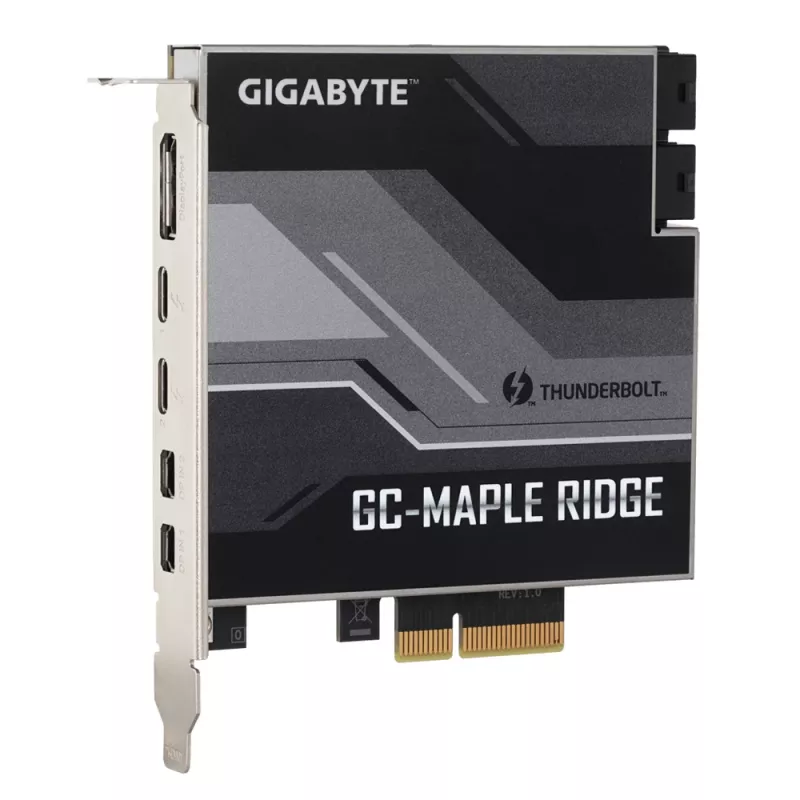

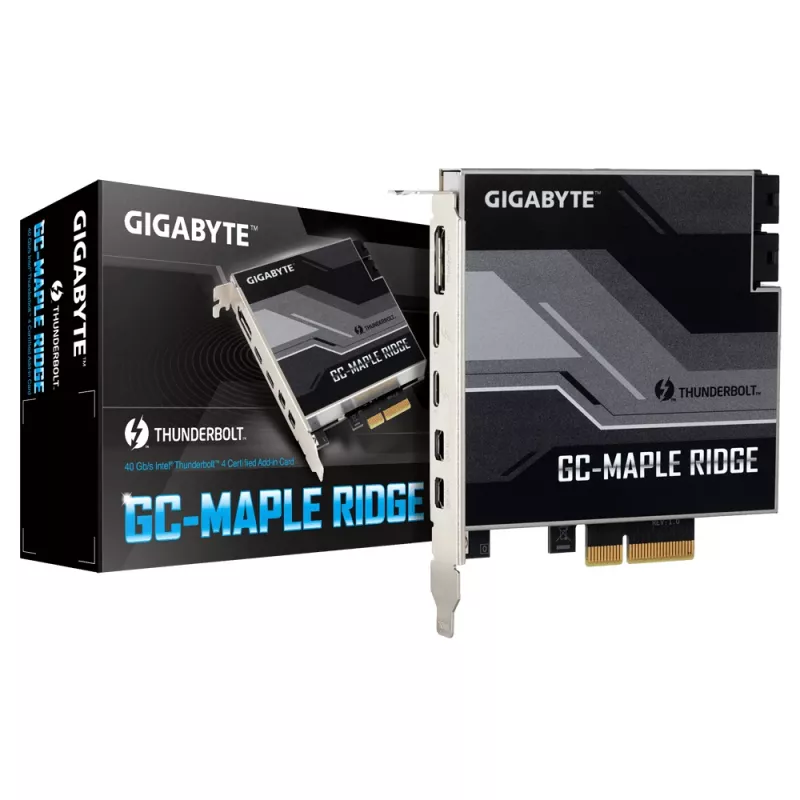

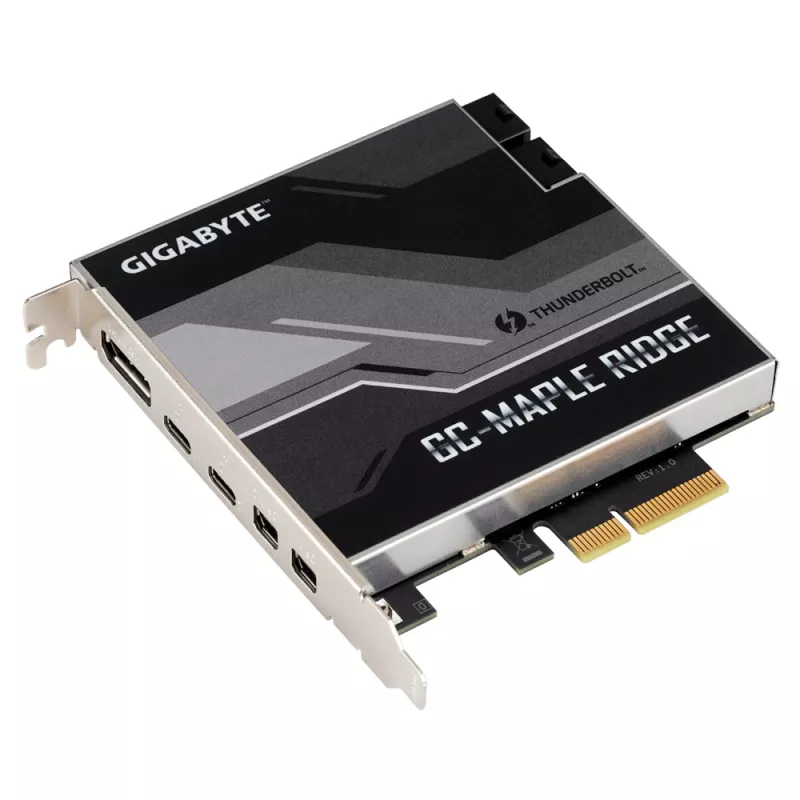

GIGABYTE GC-MAPLE RIDGE Tarjeta adaptadora interna DisplayPort, Mini DisplayPort, Thunderbolt 4, USB 3.2 Gen 2 (3.1 Gen 2)

The GIGABYTE GC-MAPLE RIDGE is a Thunderbolt 4 certified add-in interface card that upgrades compatible GIGABYTE motherboards with high-speed 40 Gb/s connectivity. It uses a PCIe host interface and provides outputs including Thunderbolt 4 over USB Type-C, DisplayPort and Mini DisplayPort. The card supports Power Delivery 3.0 and is finished in a black and grey design suitable for modern systems.

Advantages

Delivers up to 40 Gb/s single-wire bandwidth for fast transfers and low latency, supports dual Thunderbolt 4 ports for daisy-chaining multiple devices, and enables two 4K@60Hz displays via DisplayPort 1.4 support. The add-in card expands connectivity on compatible GIGABYTE motherboards without replacing the whole system and includes support for USB 3.2 Gen 2 speeds where applicable.

Suitable for

• Users who need high-speed external storage and backup workflows
• Content creators requiring dual 4K@60Hz display output
• Professionals connecting multiple Thunderbolt peripherals and docks
• Upgrading a compatible GIGABYTE motherboard to Thunderbolt 4 connectivity

Key specifications

• Model: GIGABYTE GC-MAPLE RIDGE (MPN: GC-MAPLE RIDGE)
• Interface: PCIe host interface
• Thunderbolt: Thunderbolt 4, up to 40 Gb/s per port
• Ports: Dual USB Type-C (Thunderbolt 4), DisplayPort, Mini DisplayPort
• Display support: Up to two 4K displays at 60 Hz (via DisplayPort 1.4)
• Power Delivery: PD 3.0 support
• Colour: Black, Grey
• EAN: 4719331819729

How to use

Install the GC-MAPLE RIDGE into an available PCIe slot on a GIGABYTE motherboard that provides the required Thunderbolt header. Connect the card to the motherboard Thunderbolt header following the motherboard manual, install any necessary drivers and firmware updates from GIGABYTE, then connect displays, external drives or docks to the card's USB Type-C / Thunderbolt ports. Configure display settings in your operating system to enable multi-display setups.

Recommendations

Ensure your GIGABYTE motherboard is listed as compatible and has the Thunderbolt header before purchase. Update motherboard BIOS and the card's firmware to the latest versions for optimal performance and compatibility. Use certified Thunderbolt 4 or high-quality USB-C cables for full 40 Gb/s throughput and reliable Power Delivery.
