GIGABYTE H810M K placa base Micro ATX para Intel Core Ultra (Serie 2) — LGA 1851, DDR5 hasta 6400 MHz, 1x PCIe 4.0 M.2, 1GbE

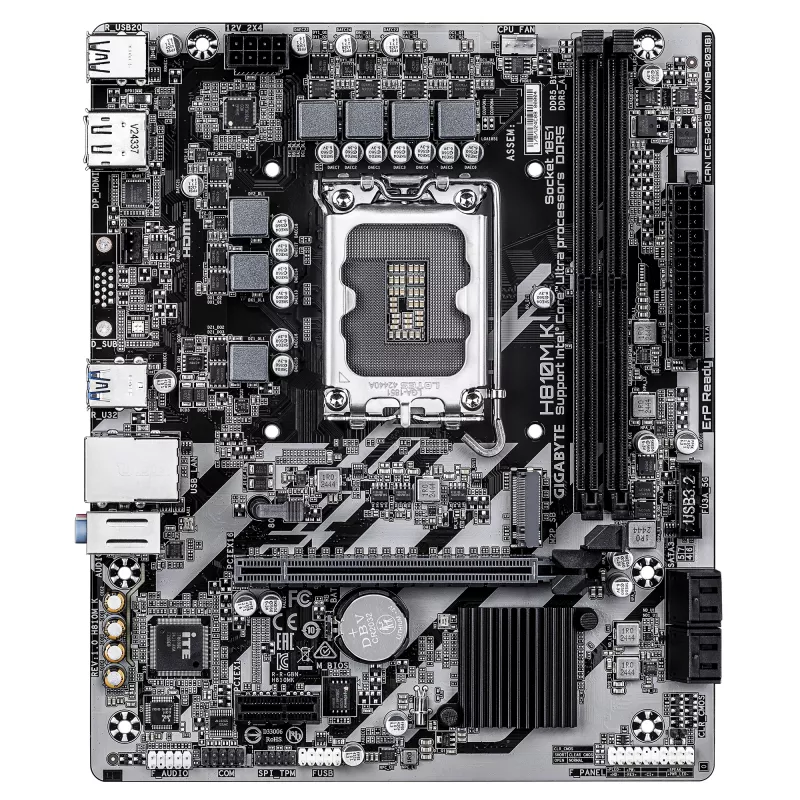

The GIGABYTE H810M K is a Micro ATX motherboard designed for Intel Core Ultra (Series 2) processors using the LGA 1851 (Socket V1). It supports DDR5 memory across two DIMM slots for up to 128 GB at speeds up to 6400 MHz, and provides modern connectivity with one PCIe 4.0 M.2 slot, SATA III storage support and a Gigabit Ethernet controller. The board uses an Intel H810 chipset and a 3+1+2 phase VRM configuration for basic power delivery in compact desktop, home and office systems.

Advantages

The compact Micro ATX form factor balances small-system compatibility with essential expansion options. Native support for DDR5 memory at high frequencies enables improved memory bandwidth for multitasking and light content workflows. Integrated Gigabit LAN and USB 3.2 Gen 1 connectivity facilitate reliable wired networking and common peripheral connections. The single PCIe 4.0 M.2 slot allows installation of a high-speed NVMe SSD while SATA III ports permit additional HDD or SATA SSD storage.

Suitable for

• Compact home and office desktops
• Entry-level workstations for productivity tasks
• Small-form-factor builds where DDR5 support is required
• Systems prioritizing a balance of connectivity and memory performance

Key specifications

• Form factor: Micro ATX
• Chipset: Intel H810
• CPU socket: LGA 1851 (Socket V1) — supports Intel Core Ultra (Series 2)
• Memory: 2 x DDR5 DIMM slots, up to 128 GB, up to 6400 MHz
• Storage interfaces: 1 x PCIe 4.0 M.2 slot, SATA III support
• Expansion slots: PCI Express x1 (Gen3) available
• Network: Realtek Gigabit Ethernet controller
• Power delivery: 3+1+2 phase VRM configuration
• Supported system type: PC / Micro ATX builds
• Weight: 0.688 kg

How to use

Install the GIGABYTE H810M K into a Micro ATX compatible chassis and secure it to the standoffs. Fit an Intel Core Ultra (Series 2) CPU into the LGA 1851 socket following the processor and motherboard installation guides, apply compatible cooling, and populate up to two DDR5 DIMM modules according to the recommended slot population in the manual. Connect power from the PSU to the 24-pin ATX and CPU power headers, attach storage devices to the M.2 slot or SATA III ports, and install any add-in cards into available expansion slots. Complete initial setup using the UEFI BIOS to configure boot order, memory profiles, and integrated device settings.

Recommendations

For stable operation, use a power supply that meets the processor and system requirements and install memory modules matched in capacity and speed. Update the motherboard UEFI to the latest version before first use and consult the manual for recommended DIMM population and storage configuration to achieve optimal performance with DDR5 memory and PCIe storage.
