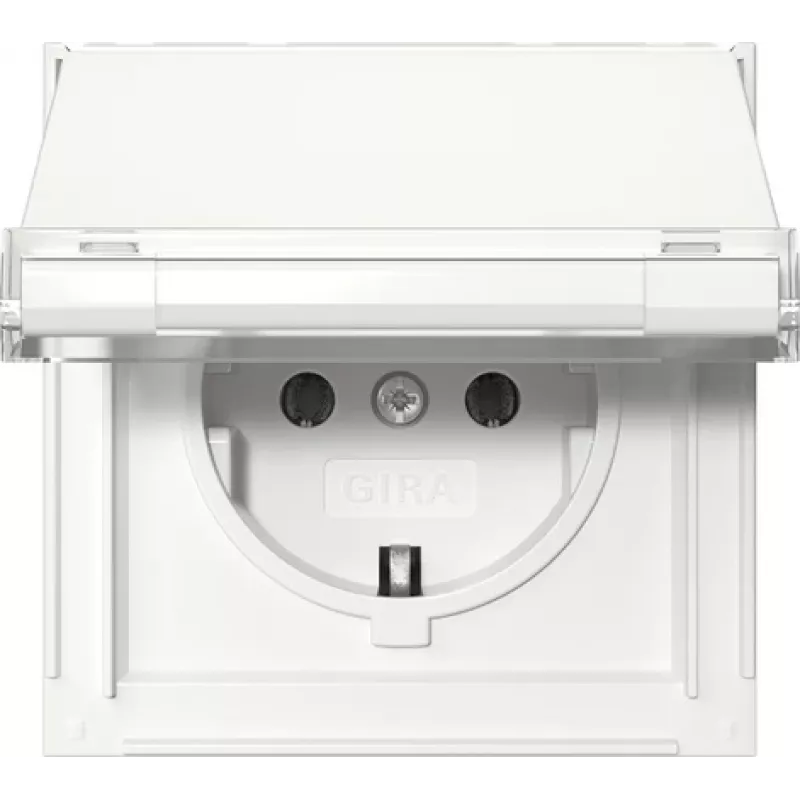

GIRA 441066 toma SCHUKO con tapa abatible, Gira TX_44, blanco puro

SCHUKO socket outlet from the Gira TX_44 design line, equipped with a hinged lid and labelling field. The shatterproof thermoplastic housing in pure white (RAL 9010) is UV-resistant and halogen-free, suitable for outdoor and damp locations when installed with appropriate TX_44 frames.

Advantages

Hinged lid protects the socket from dust and moisture. Labelling field allows clear identification of circuits. Robust construction withstands mechanical impact.

Suitable for

• Outdoor areas and damp rooms
• Commercial and residential installations
• Flush-mounted installation in standard boxes

Key specifications

• Nominal voltage: 250 V AC
• Nominal current: 16 A
• Frequency: 50/60 Hz
• Connection: screw terminals
• Protection class: IP44 (with TX_44 frames/housings)
• Material: thermoplastic, shatterproof
• Colour: pure white (RAL 9010)

Recommendations

Combine with Gira TX_44 frames and covers for a complete weather-resistant installation. Ensure proper sealing to maintain IP44 rating.
