Gira Carcasa de superficie 2 elementos 1x2 blanco puro RAL 9010 5502902

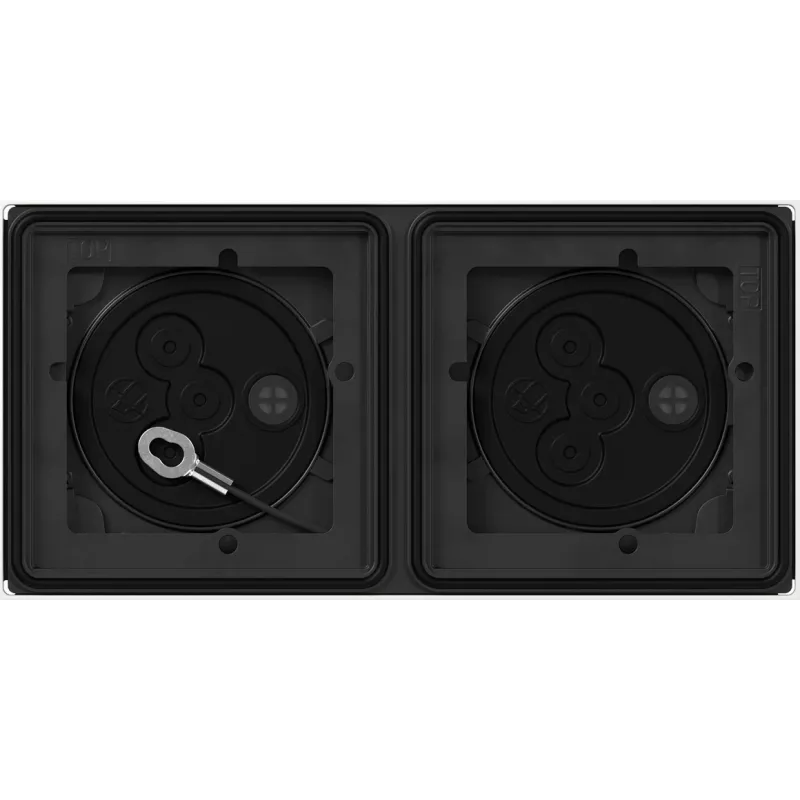

Installing switches and sockets on solid walls or in areas where flush-mounted boxes are not an option often requires a reliable surface-mount solution. This Gira surface-mount housing provides a clean, professional enclosure for two modules in a 1x2 configuration, compatible with Gira System 55, E2, Event, Esprit, and Standard 55 inserts.

Who is it for

Electricians and installers who need a robust, shatterproof surface-mount box for residential or commercial projects. Ideal for retrofits, solid-wall installations, and applications where flush-mounting is impractical.

Main features

• Surface-mounted (AP) design for easy installation on any wall.
• Accommodates 2 modules in a 1x2 arrangement.
• Pure white (RAL 9010) finish with a flat, modern look.
• Made from halogen-free, UV-resistant thermoplastic.
• Pre-punched cable entries on top, bottom, sides, and rear for flexible wiring.
• Compatible with a wide range of Gira inserts, including switches, sockets, push-buttons, and dimmers.

Specifications

• Mounting type: Surface-mounted
• Number of units: 2-gang
• Number of modules: 2 (1x2)
• Colour: Pure white
• RAL colour: RAL 9010
• Material: Thermoplastic (shatterproof)
• Halogen-free: Yes
• UV-resistant: Yes
• Internal depth: 28 mm
• Operating temperature: -5 °C to +40 °C

Tips

For a seamless look, pair this housing with Gira inserts in matching pure white. Ensure proper sealing in damp environments by using appropriate cable glands.
