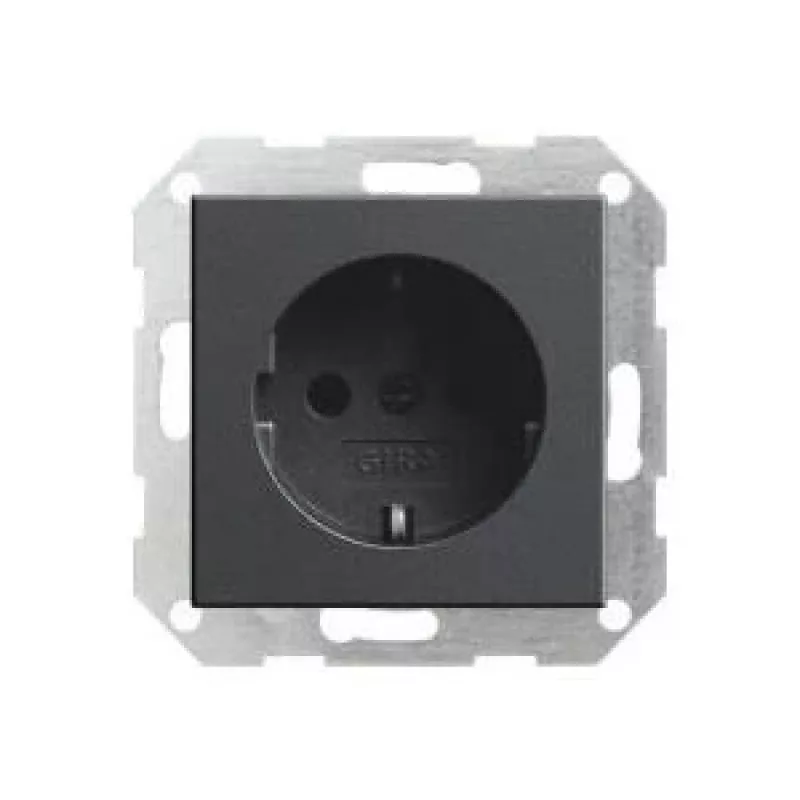

Gira mecanismo de toma de corriente Schuko, System 55, antracita 018828

Rated for 16 A at 250 V, this flush-mounted Schuko socket insert from Gira System 55 delivers reliable power in a compact, halogen-free thermoplastic body finished in anthracite.

Overview

The Gira 018828 is a protective-contact (Schuko, Type F) socket insert designed for flush mounting in dry indoor locations. It features screw terminals for secure conductor connection and a matt surface finish. The insert is compatible with Gira cover frames from the System 55, Standard 55, E2, Event, Event Klar, Event Opak, Esprit, and ClassiX ranges, allowing it to blend seamlessly into existing installations.

What stands out

• 16 A / 250 V AC rating for standard household and office loads
• Schuko (Type F) protective-contact socket for earthed plugs
• Halogen-free thermoplastic construction
• Compatible with multiple Gira design lines: System 55, Standard 55, E2, Event, Esprit, ClassiX
• Matt anthracite finish

Technical details

• Socket type: Schutzkontakt (Schuko, Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection: Screw terminals
• Mounting: Flush-mounted (Unterputz)
• Material: Thermoplastic
• Colour: Anthracite
• Surface finish: Matt
• IP rating: IP20
• Installation depth: approx. 32 mm
• Suitable for: Indoor use, dry rooms
• Number of sockets: 1
• Child protection: No
• Halogen-free: Yes

Our verdict

A dependable Schuko socket insert that pairs with a wide range of Gira frame styles, offering straightforward installation and a clean anthracite look for modern interiors.
