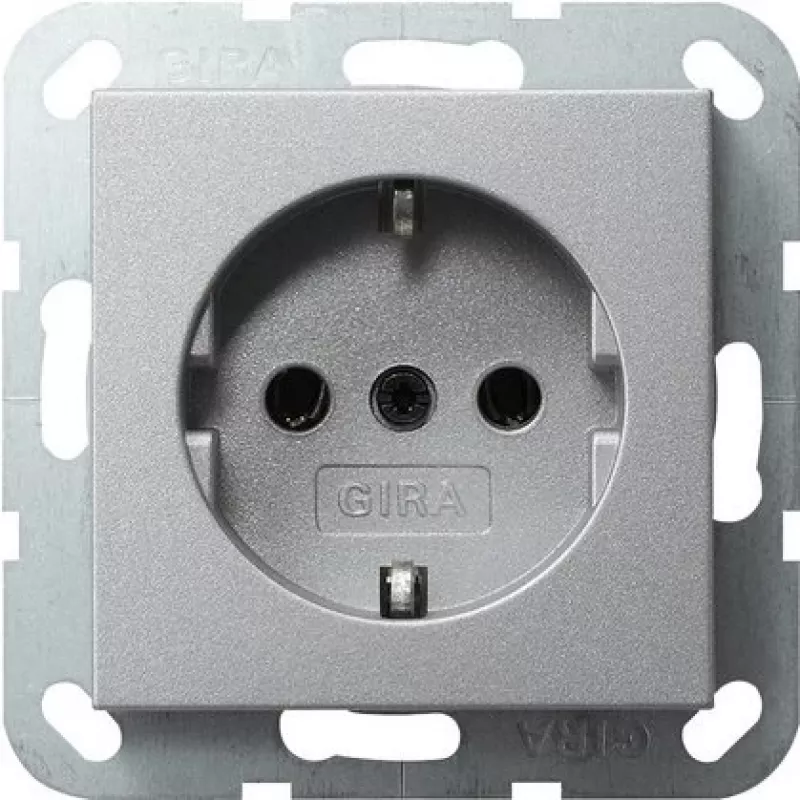

Gira Mecanismo de toma Schuko System 55, Standard 55, E2, Event, Event Klar, Event Opak, Esprit (018826)

When renovating or installing electrical outlets, finding a reliable socket insert that fits multiple design lines can be a challenge. The Gira Schuko Socket Insert (model 018826) solves this by providing a single flush-mounted mechanism compatible with Gira System 55, Standard 55, E2, Event, Event Klar, Event Opak, and Esprit cover frames. This allows you to maintain a consistent look across different rooms without stocking multiple insert types.

Who is it for

Electricians, contractors, and DIY enthusiasts who need a dependable, child-safe Schuko socket for indoor residential or commercial installations. Ideal for those using Gira's modular switch ranges and seeking a pure white mechanism that blends with standard cover plates.

Main features

• Type F (Schuko) socket outlet, 2-pole + earth, rated 250 V AC, 16 A
• Increased touch protection (child safety) to prevent accidental contact
• Flush-mounted design with screw terminals for conductors up to 2.5 mm²
• Compatible with Gira System 55, Standard 55, E2, Event, Event Klar, Event Opak, and Esprit cover frames
• Thermoplastic construction in pure white (similar to RAL 9010)
• Compact installation depth of approximately 32 mm

Specifications

• Product type: Schuko socket insert
• Socket standard: Type F (Schuko)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Number of sockets: 1
• Number of poles: 2P+E
• Mounting type: Flush-mounted (Unterputz)
• Connection method: Screw terminals
• Conductor cross-section: up to 2.5 mm² (rigid conductors)
• Material: Thermoplastic
• Colour: Pure white (similar to RAL 9010)
• Protection degree: IP20
• Installation depth: approx. 32 mm
• Operating temperature: -5 °C to +40 °C
• Application area: Indoor use
• Compatible design lines: Gira System 55, Standard 55, E2, Event, Event Klar, Event Opak, Esprit

Tips

Pair this insert with a Gira cover frame from the same design line for a seamless finish. Ensure the power is off before installation and use appropriate screwdrivers for the terminals. The child protection feature makes it suitable for homes with young children.
