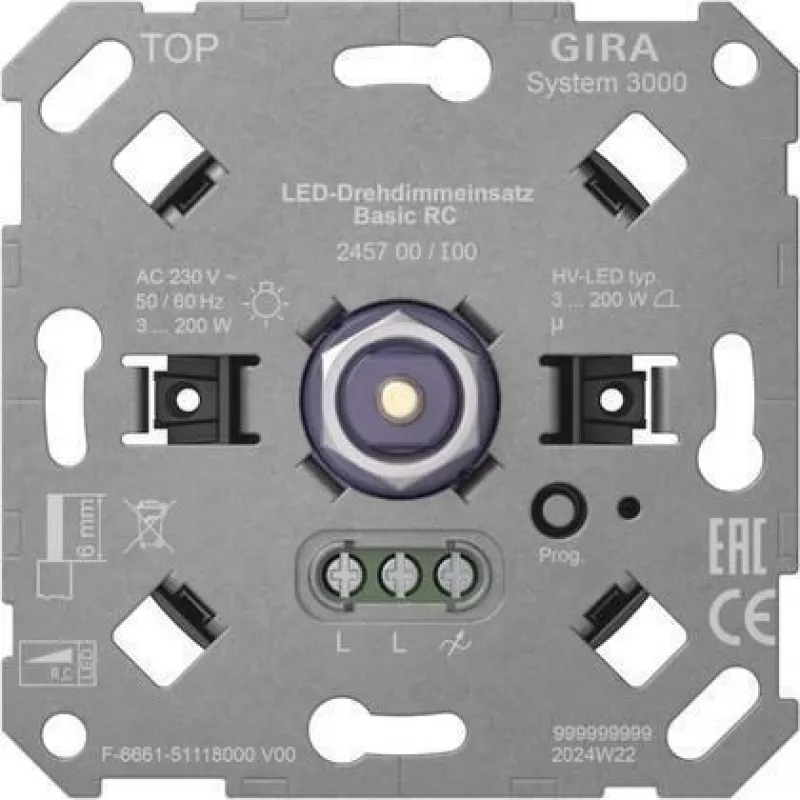

Gira Módulo regulador LED giratorio Basic RC System 3000 245700

Control a wide range of dimmable LED, incandescent, and halogen lighting with precision using the Gira LED Rotary Dimmer Insert Basic RC. This flush-mounted insert supports both leading edge (RC) and trailing edge (RL) dimming principles, delivering smooth, flicker-free performance for loads from 3 W up to 300 W. It operates on 230 V AC and integrates seamlessly into the Gira System 3000 platform, making it a versatile choice for modern residential and commercial installations.

Overview

The Gira 245700 is a universal rotary dimmer insert designed for flush-mounted installation. It requires a suitable cover and rotary knob (available separately) to complete the assembly. The insert features electronic short-circuit and overload protection, ensuring reliable operation and longevity. Its soft start function extends lamp life by gently ramping up brightness, while the memory function recalls the last set dimming level after switching off.

What stands out

• Supports both leading edge (RC) and trailing edge (RL) dimming for maximum compatibility.
• Wide load range: 3–300 W for LED, 20–300 W for incandescent/halogen, and 20–300 VA for inductive transformers.
• Electronic short-circuit and overload protection for enhanced safety.
• Soft start and memory function for user convenience.
• Compact flush-mounted design with only 32 mm installation depth.
• Part of the Gira System 3000, allowing integration with other system components.

Technical details

• Dimmer type: Universal rotary dimmer insert
• Dimming principle: Leading edge (RC) / Trailing edge (RL)
• Load compatibility: Dimmable HV-LED, incandescent, HV halogen, electronic transformers, inductive transformers
• LED load (trailing edge): 3–300 W
• LED load (leading edge): 3–100 W
• Incandescent/HV halogen load: 20–300 W
• Electronic transformer load: 20–300 W
• Inductive transformer load: 20–300 VA
• Operating voltage: 230 V AC, 50/60 Hz
• Installation type: Flush-mounted insert
• Control method: Rotary (requires suitable cover/knob)
• Protection: Electronic short-circuit and overload protection
• Special features: Soft start, memory function
• Connection: Screw terminals
• Ambient temperature: -20 °C to +45 °C
• System compatibility: Gira System 3000
• Installation depth: Approx. 32 mm

Our verdict

The Gira LED Rotary Dimmer Insert Basic RC is a robust and flexible solution for dimming a variety of light sources. Its dual dimming principles and comprehensive protection features make it a reliable choice for professional installers and discerning homeowners alike. Pair it with a Gira System 3000 cover and rotary knob for a seamless, modern look.
