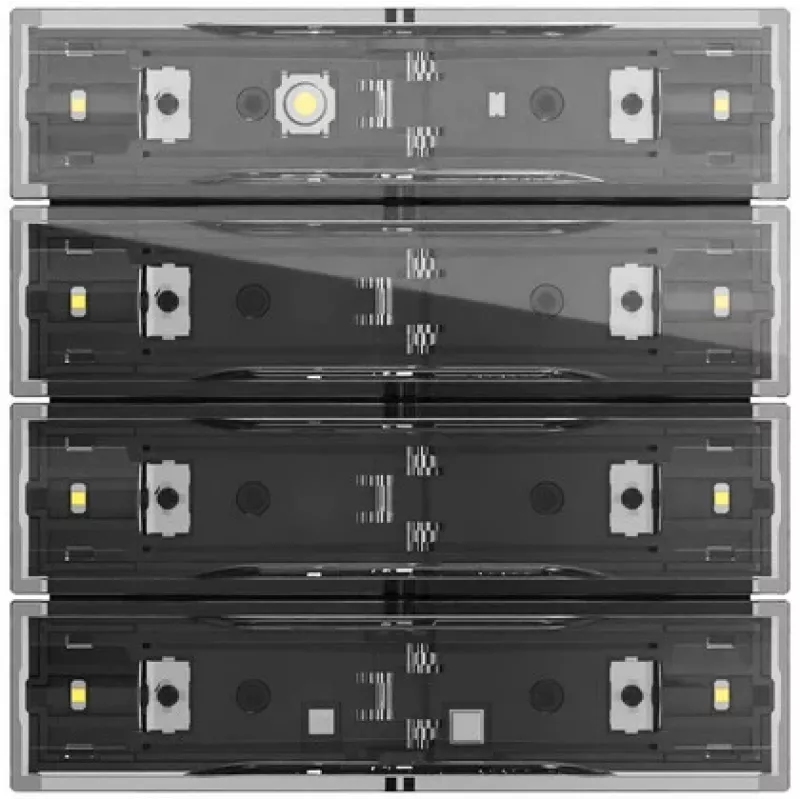

Gira Tastsens.4.70 Comfort 4f OneKNX 534400 panel táctil KNX con 4 teclas capacitivas y pantalla en color

The Gira Tastsens.4.70 Komfort 4f OneKNX 534400 stands out as a multifunctional KNX room controller that combines four capacitive touch buttons with a high-resolution color graphic display. Unlike conventional push-button sensors, this device integrates temperature, humidity, proximity, and brightness sensors, enabling intelligent automation based on environmental conditions. Haptic vibration and acoustic feedback confirm every touch, while the integrated room temperature controller and logic functions allow for sophisticated climate and scene management without additional modules.

Highlights

• 4 capacitive touch buttons with haptic and acoustic feedback
• Integrated color graphic display for status, temperature, humidity, time, date, and messages
• Built-in sensors: temperature, humidity, proximity, and brightness
• Integrated room temperature controller for precise climate control
• Supports up to 16 scenes and 5 logic blocks
• Flush-mounted design compatible with Gira System 55, E2, E3, Event, and Esprit frames

In daily use

This KNX touch panel serves as a central interface for lighting, shading, and HVAC control. The proximity sensor wakes the display as you approach, while the brightness sensor automatically adjusts display illumination to ambient light. The integrated room temperature controller maintains your preferred climate, and the logic blocks enable custom automation without a separate controller. Programming and firmware updates are performed via ETS software, ensuring future-proof integration into KNX installations.

Full specifications

• System: KNX
• Number of buttons: 4
• Operating principle: Capacitive touch
• Display: Color graphic display
• Display functions: Status, temperature, humidity, time, date, messages
• Integrated sensors: Temperature, humidity, proximity, brightness
• Feedback: Haptic (vibration), acoustic (beeper), LED indicators
• Room temperature controller: Integrated
• Logic functions: 5 logic blocks
• Scene functions: 16 scenes
• Mounting type: Flush-mounted
• Power supply: KNX bus voltage
• Programming software: ETS
• Compatible frames: Gira System 55, E2, E3, Event, Esprit
• Material: High-quality plastic
• Colour: Pure white glossy
• Firmware update: Via ETS

Final note

The Gira Tastsens.4.70 Komfort 4f OneKNX 534400 delivers a complete room control solution in a sleek, flush-mounted design, making it an ideal choice for modern KNX smart homes and buildings.
