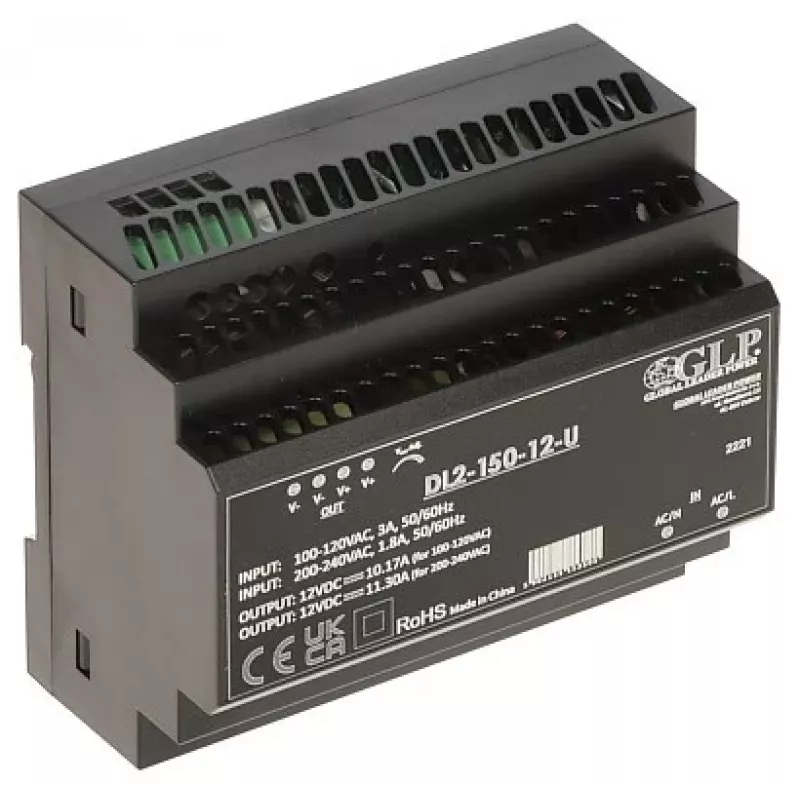

GLP Fuente de alimentación conmutada DL2-150-12-U 150W 12V 12.5A fuente de alimentación industrial para carril DIN

The GLP DL2-150-12-U is a robust 150W switching power supply that delivers a stable 12V DC output at up to 12.5A, making it an ideal choice for industrial automation, LED lighting, and control systems. Its enclosed metal case and free air convection cooling ensure dependable operation even in demanding environments.

Advantages

With efficiency above 85%, this unit minimizes energy waste and heat generation. Comprehensive protections—overload, short circuit, and over voltage—safeguard connected equipment. The wide 100–240V AC input range suits global use, while the screw terminal block simplifies installation.

Suitable for

• Industrial control panels and PLC systems
• LED lighting and signage
• Test and measurement equipment
• Telecommunications devices
• CNC machines and automation

Key specifications

• Output power: 150 W
• Output voltage: 12 V DC (adjustable 10.8–13.2 V)
• Output current: 12.5 A
• Input voltage: 100–240 V AC, 50/60 Hz
• Efficiency: >85%
• Protections: overload, short circuit, over voltage
• Cooling: free air convection
• Operating temperature: -20°C to +50°C
• Certifications: CE, RoHS

Recommendations

For reliable 12V DC power in industrial applications, the GLP DL2-150-12-U offers excellent performance and durability. Pair it with appropriate fusing and wiring for optimal safety.
