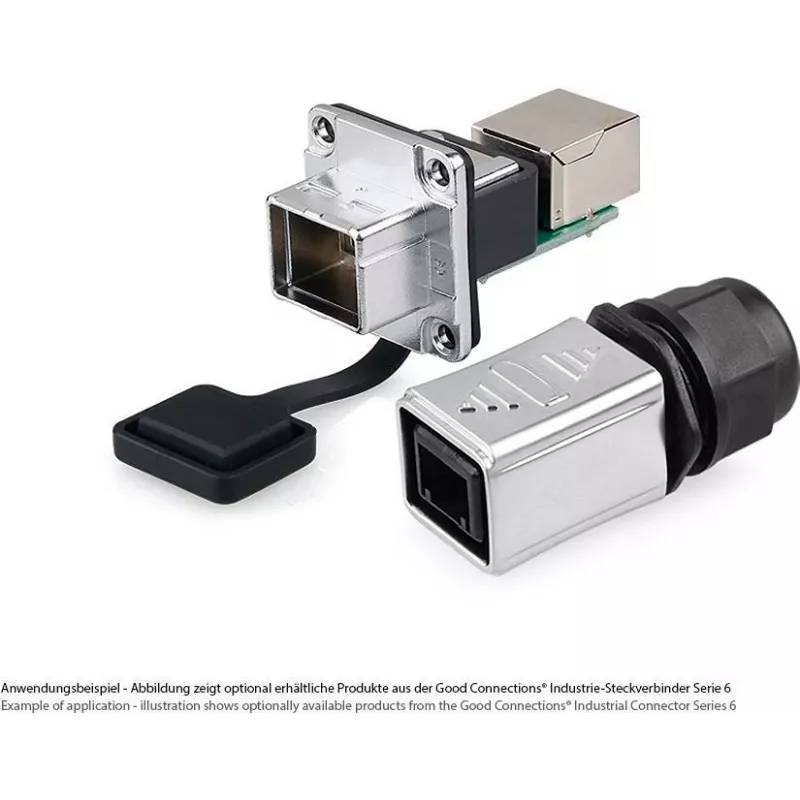

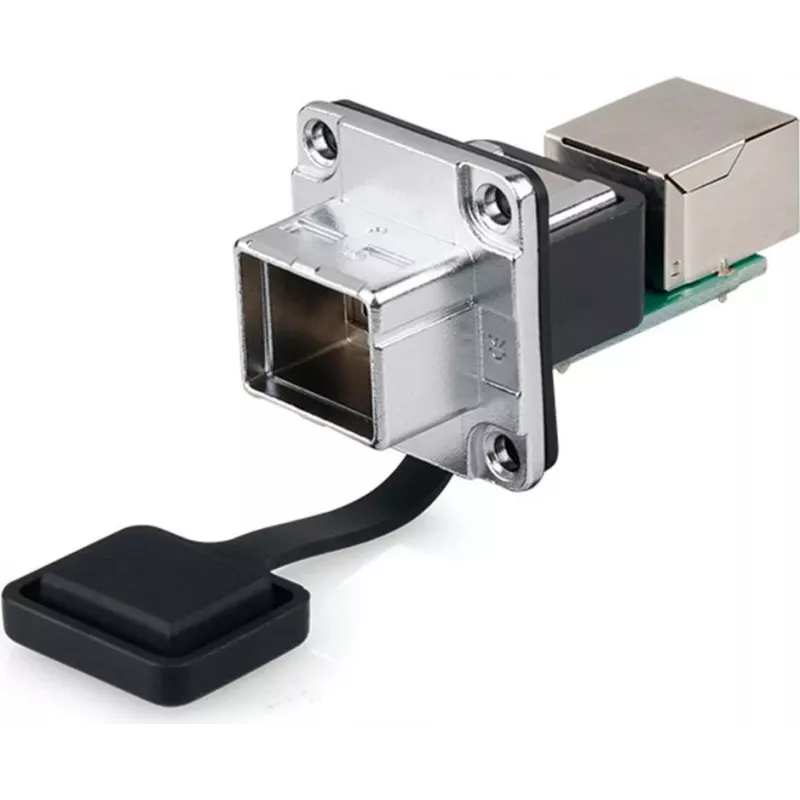

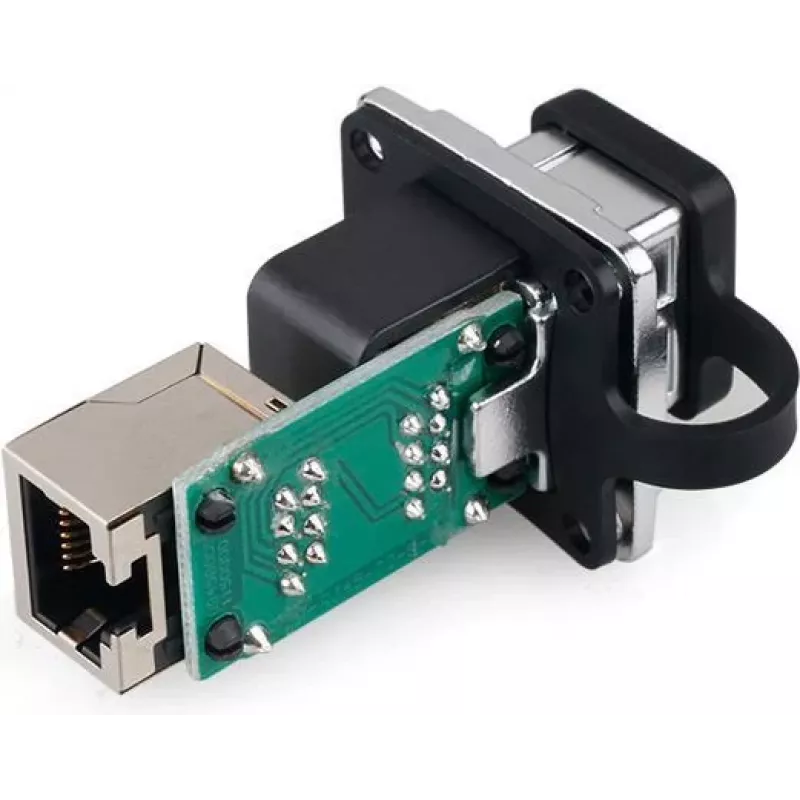

GoodConnections Alcasa IC06-R302 acoplador RJ45 industrial, IP65/IP67, gris, carcasa de zinc, -40 a 80°C

Harsh industrial environments demand network connections that can withstand dust, moisture, and extreme temperatures—standard RJ45 couplers simply fail under such conditions. The GoodConnections Alcasa IC06-R302 is a robust field-installable RJ45 coupler engineered to keep your Ethernet links stable in the toughest settings. With dual ingress protection ratings (IP65 and IP67), a rugged zinc and plastic housing, and an operating range from -40 to 80 °C, this coupler ensures reliable data transmission even when exposed to water jets, temporary immersion, or severe temperature swings.

Who is it for

This coupler is built for industrial automation engineers, outdoor network installers, and maintenance teams working in manufacturing plants, logistics hubs, or remote infrastructure. It is equally suited for anyone needing a dependable RJ45 connection point in washdown areas, dusty warehouses, or unheated enclosures.

Main features

• Dual IP ratings: IP65 (dust-tight, low-pressure water jets) and IP67 (dust-tight, temporary immersion) for maximum environmental protection.
• Wide operating temperature range from -40 to 80 °C, ensuring performance in extreme cold and heat.
• Durable housing combining plastic and zinc for corrosion resistance and mechanical strength.
• Silica gel sealing material prevents moisture ingress and maintains connection integrity.
• Standard RJ45 (8P8C) interface, compatible with all common Ethernet plugs and jacks.
• Field-installable design allows on-site assembly without special tools.
• Resistant to shock, vibration, and corrosion, ideal for moving machinery or outdoor exposure.

Specifications

• Connector type: RJ45 (8P8C) coupler, 1 port
• Ingress protection: IP65 and IP67 (IEC 60529)
• Operating temperature: -40 to 80 °C
• Housing material: Plastic, zinc
• Sealing material: Silica gel
• Colour: Grey
• Installation type: Field-installable
• Compliance: IEC 60529 for IP ratings

Tips

For best results, pair this coupler with shielded or industrial-grade Ethernet cables to maintain signal integrity in noisy environments. When installing outdoors, ensure the mating connectors are also IP-rated to preserve the full protection level. Periodically inspect the sealing surfaces for debris or damage, especially after exposure to harsh chemicals or high-pressure cleaning.
