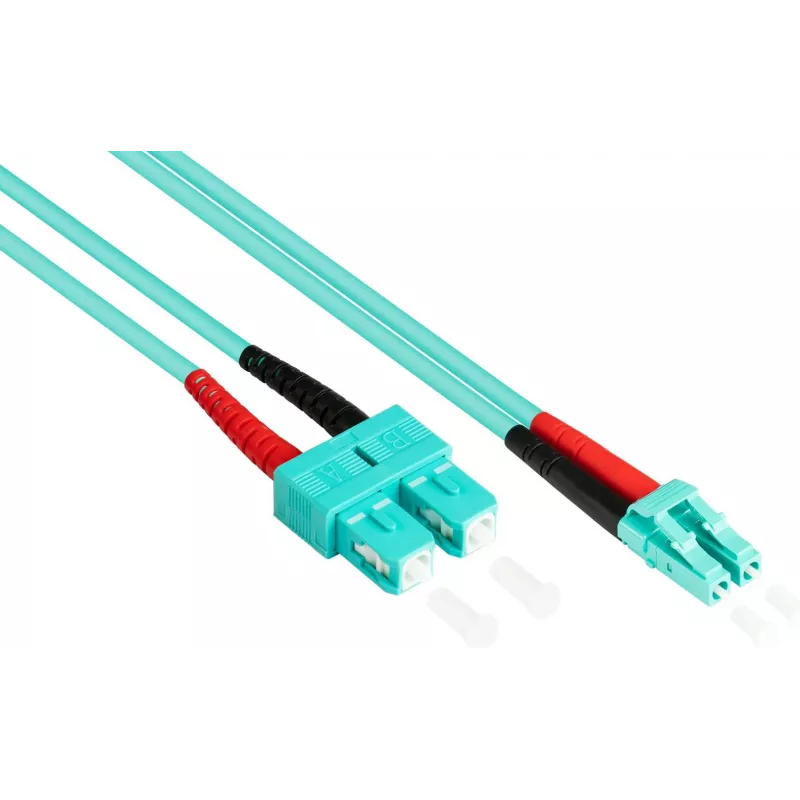

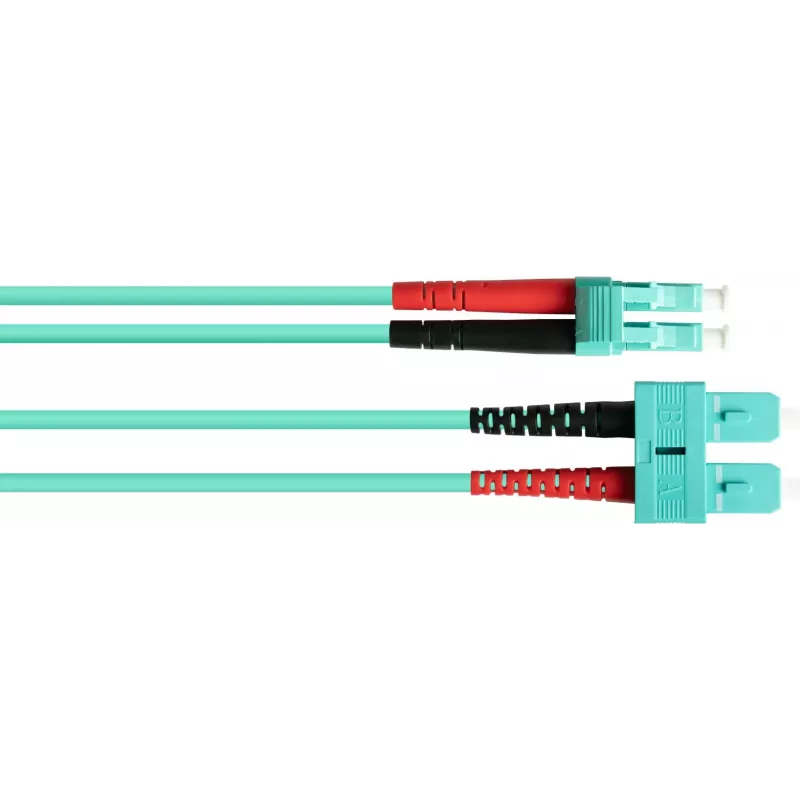

GoodConnections Cable de parcheo de fibra óptica OM3 dúplex multimodo SC a LC, 50/125 µm, 1 m, LSZH aqua LW-801LS3

In a busy data center, a network technician needs a reliable fiber link between a switch with SC ports and a server with LC ports. This GoodConnections OM3 duplex patch cable provides the perfect 1-meter connection, ensuring 10 Gigabit Ethernet performance with low insertion loss. The aqua LSZH jacket is easy to identify and safe for indoor use.

Key specifications

• Fiber type: Multimode OM3, 50/125 µm core/cladding
• Connectors: SC to LC, duplex (2 fibers), PC polish
• Length: 1 m
• Jacket: Aqua LSZH (Low Smoke Zero Halogen)
• Data rate: 10 Gbps up to 300 m, 40/100 Gbps up to 100 m at 850 nm
• Insertion loss: < 0.3 dB; Return loss: > 30 dB
• Wavelengths: 850 nm and 1300 nm
• Compliance: RoHS

Why choose it

This cable is built for high-speed networking in data centers, LANs, and SANs. OM3 fiber supports 10G, 40G, and 100G Ethernet over short distances, making it future-proof for bandwidth-intensive applications. The LSZH jacket emits low smoke and no halogens in case of fire, enhancing safety in enclosed spaces. SC and LC connectors are widely used, ensuring compatibility with a broad range of equipment.

Ideal use cases

• Connecting switches, routers, and servers in data centers
• Backbone links in enterprise LANs
• Storage area networks (SAN) requiring reliable high-speed connections
• Any application needing a short, high-performance multimode fiber patch cable

Good to know

The cable is duplex, meaning it has two fibers for simultaneous transmit and receive. The aqua color is standard for OM3 multimode fiber, simplifying identification. Each connector is polished with PC (Physical Contact) for minimal signal loss. The cable is RoHS compliant, meeting environmental standards.
