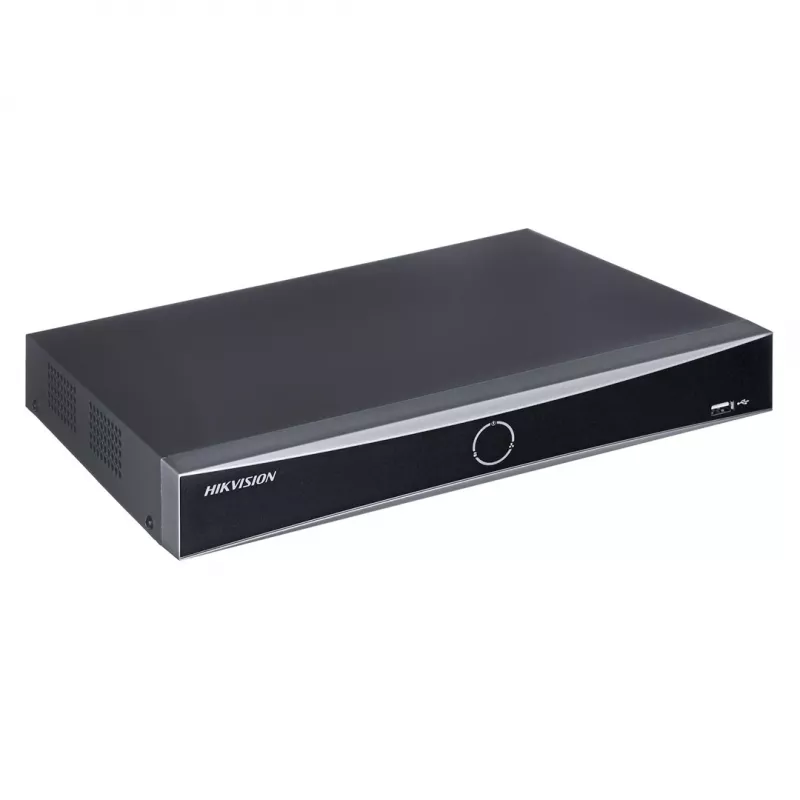

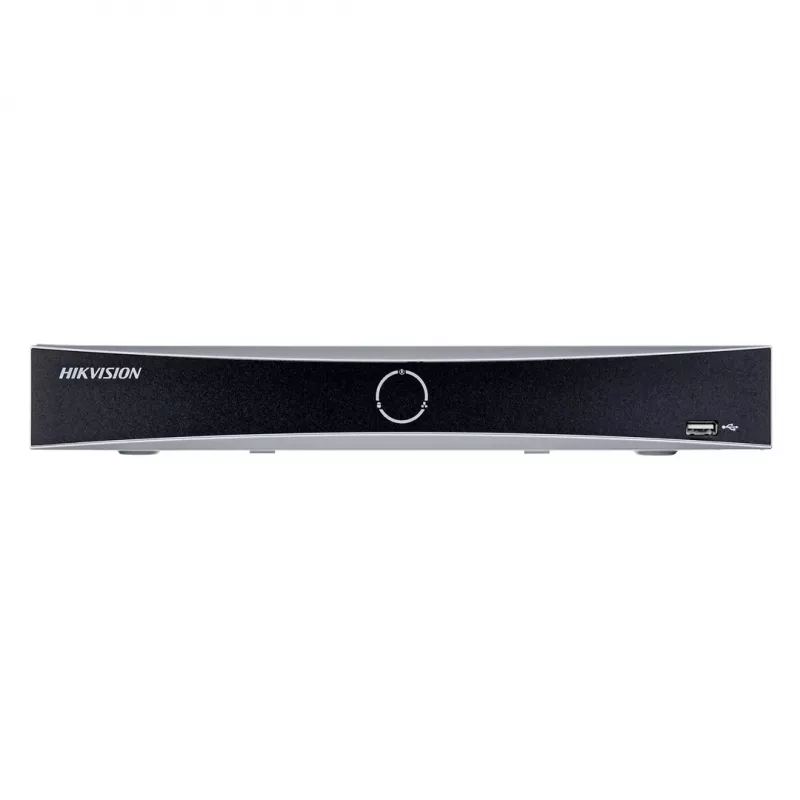

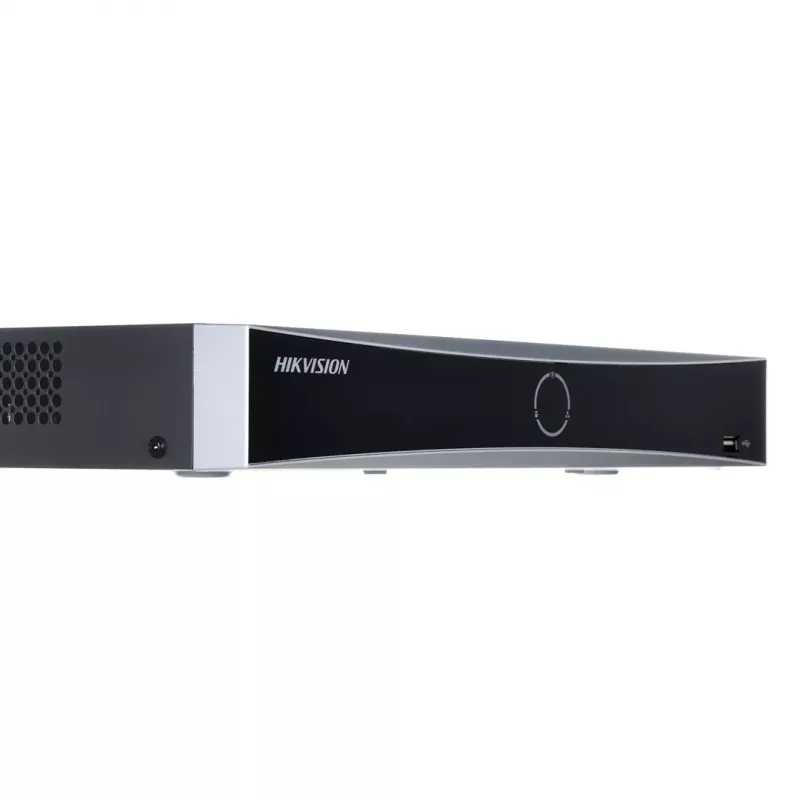

Grabador de vídeo en red Hikvision DS-7604NXI-K1/4P 4 canales 4K

The Network Video Recorder Hikvision DS-7604NXI-K1/4P is a 1U NVR that supports 4 channels with up to 4K (3840 x 2160) resolution. It offers simultaneous HDMI and VGA outputs, H.265+ compression to reduce storage needs, one SATA interface supporting up to 10 TB HDD, and integrated PoE ports for direct camera connection. The device supports smart functions including Motion Detection 2.0, facial recognition, smart search and smart playback to improve monitoring and review efficiency.

Advantages

The DS-7604NXI-K1/4P provides efficient video storage through H.265+ compression and secure stream transmission using TLS. It delivers high-definition output via HDMI up to 4K while offering flexible playback with four-channel synchronous playback. Built-in PoE and a self-adaptive Gigabit Ethernet port simplify network and camera connections.

Suitable for

• Small offices and retail stores requiring 4-channel surveillance
• Residential properties needing high-definition recording and remote access
• Sites where PoE simplifies camera installation and cabling
• Environments needing faster video review with smart search and playback

Key specifications

• Model: Hikvision DS-7604NXI-K1/4P (MPN: DS-7604NXI-K1/4P(D))
• Channels: 4
• Maximum resolution: 3840 x 2160 (4K)
• Video outputs: HDMI (up to 4K) and VGA
• Compression: H.265+
• Storage: 1 × SATA HDD interface (supports up to 10 TB)
• Playback: 4-channel synchronous playback

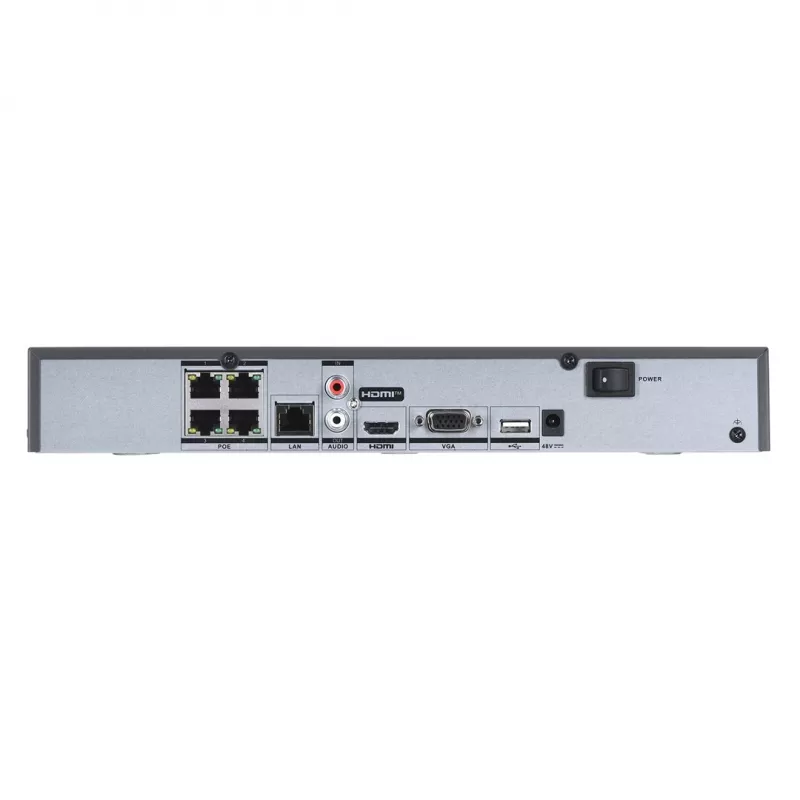

• Network: 4 independent PoE interfaces; 1 self-adaptive 10/100/1000 Mbps Ethernet port (total RJ-45 ports: 5)
• USB: 2 × USB 2.0 ports
• Colour: Black
• Weight: 1 kg

How to use

Install the DS-7604NXI-K1/4P in a suitable 1U rack space or on a stable surface. Connect IP cameras to the built-in PoE ports or to a network switch, and connect the NVR to the network via the Gigabit Ethernet port. Insert a compatible SATA HDD (up to 10 TB) for local recording. Configure camera channels, recording parameters and smart functions such as Motion Detection 2.0 and facial recognition through the NVR web interface or Hik-Connect app. Use HDMI or VGA to connect a monitor for live view and playback.

Recommendations

For reliable long-term recording, use a surveillance-grade HDD and enable H.265+ compression to reduce storage consumption. Keep firmware updated and configure user access via Hik-Connect or local accounts. Place the NVR in a ventilated, dust-free environment and ensure proper backup or export of critical footage.
