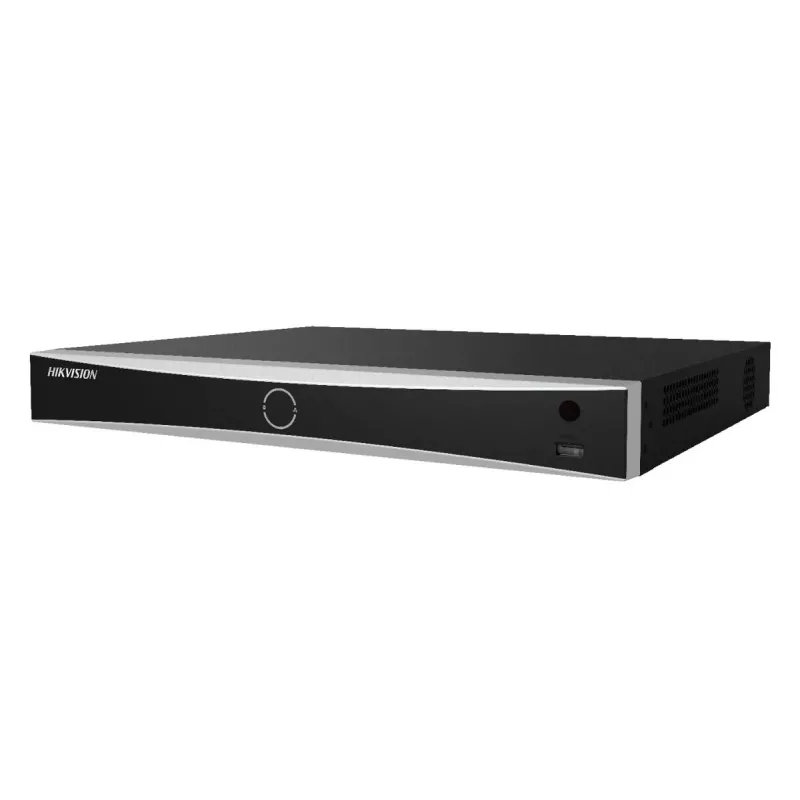

Grabador de vídeo en red Hikvision DS-7608NXI-I2/S(E) 8 canales 4K

The Hikvision DS-7608NXI-I2/S(E) 8 Channels 4K is a 1U network video recorder designed to manage and record video streams from up to eight IP cameras at resolutions up to 3840 x 2160. The device supports common network protocols and offers a compact footprint with efficient power consumption, making it suitable for small to medium surveillance systems requiring 4K recording capability. Built with SATA-compatible storage interfaces, the recorder accepts user-installed hard drives to provide storage capacity up to 14 TB.

Advantages

This network video recorder provides multi-channel 4K recording with optimized bandwidth management and support for a variety of IP camera streams. Dual Ethernet LAN ports enable flexible network topologies and load distribution, while the combination of USB 3.2 Gen 1 and USB 2.0 ports allows for fast data export and peripheral connectivity. The unit’s 1U form factor and lightweight design make it easy to mount in standard racks or place on shelves in equipment rooms.

Suitable for

• Small and medium enterprise surveillance systems
• Retail stores and showrooms requiring high-resolution recording
• Office buildings and reception areas
• Remote monitoring setups with central recording
• Parking lots and outdoor areas covered by 4K IP cameras

Key specifications

• Channels supported: 8 IP camera channels
• Maximum recording resolution: 3840 x 2160 (4K)
• Storage type: SATA / SATA II / SATA III hard drives (user-installed)
• Maximum internal storage capacity: up to 14 TB
• Network interfaces: 2 × Ethernet LAN (RJ-45) ports
• USB ports: 1 × USB 3.2 Gen 1 (Type-A), 1 × USB 2.0
• Form factor: 1U rack-mountable chassis
• Weight: 2.5 kg
• Color: Black

How to use

Install compatible SATA hard drives into the device following the manufacturer’s mounting instructions, then connect the recorder to the network via one of the RJ-45 ports. Add IP cameras through the recorder’s management interface using automatic discovery or manual IP entry, configure channel resolution and recording schedules, and set up user accounts for access control. Use the USB 3.2 Gen 1 port for faster export of archived video files to external storage, or connect a mouse via USB 2.0 for local management. Monitor live feeds and playback recorded video through the recorder’s web client, desktop client, or mobile application as supported.

Recommendations

Ensure hard drives are rated for continuous surveillance operation and sized to meet retention policies; distribute network traffic across both Ethernet ports for larger camera deployments. Regularly update firmware from the vendor to maintain compatibility and security, and schedule periodic maintenance checks for drive health and recording integrity.
