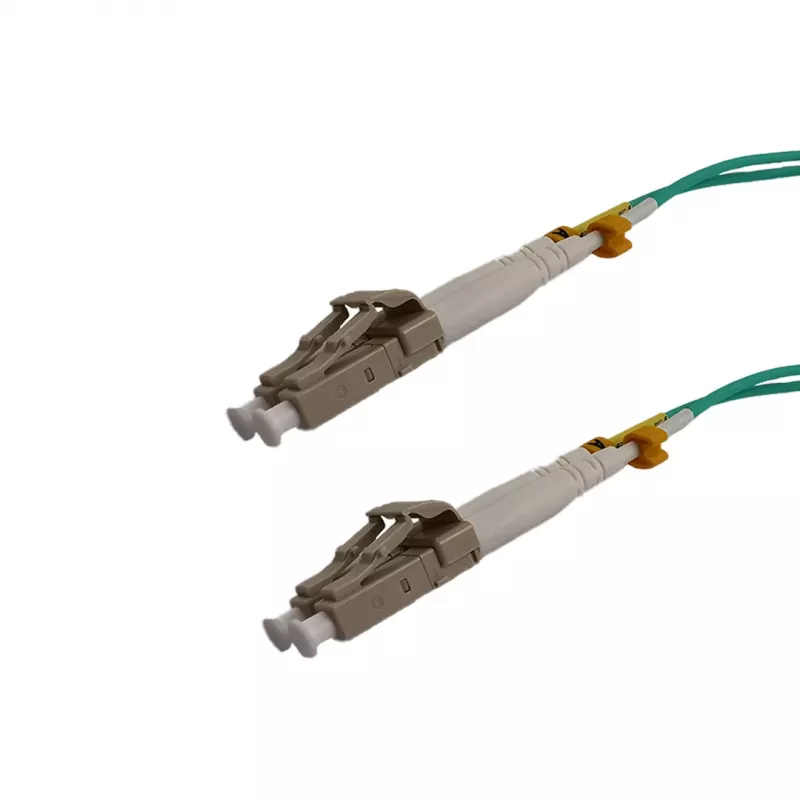

Grafenthal Cable de fibra óptica OM3 LC/UPC-LC/UPC LSZH 3,00m Aqua Blue

The Grafenthal Optical Fibre Cable OM3 LC/UPC-LC/UPC LSZH 3.00m Aqua Blue is a high-performance duplex multimode patch cable designed for reliable 10 Gigabit Ethernet connections in data centers, enterprise networks, and telecommunications environments. Manufactured to OM3 standards, this cable supports high-speed data transmission over short to medium distances with low insertion loss and high return loss.

Advantages

This cable offers exceptional signal integrity and durability. The LC/UPC connectors ensure low reflection and stable connections, while the LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. The aqua blue colour makes it easy to identify as a multimode OM3 cable.

Suitable for

• Data center patching and backbone cabling
• Enterprise network infrastructure
• Telecommunications and server rooms
• High-speed 10GbE applications up to 300m
• Any environment requiring low smoke and halogen-free materials

Key specifications

• Cable Type: Optical Fibre Patch Cable
• Fibre Mode: Multimode
• Fibre Class: OM3
• Connector A: LC/UPC
• Connector B: LC/UPC
• Connector Polish: UPC
• Length: 3.00 m
• Jacket Material: LSZH
• Jacket Colour: Aqua Blue
• Core/Cladding: 50/125 µm
• Number of Fibres: 2 (Duplex)
• Maximum Data Rate: 10 Gbps
• Maximum Reach (10GbE): 300 m
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 7.5 mm
• Cable Diameter: 3.0 mm (Duplex Zipcord)
• Attenuation @ 850nm: 3.5 dB/km
• Attenuation @ 1300nm: 1.5 dB/km

Recommendations

For optimal performance, use with OM3-compatible transceivers and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
