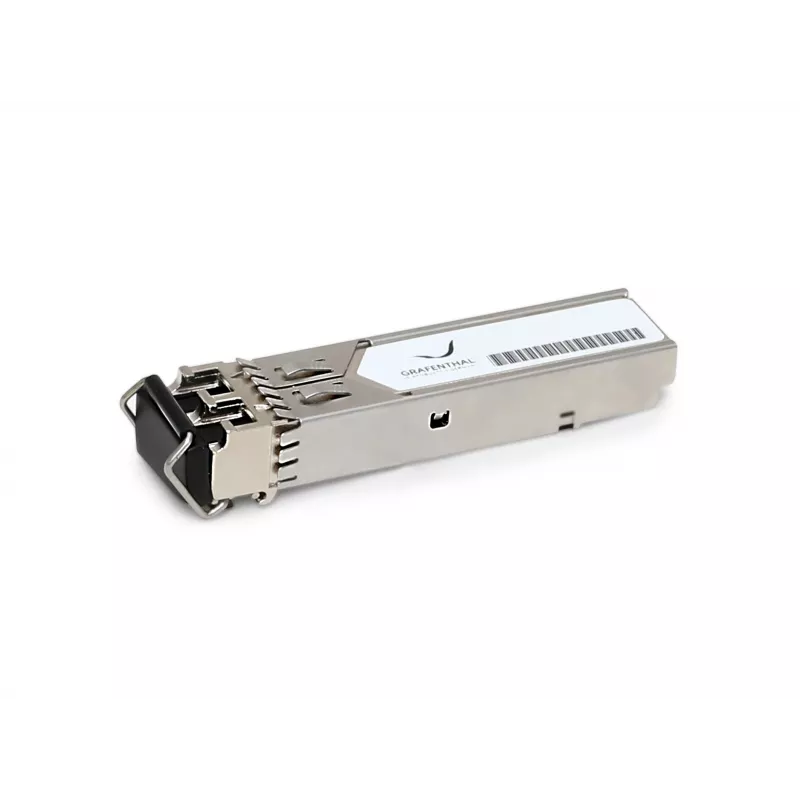

Grafenthal transceptor X130 10G SFP+ LC SR 300M 850NM MMF

The Grafenthal TRANSCEIVER X130 is a high-performance 10 Gigabit Ethernet SFP+ transceiver module designed for short-reach multi-mode fiber connections. It delivers reliable data transmission at 10.3125 Gbps over distances up to 300 meters on OM3 multi-mode fiber, making it ideal for data center and enterprise network deployments.

Advantages

This transceiver offers hot-pluggable SFP+ form factor, low power consumption under 1W, and full Digital Diagnostics Monitoring (DDM) for real-time performance tracking. It is comparable to HP JD092B, ensuring broad compatibility with standard SFP+ ports.

Suitable for

• 10 Gigabit Ethernet connections in data centers
• Enterprise network backbone links
• High-speed storage area networks (SAN)
• Short-reach fiber optic interconnects

Key specifications

• Form Factor: SFP+
• Data Rate: 10.3125 Gbps (10GbE)
• Wavelength: 850 nm
• Max Reach: 300 m (OM3 MMF)
• Fiber Type: Multi-Mode Fiber (MMF)
• Connector: LC Duplex
• Optical Type: SR (Short Reach)
• Interface: Ethernet
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards: IEEE 802.3ae 10GBASE-SR
• Compatibility: Comparable with HP JD092B

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber cables terminated with LC connectors. Ensure your switch or router supports SFP+ modules and 10GBASE-SR standard.
