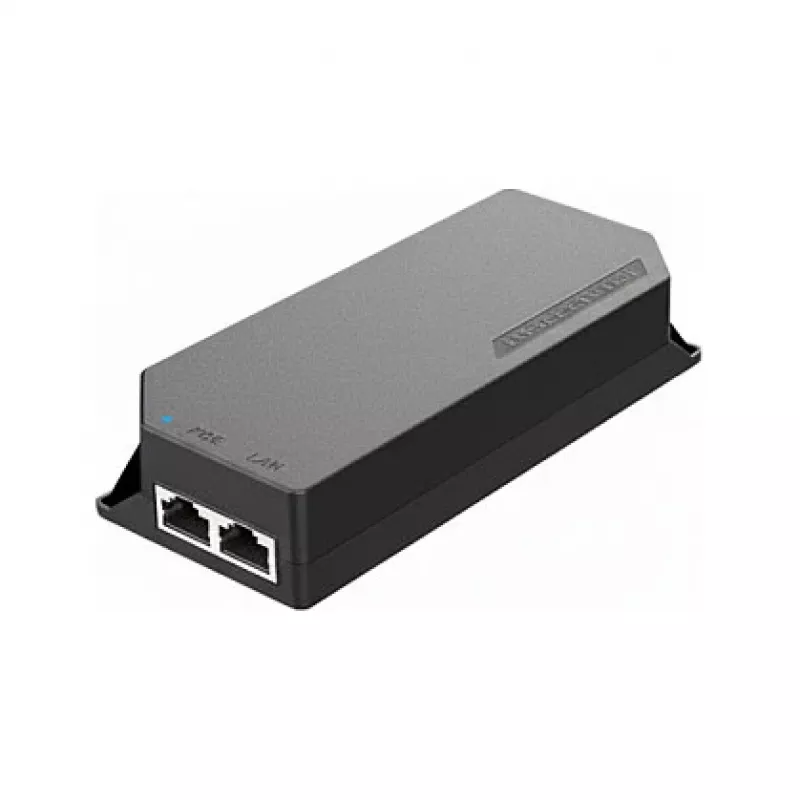

Grandstream GS-POE15W-MG inyector PoE 15W Gigabit Ethernet

The Grandstream GS-POE15W-MG is a high-performance Power over Ethernet (PoE) injector designed to deliver reliable power and data to PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points. Compliant with IEEE 802.3af standard, it provides up to 15.4W of power over Gigabit Ethernet connections, ensuring seamless integration into existing networks.

Advantages

This PoE injector simplifies installation by eliminating the need for separate power cables, reducing clutter and cost. Its compact design supports both desktop and wall-mountable setups, making it ideal for space-constrained environments. With built-in protection features including overload, short-circuit, and over-voltage safeguards, it ensures safe and reliable operation for connected devices.

Suitable for

• Powering IP cameras in surveillance systems
• Supplying VoIP phones in office environments
• Connecting wireless access points for extended coverage
• Any PoE-compatible device requiring up to 15.4W

Key specifications

• PoE Standard: IEEE 802.3af (Active PoE)
• Output Power: 15.4 W
• Input Voltage: AC 100-240 V, 50/60 Hz
• Output Voltage: DC 48 V
• Data Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Ethernet Ports: 2x RJ45 (1x Data In, 1x Data + Power Out)
• Power Pin Assignment: 4/5 (+), 7/8 (-) (Mode A)
• LED Indicators: Power, PoE
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 70°C (14°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Safety Certifications: FCC, CE, UL
• Protection Features: Overload, Short-circuit, Over-voltage
• Mounting: Desktop, Wall-mountable
• Power Consumption (No Load): <1 W

Recommendations

For optimal performance, use with Grandstream GWN series access points or GXV series IP phones. Ensure the connected device is PoE-compatible and does not exceed 15.4W power draw.
