Inversor solar aislado Green Cell 3000W 48V onda senoidal pura con regulador de carga MPPT

Delivering a massive 6000VA surge capacity from a 3000W continuous rating, this Green Cell off-grid inverter turns DC battery power into clean, reliable 230V AC electricity for demanding appliances and tools. The integrated MPPT solar charger maximizes energy harvest from your PV array, making it a cornerstone for off-grid cabins, backup systems, and mobile power solutions.

Overview

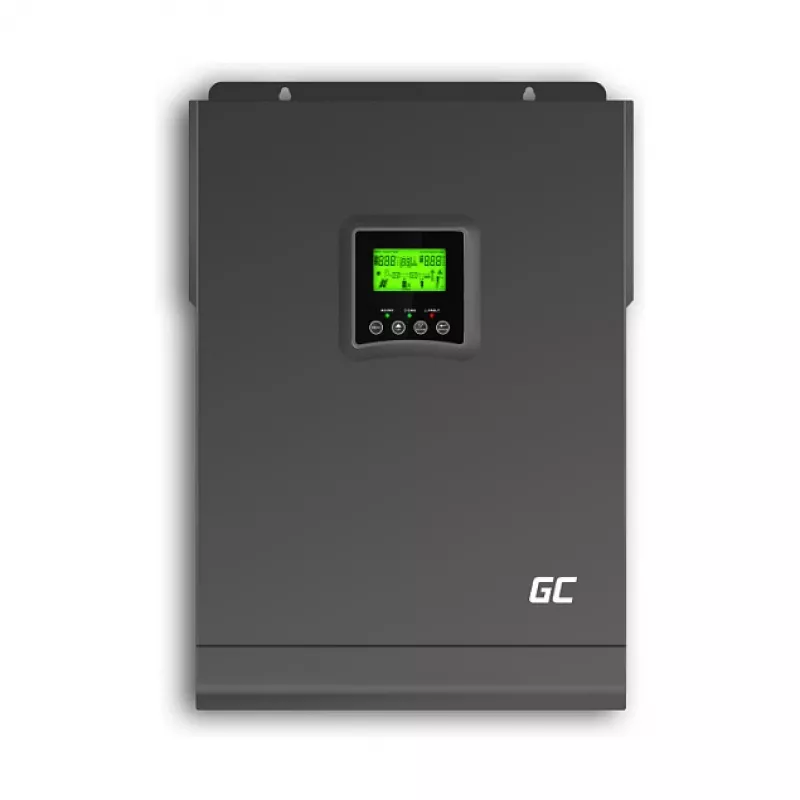

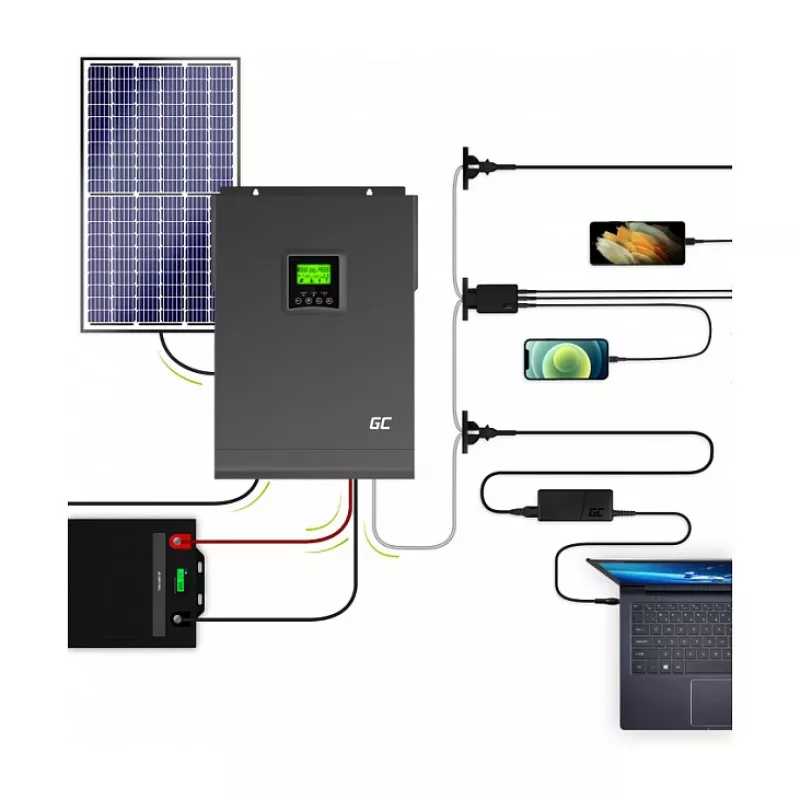

The Green Cell INVSOL04 is a pure sine wave inverter/charger designed for 48V battery systems. It combines a powerful 3000W inverter with an advanced MPPT solar charge controller, enabling seamless integration of solar panels, batteries, and AC loads. Whether you're building a new off-grid installation or upgrading an existing one, this unit provides clean power for sensitive electronics and heavy inductive loads alike.

What stands out

• Pure sine wave output for compatibility with all AC devices
• High surge capacity of 6000VA to start motors and compressors
• MPPT solar charger with up to 80A charging current
• Automatic transfer switch for UPS-like backup operation
• User-configurable battery charging for lead-acid and lithium
• Comprehensive protection against overload, short circuit, and overheating

Technical details

• Rated power: 3000W / 3000VA
• Surge power: 6000VA
• DC input voltage: 48VDC
• AC output voltage: 230VAC
• Output frequency: 50Hz / 60Hz (auto sensing)
• Solar charger type: MPPT
• Max solar charge current: 80A
• Max PV array power: 4000W
• MPPT voltage range: 60-115VDC
• Max PV open circuit voltage: 145VDC
• Max AC charge current: 60A
• Peak efficiency: >93%
• Transfer time: 10ms (UPS mode) / 20ms (appliance mode)
• Communication: USB, RS232

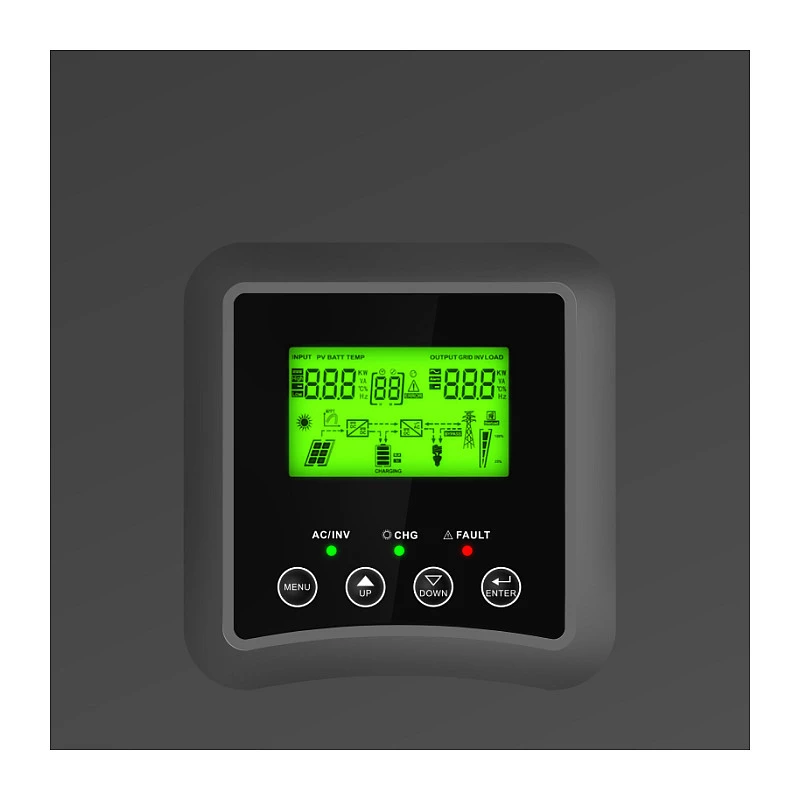

• Display: LCD
• Protection: overload, short circuit, over temperature, over/under voltage, reverse polarity
• Operating temperature: 0°C to 55°C
• Battery compatibility: lead-acid (AGM, Gel, Flooded), lithium (user configurable)

Our verdict

The Green Cell INVSOL04 is a robust and versatile off-grid power solution. Its pure sine wave output and high surge capability make it suitable for a wide range of applications, while the integrated MPPT charger ensures efficient use of solar energy. With comprehensive protection and flexible battery support, this inverter is a reliable choice for anyone seeking independence from the grid.
