Solplanet ASW08kH-T3 Inversor híbrido 8kW trifásico 3 MPPT seccionador DC WLAN/LAN/RS485 compatible con baterías LiFePO4 de alta tensión y generador 10 años de garantía

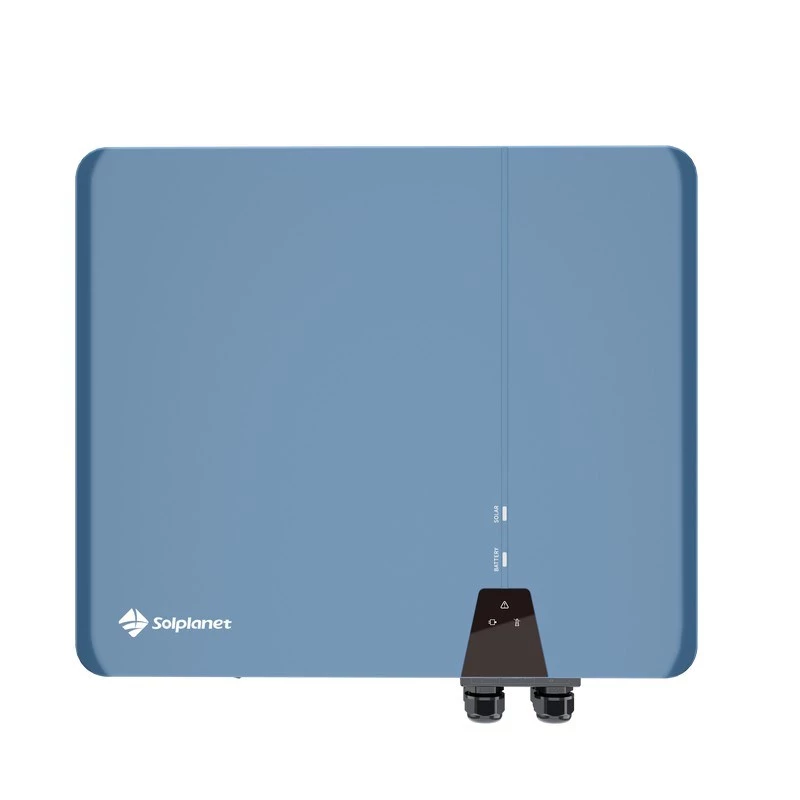

The Solplanet ASW08kH-T3 is a high-performance hybrid inverter designed for residential and commercial solar energy systems. With 8kW rated AC output and 3-phase capability, it efficiently converts solar energy into usable power while supporting high-voltage LiFePO4 batteries and generator backup. This inverter features 3 MPPTs, integrated DC disconnector, and comprehensive communication interfaces including WLAN, LAN, and RS485 for seamless monitoring and control.

Advantages

Maximizes energy harvest with 3 independent MPPTs and a wide MPPT voltage range of 150-850V. Achieves up to 98.2% PV-to-grid efficiency and 97.5% battery-to-grid efficiency. The IP65 protection degree ensures reliable outdoor installation, while natural convection cooling eliminates noise from fans. Backed by a 10-year warranty for long-term peace of mind.

Suitable for

• Residential solar systems with high-voltage battery storage
• Commercial installations requiring 3-phase power
• Backup power systems with generator integration
• Smart home energy management with remote monitoring

Key specifications

• Inverter Type: Hybrid
• Rated AC Output Power: 8 kW
• AC Output Phase: 3-Phase
• Number of MPPTs: 3
• Max. PV Input Power: 12000 W
• Max. DC Input Voltage: 1000 V
• MPPT Voltage Range: 150 - 850 V
• Nominal AC Output Voltage: 230V/400V (3L/N/PE)
• Max. AC Output Current: 12.1 A
• Battery Type: High-voltage LiFePO4
• Battery Voltage Range: 80 - 495 V
• Max. Charge/Discharge Current: 25 A
• Integrated DC Disconnector: Yes
• Communication Interfaces: WLAN, LAN, RS485
• Generator Compatibility: Yes
• Max. Efficiency (PV to Grid): 98.2%
• Max. Efficiency (Battery to Grid): 97.5%
• Protection Degree: IP65
• Cooling Method: Natural Convection
• Warranty: 10 Years

Recommendations

For optimal performance, pair with compatible high-voltage LiFePO4 batteries and ensure proper installation by a certified electrician. Use the Solplanet monitoring app for real-time energy tracking.
