Guía para rack Rittal AX 2394.250 acero 4 uds. 920 g

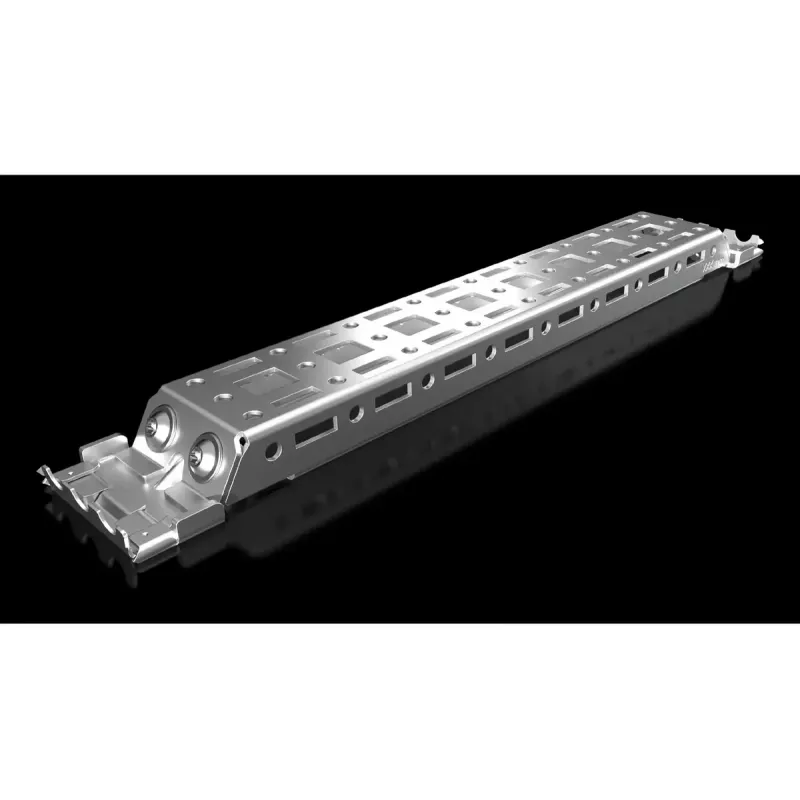

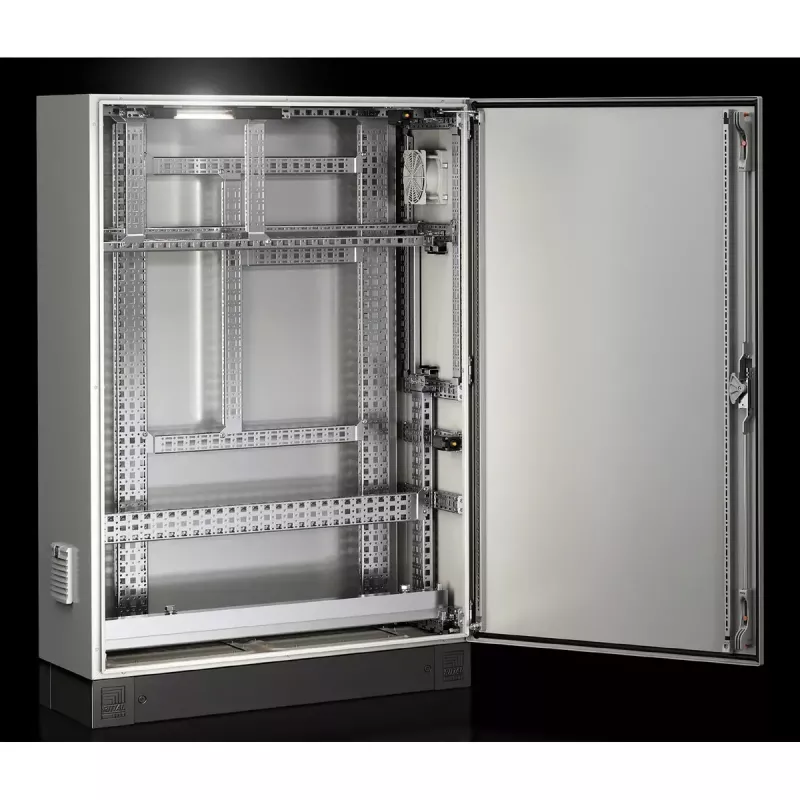

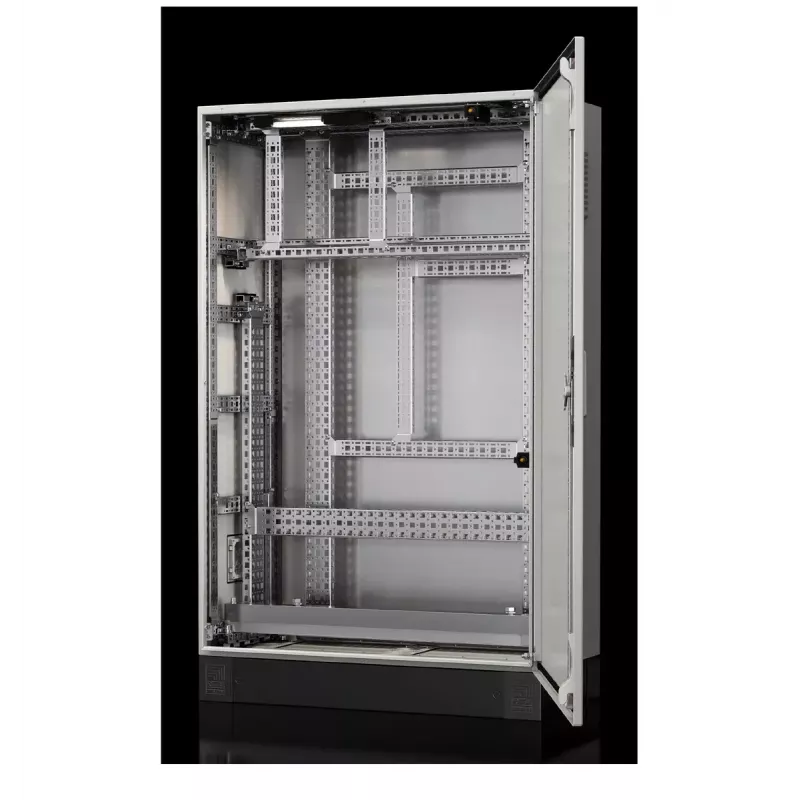

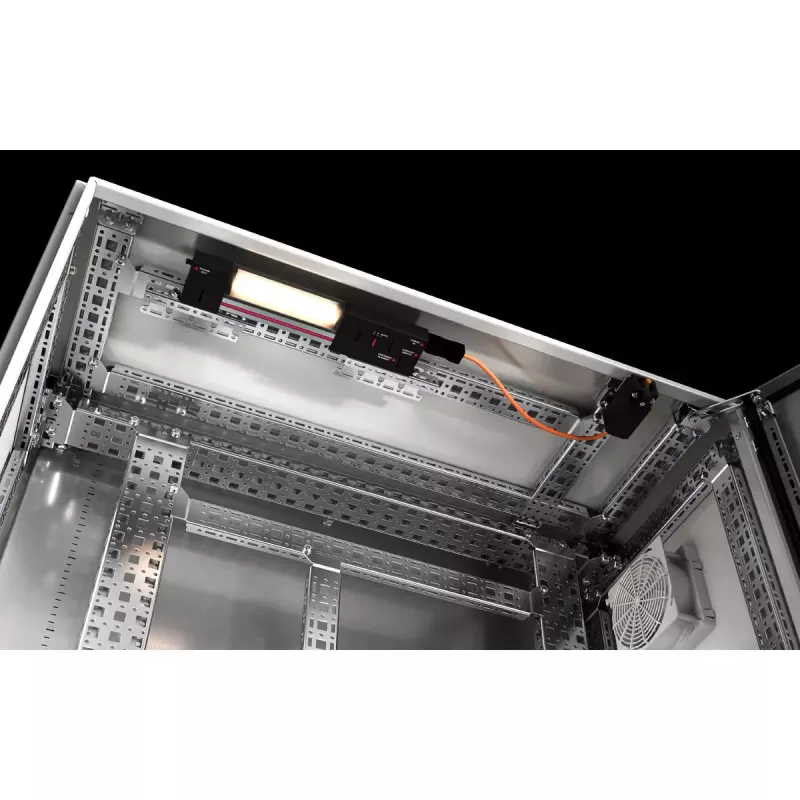

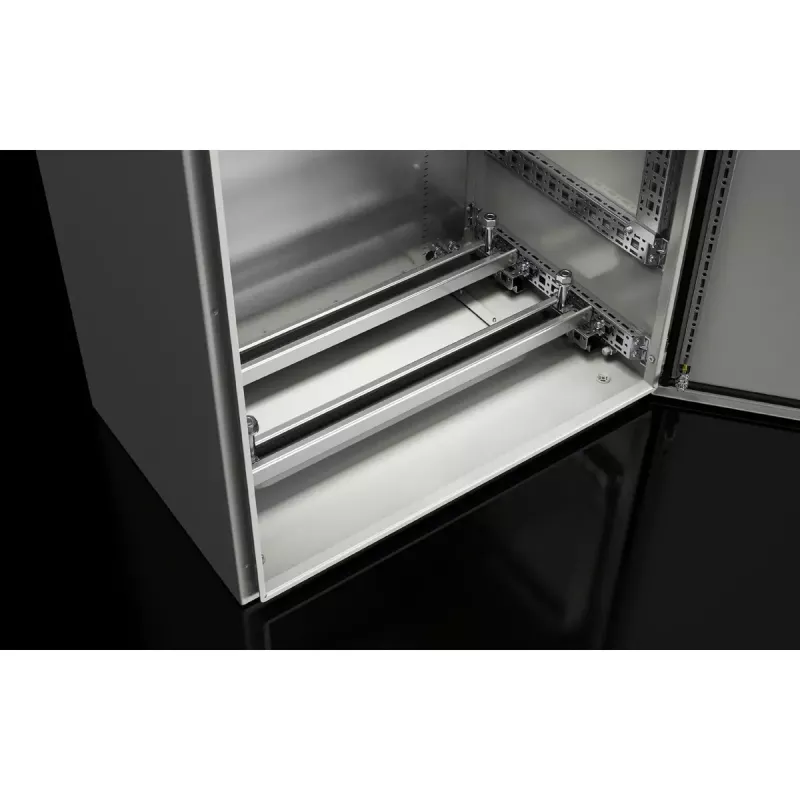

The Rittal AX 2394.250 rack rail is a steel mounting rail supplied as a set of four pieces (total weight 920 g). It is designed for tool-free attachment inside enclosures to create additional mounting space on cabinet sides and roof, allowing secure installation of punched sections with mounting flanges, enclosure lights, switches, cable clamp rails and support rails.

Advantages

Made of durable steel for stable support, the rail set requires no machining for mounting in the enclosure and fits both side and roof positions. The pack of four rails provides multiple attachment points and is compatible with common VX punched sections and accessories for professional cabinet installations.

Suitable for

Key specifications

How to use

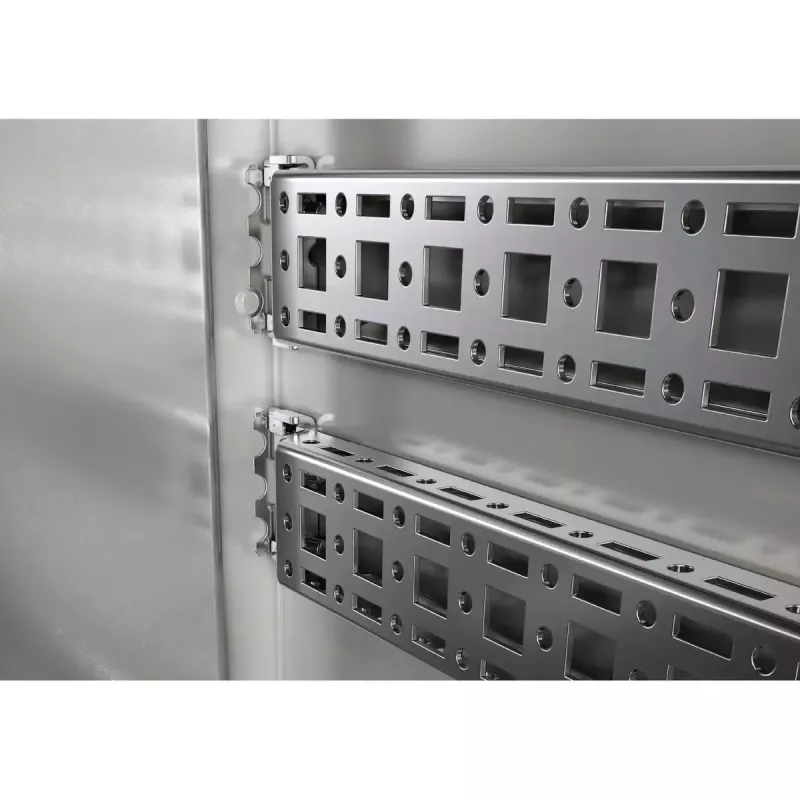

Position the rails on the desired side or roof inside the enclosure and attach them without machining according to the cabinet's existing mounting points. Use the rails to secure VX punched sections, lights, switches or cable management rails by aligning the flange dimensions (23 x 64 mm or 14 x 39 mm) with the rail attachment points. Ensure all fasteners are tightened and that mounted components are properly supported.

Recommendations

For reliable installation, check compatibility of VX punched sections and accessories with the rail flange dimensions and follow the enclosure manufacturer's instructions for load limits and safe mounting practices.
