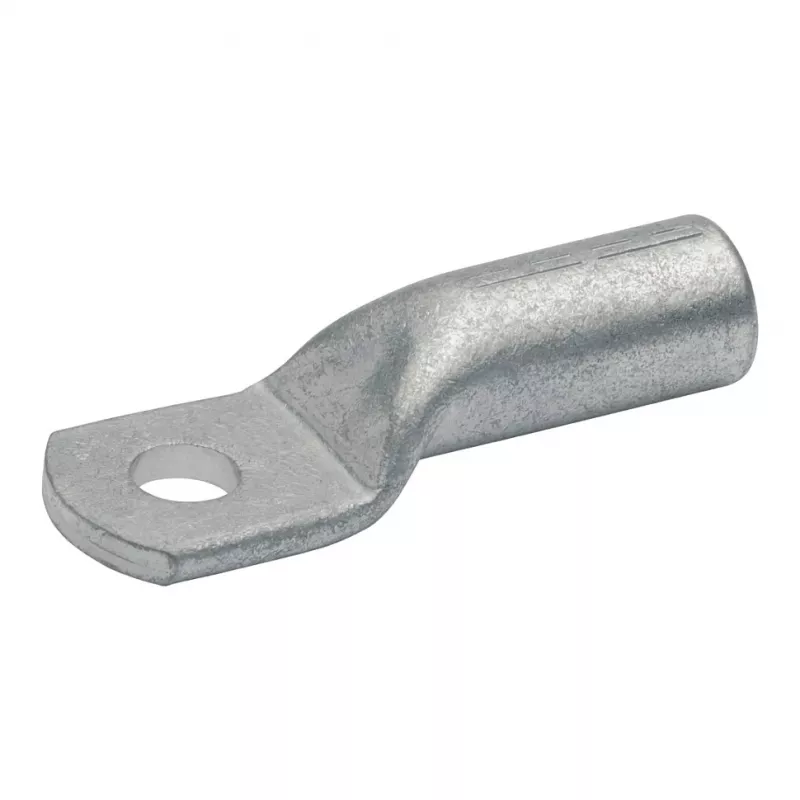

KLAUKE 105R12 Terminal de cable 35mm² M12 estañado galvánicamente DIN 46235

For professionals who demand reliable, low-resistance power connections, the KLAUKE 105R12 crimp cable lug stands apart from generic terminals. Precision-formed from high-conductivity electrolytic copper and finished with a uniform electro-tinned coating, this lug ensures a durable, corrosion-resistant joint that maintains excellent electrical performance even in demanding environments. Its 35 mm² barrel is engineered to accept standard copper conductors, while the M12 stud hole provides a secure, vibration-resistant fit for heavy-duty power distribution and grounding applications. Built to comply with DIN 46235, it delivers the dimensional accuracy and material quality required for industrial and commercial installations.

Highlights

• Electro-tinned surface for superior corrosion protection and low contact resistance
• Manufactured from electrolytic copper (E-Cu) for maximum conductivity
• Designed for 35 mm² copper conductors with a tubular crimp barrel
• M12 bolt hole for secure fastening to busbars, terminals, and equipment
• Conforms to DIN 46235 for consistent dimensions and performance
• Ideal for power distribution, grounding, and high-current connections

In daily use

Installing the 105R12 is straightforward with a standard crimping tool sized for 35 mm² lugs. The tubular barrel provides a full, even compression around the conductor, creating a gas-tight connection that resists oxidation and loosening over time. The tinned finish not only protects against environmental corrosion but also ensures low contact resistance at the connection point, making it a dependable choice for switchgear, control panels, and heavy machinery.

Full specifications

• Product Type: Crimp Cable Lug
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Electro-tinned (Galvanically Tinned)
• Cable Cross-Section: 35 mm²
• Bolt Hole Diameter: 12 mm (M12)
• Standard Compliance: DIN 46235
• Conductor Compatibility: Copper Conductors
• Connection Method: Crimp (Compression)
• Terminal Type: Ring Terminal
• Corrosion Protection: Yes
• Barrel Design: Tubular
• Color: Metallic Silver

Final note

Choose the KLAUKE 105R12 for a durable, high-performance connection in demanding electrical installations.
