Intercable ICR508 Terminal tubular 50 mm² M8 estañado serie R

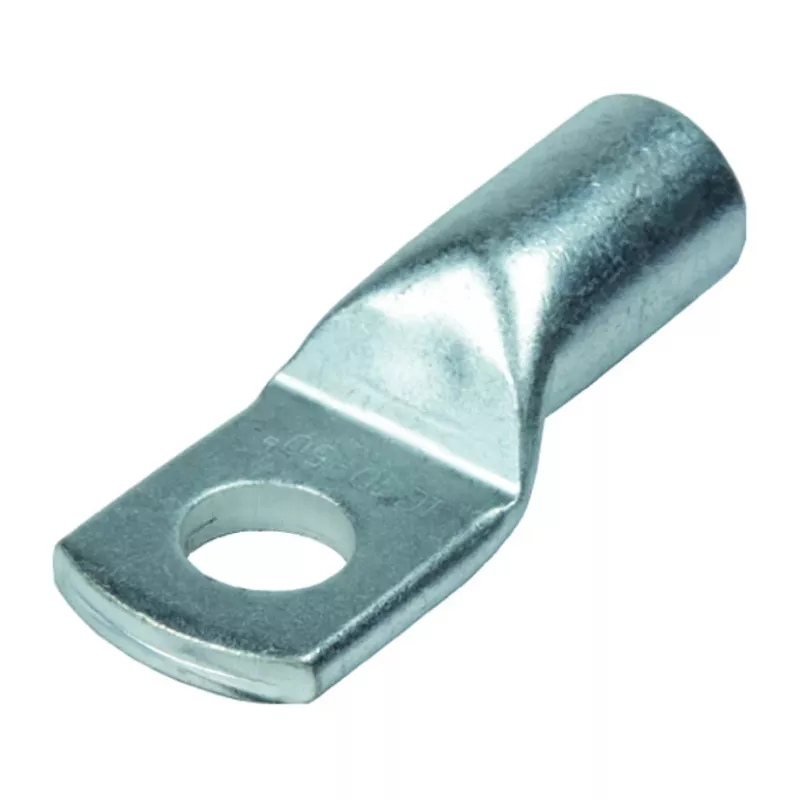

Tubular cable lug engineered for secure, low-resistance terminations on 50 mm² copper conductors. The ICR508 crimp lug from Intercable's R-Series delivers a gas-tight connection that withstands vibration and thermal cycling, making it a dependable choice for demanding electrical installations.

Advantages

Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, this lug offers excellent conductivity and corrosion resistance. The DIN 46235 compliant design ensures compatibility with standard crimping tools and reliable performance in industrial environments. Its one-hole palm with M8 bolt hole simplifies installation on busbars, contactors, and circuit breakers.

Suitable for

• Fine-stranded and multi-stranded copper conductors up to 50 mm²
• Power distribution systems, switchgear, and control panels
• Applications requiring a durable, tinned connection in harsh conditions
• Professional electricians and panel builders following DIN standards

Key specifications

• Conductor cross-section: 50 mm²
• Bolt hole: M8 (8.4 mm diameter)
• Material: Electrolytic copper, tin-plated
• Standard: DIN 46235
• Total length: 45 mm, palm width: 17 mm, palm thickness: 2.8 mm
• Barrel inner diameter: 10.5 mm, outer diameter: 13.5 mm
• Operating temperature: -50°C to +120°C
• RoHS compliant

Recommendations

For best results, use a hexagonal crimping die matched to the barrel size. Inspect the crimp for full compression and verify pull-out strength before energizing. Pair with heat-shrink tubing for added insulation if required.
