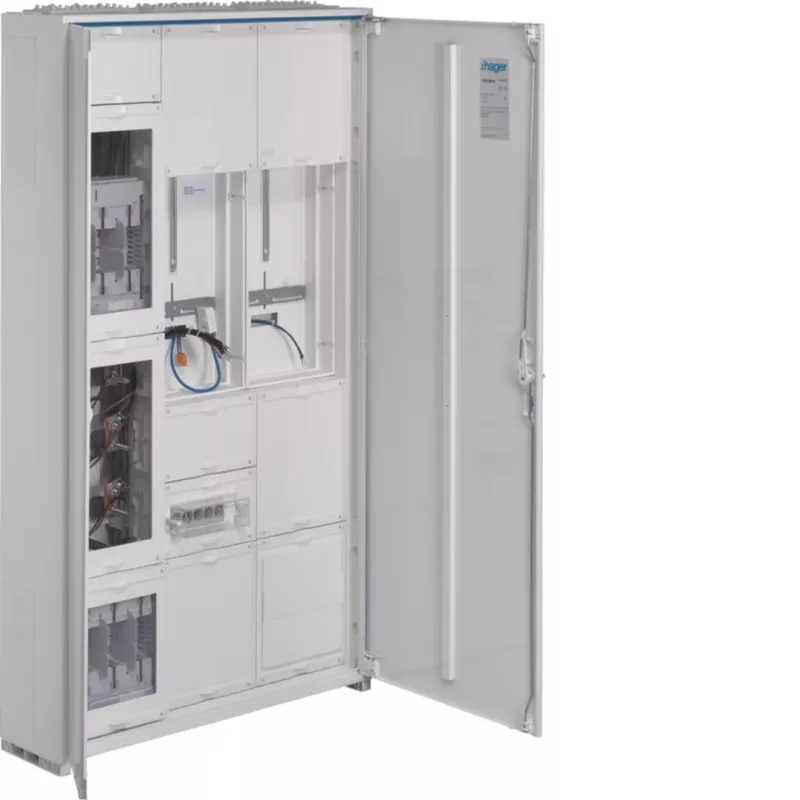

Hager armario de contador de montaje en pared FP93W7N Universal.N NAR NH2-Su 1400x800x205mm

Wall-mounted metering and distribution cabinet engineered for universal.N applications, delivering robust energy distribution with a 250 A rated current and integrated NH2-Su main switch. Its grid connection compartment (NAR) and spacious interior accommodate modern metering systems while ensuring straightforward installation and maintenance.

Advantages

The cabinet features a double door for convenient access and a pure white RAL 9010 finish that maintains a clean, professional appearance. With an IP44 protection class, it safeguards against dust and splashing water, making it suitable for demanding environments. The integrated 5-pole busbar system and dedicated wiring space simplify installation and reduce setup time. A standard lock with double-bit key provides secure access.

Suitable for

• Metering and distribution in residential and commercial buildings
• Universal.N applications requiring up to 250 A rated current
• Grid connection compartments (NAR) with NH2-Su main switches
• eHZ and conventional meter mounting

Key specifications

• Mounting Type: Wall-mounted (surface-mounted)
• Cabinet Type: Metering and Distribution Cabinet
• Application: Universal.N, Grid Connection Compartment (NAR), Main Switch NH2-Su
• Number of Meter Fields: 3
• Number of Distribution Fields: 1
• Main Switch Type: NH fuse switch disconnector size 2 (NH2-Su)
• Rated Current (In): Up to 250 A
• Rated Voltage (Un): 230/400 V AC
• Protection Class (IP): IP44
• Material: Sheet steel
• Color: Pure white (RAL 9010)
• Door Type: Double door
• Lock Type: Standard lock with double-bit key
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Busbar System: 5-pole
• Cable Entry: Top, Bottom, Side (via flange plates)
• Meter Mounting: Suitable for eHZ and conventional meters
• Wiring Space: Integrated wiring space
• Number of Rows (Distribution Field): 5
• Module Units per Row (Distribution Field): 12 TE

Recommendations

Ideal for electricians and panel builders seeking a reliable, pre-configured metering cabinet that meets VDE-AR-N 4100 requirements. Pair with Hager NH2 fuse links and compatible eHZ meters for a complete, code-compliant installation.
