Hager BR6510019011 parte inferior de canaleta de cables Tehalit BR, PVC, negro grafito, 80 mm, bloqueo frontal, 2 m

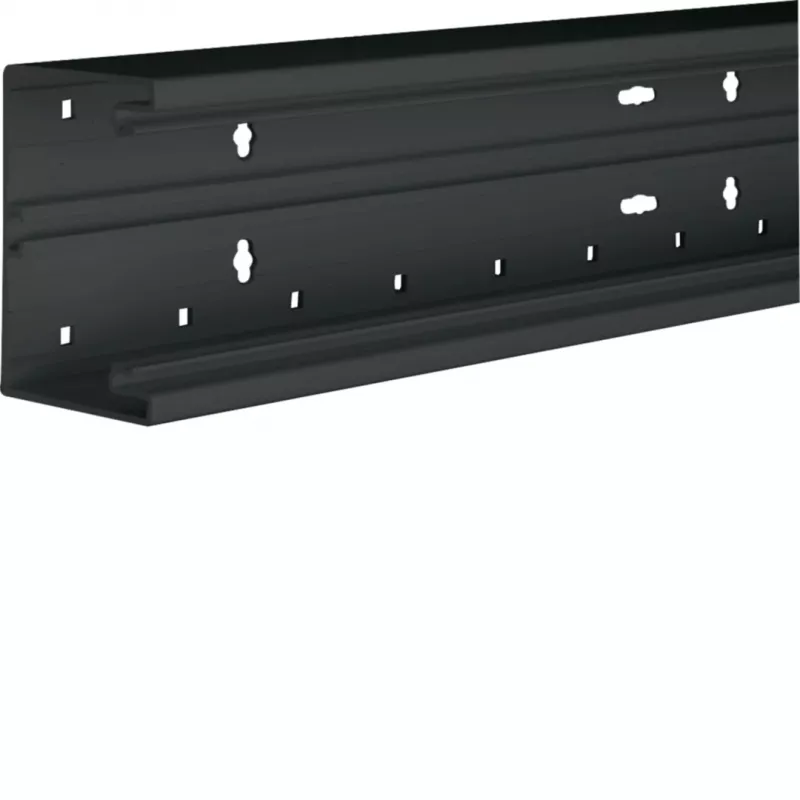

Cable trunking base part from the Hager Tehalit BR series, made of PVC in graphite black (RAL 9011). This front-locking base profile is designed for secure cable routing and protection in electrical installations, with a system width of 100 mm and a height of 65 mm. The 2-meter length provides ample coverage for linear runs, while the single compartment base accepts compatible Tehalit BR covers and accessories.

Advantages

The front-locking mechanism allows quick and secure cover attachment without tools, simplifying installation and maintenance. The PVC material offers self-extinguishing properties and resistance to temperatures from -5°C to +60°C, ensuring reliable performance in typical indoor environments.

Suitable for

• Routing and protecting cables in commercial and residential electrical installations
• Use with Tehalit BR series covers and accessories
• Surface mounting on walls or ceilings where a robust trunking base is required

Key specifications

• Material: PVC
• Colour: Graphite black (RAL 9011)
• System width: 100 mm
• System height: 65 mm
• Length: 2000 mm
• Number of compartments: 1
• Mounting type: Front-locking
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature resistance: -5°C to +60°C

Recommendations

Pair with Hager Tehalit BR covers and end caps for a complete, professional cable management solution.
