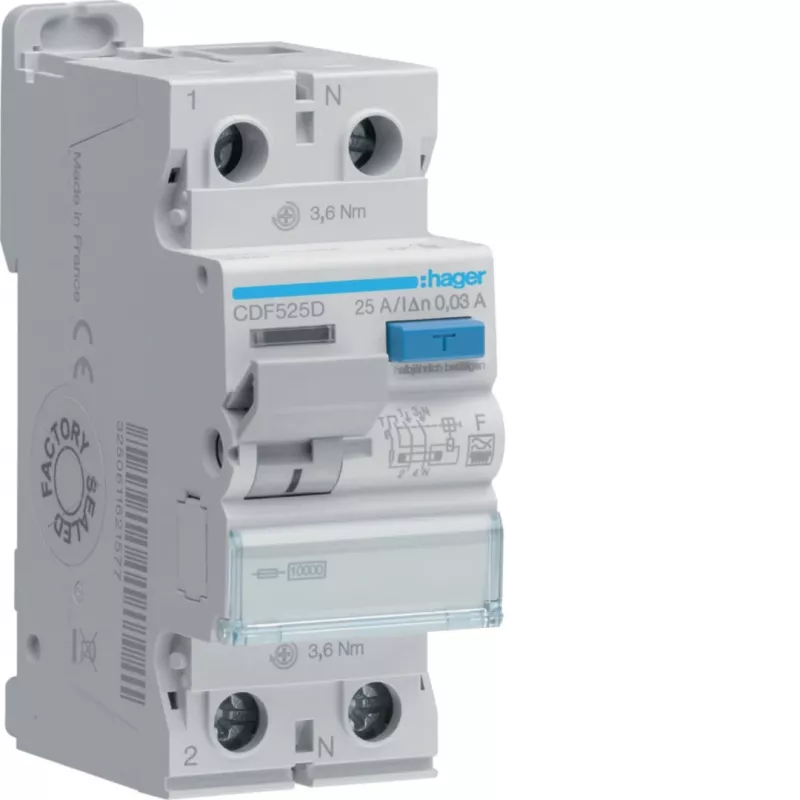

HAGER CDF525D Interruptor diferencial 2P 10kA 25A 30mA Tipo F

The HAGER CDF525D is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against earth faults. With 2 poles, a rated current of 25 A, and a rated residual operating current of 30 mA, it ensures safety in residential and commercial electrical installations. Type F sensitivity provides protection for circuits with frequency converters and other electronic loads.

Advantages

Compact 2-module design saves space on DIN rail. High short-circuit breaking capacity of 10 kA ensures robust performance. Complies with EN 61008-1 and IEC 61008-1 standards for peace of mind.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Circuits with frequency converters or electronic loads requiring Type F RCD

Key specifications

• Device Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2P
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• RCD Type: Type F
• Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Voltage (Ue): 230 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 2 Modules (35 mm)
• Degree of Protection (Terminals): IP20
• Degree of Protection (Device in Enclosure): IP40
• Operating Temperature: -25 to 40 °C
• Connection Capacity (Rigid): 1 to 25 mm²
• Connection Capacity (Flexible): 1 to 16 mm²
• Mechanical Endurance: 20000 cycles
• Electrical Endurance: 2000 cycles
• Standards: EN 61008-1, IEC 61008-1

Recommendations

For optimal safety, always install RCCBs in accordance with local electrical regulations. This device is suitable for use in TN, TT, and IT systems.
