ROPAM AT-GSM-MAG 2.5DB antena con base magnética SMA

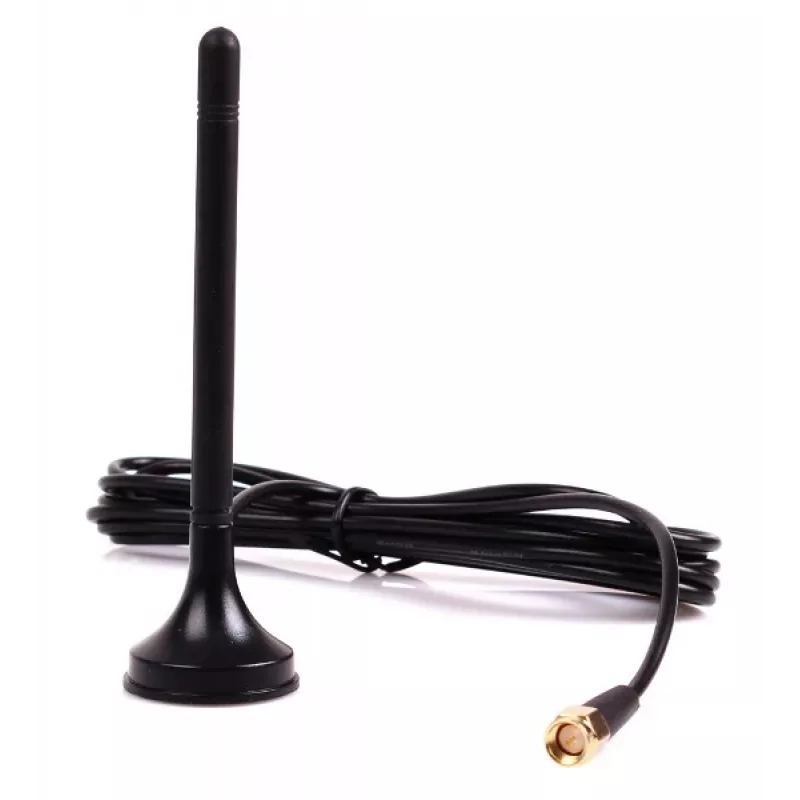

The ROPAM AT-GSM-MAG is a high-performance magnetic mount antenna designed for reliable 2G/3G/4G connectivity. With a gain of 2.5 dBi and wide frequency coverage, it ensures stable signal reception for modems, routers, and IoT devices. The robust magnetic base allows easy installation on metal surfaces, making it ideal for both indoor and outdoor use.

Advantages

This antenna offers excellent signal strength and durability. Its magnetic mount provides quick and secure attachment, while the 3-meter RG174 cable offers flexible placement. The antenna supports multiple cellular technologies, ensuring compatibility with various devices.

Suitable for

• Modems and routers requiring external antenna
• Monitoring systems and IoT devices
• Vehicles and mobile installations
• Indoor and outdoor applications

Key specifications

• Antenna Type: Magnetic Mount
• Frequency Range: 850-960 MHz / 1710-2170 MHz
• Gain: 2.5 dBi
• Connector: SMA Male
• Cable: RG174, 3 meters
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Vertical
• Supported Technologies: GSM, GPRS, EDGE, UMTS, HSDPA, HSUPA, LTE (2G/3G/4G)
• Mounting: Magnetic Base
• Operating Temperature: -40°C to +85°C
• Antenna Height: 300 mm
• Base Diameter: 30 mm
• Color: Black

Recommendations

For optimal performance, mount the antenna on a clean, flat metal surface. Ensure the cable is securely connected to the device. This antenna is a reliable choice for enhancing cellular signal in various environments.
