HAGER cuadro de distribución empotrable con puerta metálica, 2 filas, 26 módulos, blanco (RAL 9003)

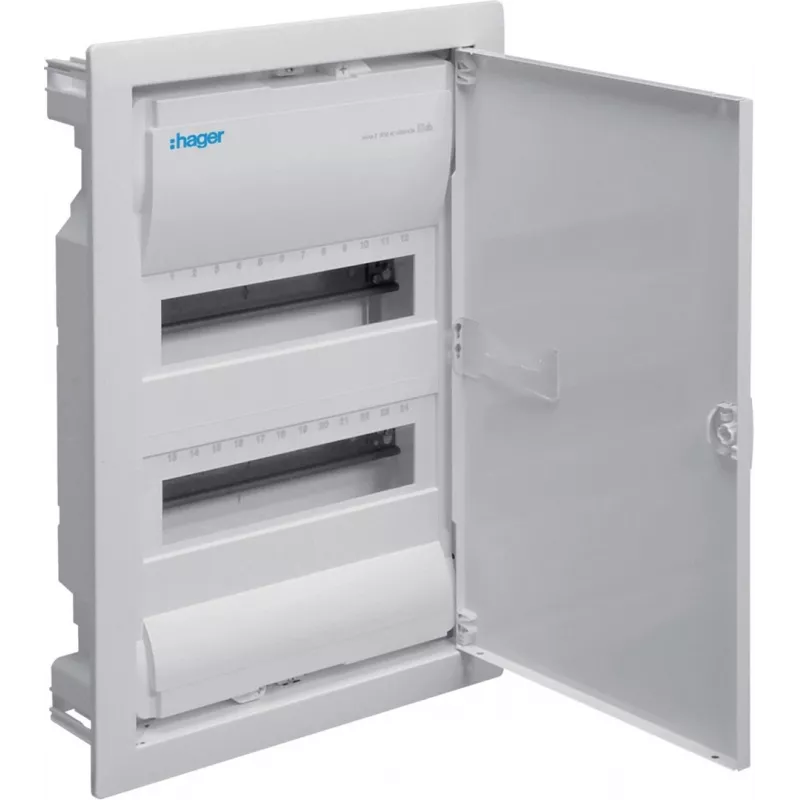

The HAGER VU24AT is a high-quality flush-mounted cabinet designed for electrical distribution and modular device installation. Featuring a robust metal door and a technoplastic enclosure, this cabinet offers reliable protection and easy access for maintenance. With 2 rows and a total capacity of 26 modules (13 per row), it provides ample space for organizing electrical components. The cabinet is finished in white (RAL 9003) and complies with international standards, making it suitable for residential and commercial applications.

Advantages

This flush-mounted cabinet combines durability with functionality. The metal door ensures security and longevity, while the reversible door design allows for flexible installation. The integrated earth and neutral terminal blocks simplify wiring, and the IP40 rating protects against dust and splashes. The cabinet's glow wire resistance of 650°C enhances safety, and its operating temperature range of -25 to 60°C ensures performance in various environments.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Modular device housing (e.g., circuit breakers, RCDs)
• Flush-mounted applications in walls

Key specifications

• Mounting Type: Flush-mounted
• Number of Rows: 2
• Total Modules: 26 (13 per row)
• Door Type: Metal
• Enclosure Material: Technoplastic
• Door Material: Steel
• Colour: White (RAL 9003)
• IP Protection Rating: IP40
• IK Protection Rating: IK07
• Rated Current: 63 A
• Terminal Blocks: 1 Earth, 1 Neutral
• Earth Terminal Capacity: 1 x 25 mm² + 10 x 16 mm²
• Neutral Terminal Capacity: 1 x 25 mm² + 10 x 16 mm²
• Standards: IEC 60670-24, IEC 61439-3
• Reversible Door: Yes
• Glow Wire Resistance: 650 °C
• Operating Temperature: -25 to 60 °C
• Number of Cut-outs: 2 (for modular devices)

Recommendations

For optimal installation, ensure the wall cut-out matches the cabinet dimensions. Use appropriate cable glands for entry points. This cabinet is ideal for new constructions or renovations requiring a flush-mounted solution.
