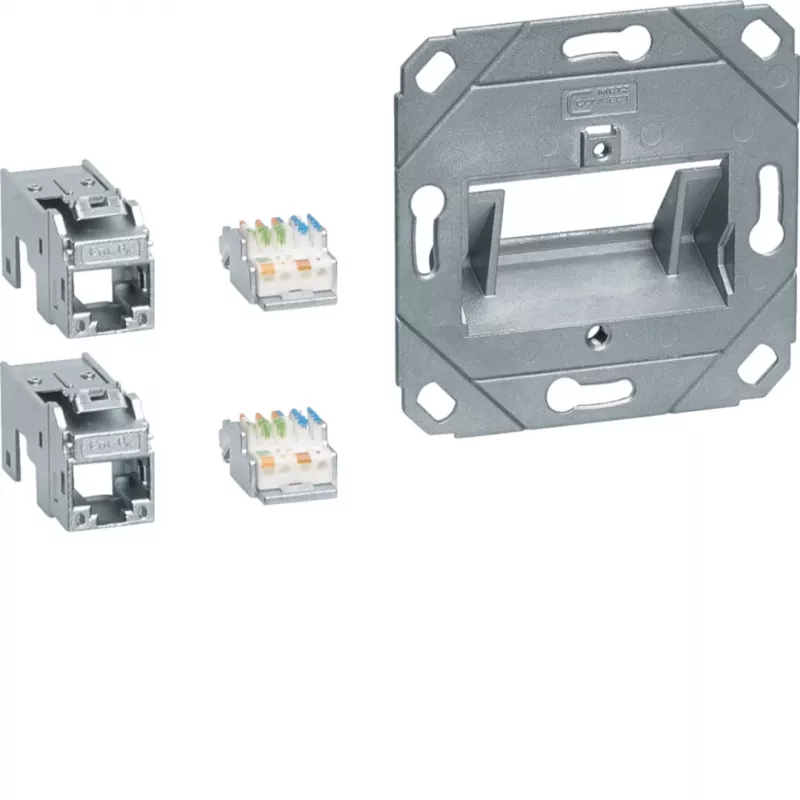

Hager GMKSRJ45C6A2 módulo de conexión 2x RJ45 Cat.6a para placa central UAE 2 tomas libre de halógenos

The Hager GMKSRJ45C6A2 is a high-performance RJ45 connection module designed for structured cabling in data networks. It features two shielded Cat.6a ports, supporting transmission speeds up to 10 Gigabit Ethernet and a frequency bandwidth of 500 MHz. This module is halogen-free and compatible with UAE 2-fold central plates, making it ideal for flush-mounted installations in wall outlets.

Advantages

Reliable and future-proof connectivity for high-speed networks. The shielded design minimizes electromagnetic interference, ensuring stable data transmission. Halogen-free materials enhance safety in case of fire. Easy termination via LSA (Insulation Displacement Connector) saves installation time.

Suitable for

• Data network cabling in commercial and residential buildings
• 10GBASE-T Ethernet applications
• Power over Ethernet (PoE, PoE+, 4PPoE) devices
• Integration with UAE central plates for a clean finish

Key specifications

• Product Type: RJ45 Connection Module
• Number of Ports: 2
• Connector Type: RJ45
• Network Category: Cat.6a (Category 6a)
• Shielding: Shielded (STP/FTP)
• Transmission Speed: Up to 10 Gbit/s
• Frequency Bandwidth: Up to 500 MHz
• Termination Method: LSA (IDC)
• Mounting Compatibility: UAE 2-fold central plates
• Halogen-Free: Yes
• PoE Support: Yes (PoE, PoE+, 4PPoE)
• Installation Type: Flush-mounted / Wall outlet
• Housing Material: Plastic
• Color: White
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Wiring Scheme: T568A / T568B
• Contact Material: Gold-plated

Recommendations

For optimal performance, use with Cat.6a shielded patch cables and ensure proper grounding. This module is suitable for high-density data centers and enterprise networks requiring reliable 10G connectivity.
