HAGER GS20119016 Toma de corriente 2 tomas 45° invertida con bloqueo frontal, gris

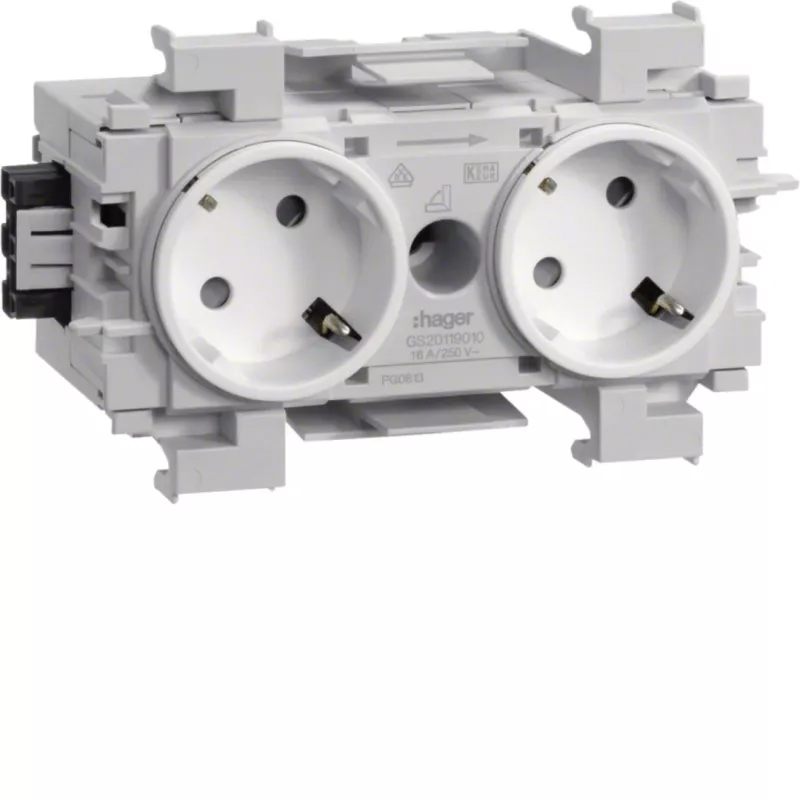

This HAGER socket outlet stands out with its 45° inverted orientation and front-latching mechanism, designed for secure and convenient installation in modular distribution boards. Unlike standard straight sockets, the angled design improves cable routing and accessibility in confined spaces.

Highlights

• Two Schuko sockets in a compact 4-module DIN rail unit
• 45° angled, inverted orientation for optimal cable management
• Front-latching mechanism ensures a firm and reliable fit
• Robust thermoplastic construction in light grey (RAL 7035)

In daily use

Ideal for installation in distribution boards and enclosures, this outlet provides a convenient power source for maintenance and temporary equipment. The screw terminals accommodate both rigid and flexible conductors, ensuring a secure connection. Rated at 16 A and 250 V AC, it handles typical loads with ease.

Full specifications

• Number of sockets: 2
• Socket type: Schuko (Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (top-hat rail)
• Number of modules: 4 TE
• Connection type: screw terminal
• Socket orientation: 45° angled, inverted
• Front locking mechanism: yes
• Colour: grey (RAL 7035)
• Protection degree: IP20
• Terminal capacity (flexible): 1.5 - 4 mm²
• Terminal capacity (rigid): 1.5 - 6 mm²
• Operating temperature: -5 to 40 °C
• Storage temperature: -25 to 70 °C
• Material: thermoplastic
• Application: modular distribution boards

Final note

A practical and durable power solution for professional electrical installations, combining angled design with reliable front-latching mounting.
