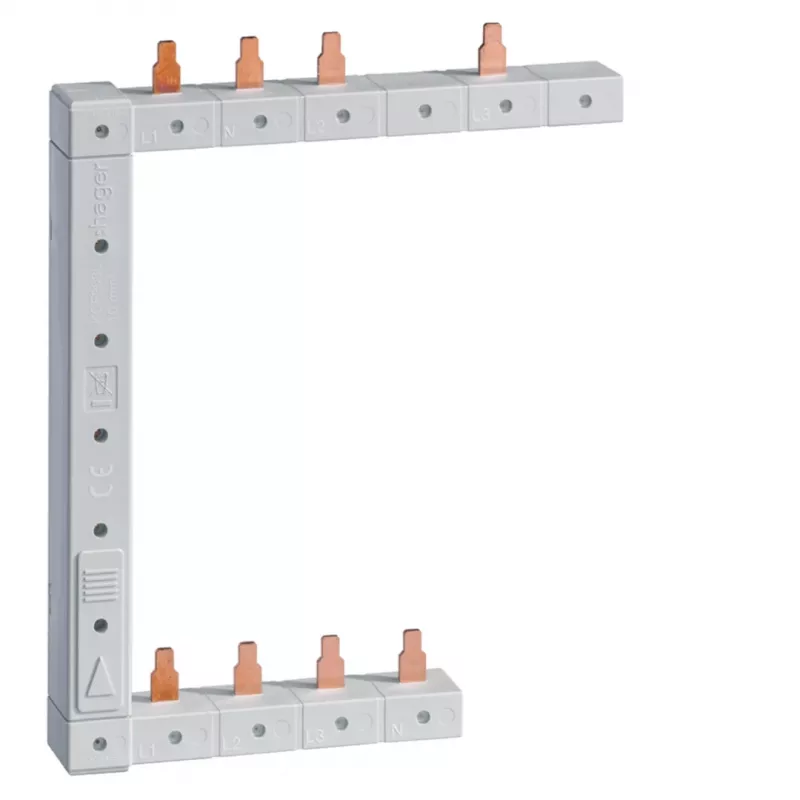

HAGER KCF963L barra de fases vertical izquierda, 2 filas, 63 A, 12 módulos, tipo pin

In residential and commercial distribution boards, electricians use the HAGER KCF963L to distribute the L1 phase across two rows of modular devices. This vertical left busbar connects MCBs, RCDs, and other DIN rail components with pin-type contacts, providing a reliable and space-efficient power distribution solution.

Key specifications

• Busbar type: Phase busbar (L1)
• Number of poles: 1-pole
• Number of rows: 2-row
• Mounting position: Vertical, left
• Number of modules: 12 TE
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Conductor cross-section: 10 mm²
• Module pitch: 18 mm
• Connection type: Pin type
• Insulation: Fully insulated
• Material: Copper
• Colour: Grey

Why choose it

The KCF963L simplifies wiring by providing a compact, fully insulated busbar that fits directly onto standard 35 mm DIN rails. Its pin-type connections ensure secure contact with compatible modular devices, reducing installation time and improving reliability.

Ideal use cases

• Distribution boards in residential buildings
• Commercial electrical panels
• Industrial control cabinets
• Retrofit and new installations requiring phase distribution

Good to know

The busbar is designed for use with HAGER modular devices and compatible products with pin-type terminals. It operates within a temperature range of -25 to +70 °C and has a degree of protection IP20 when installed.
